WB-EZxxxx35B
Model: | WB-EZxxxx35B |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Certificate: | CE, ISO, ROHS,SGS |
Export Area: | Europe, America,Middle east |
Max Static Loading: | 300-500 KGS |
Package: | assembled or dis-assembled |
Thickness:: | mounting profile 1.8mm, others 1.0 to 1.2mm |
Materials: | SPCC cold rolled steel or EG steel |
Fans: | 2 or 4 |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
---|---|---|---|
Unit Price: | 1.0 USD | Production Capacity: | 3000 units per month |
Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | cartons or wooden case |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 35 days |
MOQ: | 10 Piece/Pieces | Means of Transport: | Land, Ocean, Air |
Light duty 19" glass door data cabinet with orange color strip
Features
WB-EZxxxx35B
cabinet is a standardized enclosure for mounting data and
telecommunication devices and their distribution systems.
19" rack mountable, Light duty structure - possible of max the load capacity up to 500KG.
Front & back door earthing.
Widely used for scurity and telecom field devices.
Doors
Front glass door with ARC vented door frame and rubber strip - swing handle lock.

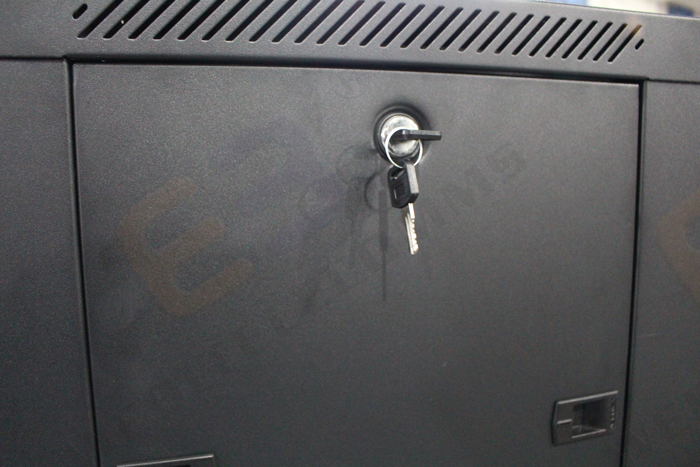

Back solid metal door with small cylinder lock.
Removable side panel , optional lock.
Accessories
Fan fixed to cabinet top directly (2 or 4 )
4× position-adjustable 19 " mounting rail.
300KG capacity wheels and adjustable feet.
20 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 400×50mm rectangle cable entrance
Bottom - 4* 350×50mm rectangle cable entrance
Can ask for more...
Package
Disassembled packing save 60% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:1.8mm,others: 1.00mm to 1.20mm
Cabinet Bearing capacity: 300-500KG
IP degree: IP-20
Body color:RAL9004(black);RAL7035(grey),etc
SAMPLE order available.
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.2mm SPCC steel | Powder coating | |
2 | Front Door | 1 | 1 | 1.0mm SPCC steel | \ | ARC border |
3 | Side Panel | 2 | 2 | 1.0mm SPCC steel | Powder coating | Removable |
4 | Back Door | 1 | 1 | 1.0mm SPCC steel | Powder coating | |
5 | Lock | 1 | 1 | Zinc alloy | \ | Handle Lock |
6 | Top cover | 1 | 1 | 1.0mm SPCC steel | Powder coating | |
7 | Cylinder lock | 1 | 1 | Zinc alloy | \ | |
8 | AC Fans | 2 or 4 | 4 | 12038 series | \ | |
9 | Bottom panel | 1 | 1 | SPCC T=1.0 | Powder coating | Optional parts |
10 | Earthing cable | 1 | 1 | Y/G cable | \ | 25 cm |
11 | Castors tray | 4 | 4 | SPCC T=2.0 | Powder coating | |
12 | Castors | 4 | 4 | \ | \ | |
13 | Ajustable feet | 4 | 4 | Steel | Brass plated | M12 |
14 | Mounting angle | 2 | 2 | SPCC T=1.2 | Powder coating | |
15 | 19inch rails | 4 | 4 | SPCC T=1.8 | Powder coating | |
16 | Vertical C/M | \ | 2 | SPCC T=1.2 | Powder coating | Only for 800 W |
-Accessories matching-:
PDU | - eg. 6-way country-spec series PDU |
Patch panels | - eg. 24-port Cat6 UTP patch panel |
Shelves | -eg. 3 x fixed shelf [ as per Depth ] |
Cable managers | -eg. 5-ring cable management |
KVM switch | -eg. 8-port VGA 17" KVM |
Others | etc.. |
SAMPLE Show____600*600 27U

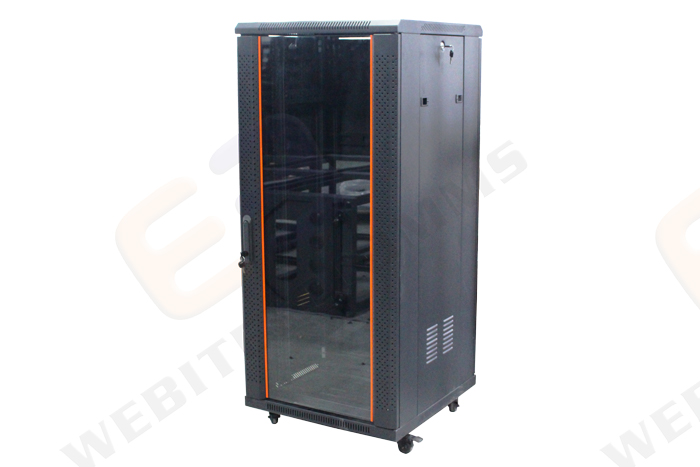

Front view

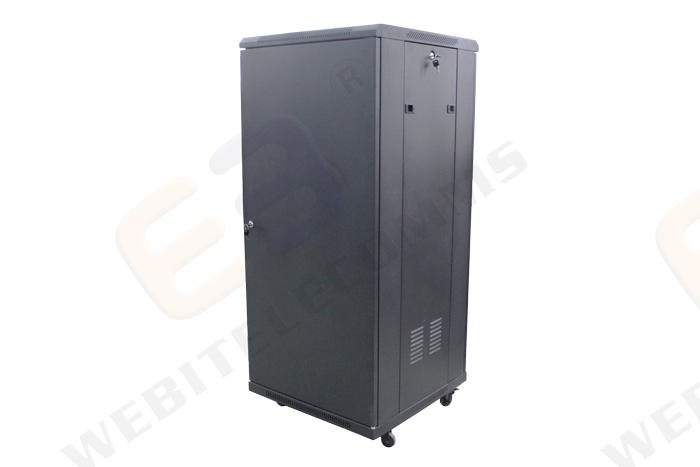

Back view

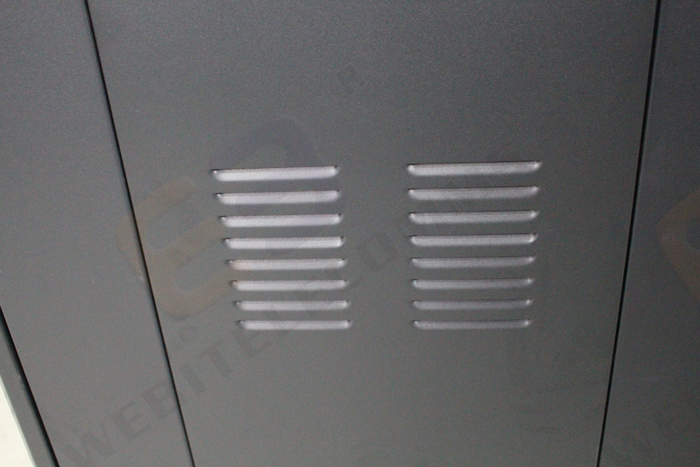

Side view

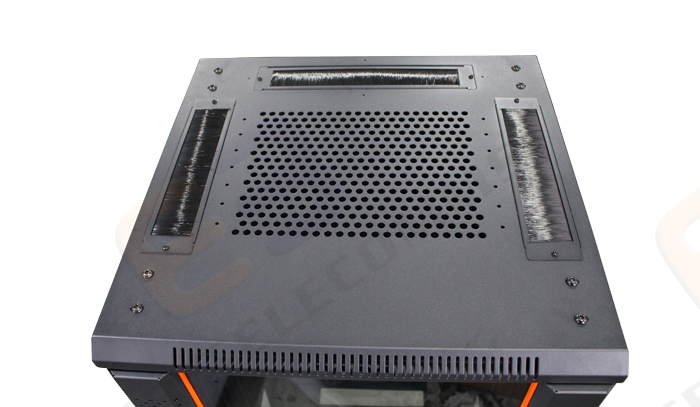

Top brush entrance
Mounting rail

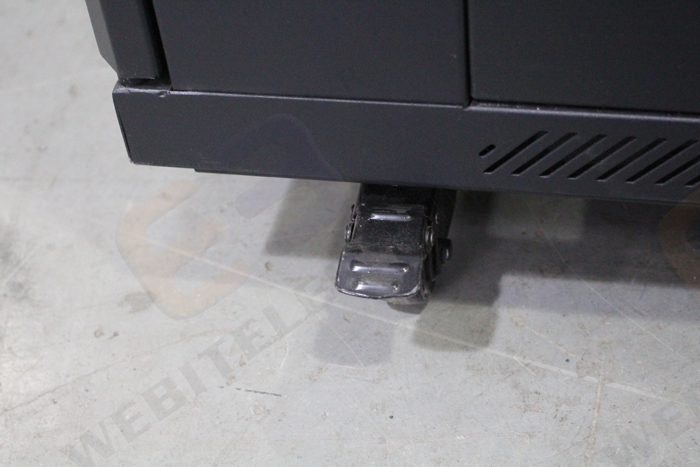

Castors
=Webtielecomms packing=
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
600 wide
Model | W(mm) | D (mm) | H(mm) | U | CBM (m3) |
WB-EZ-661835B | 600 | 600 | 992 | 18U | 0.4957 |
WB-EZ-681835B | 800 | 0.6415 | |||
WB-EZ-662235B | 600 | 1081 | 22U | 0.5364 | |
WB-EZ-682235B | 800 | 0.6941 | |||
WB-EZ-602235B | 1000 | 0.8519 | |||
WB-EZ-662735B | 600 | 1303 | 27U | 0.6395 | |
WB-EZ-682735B | 800 | 0.8276 | |||
WB-EZ-602735B | 1000 | 1.0157 | |||
WB-EZ-663235B | 600 | 1525 | 32U | 0.7421 | |
WB-EZ-683235B | 800 | 0.9604 | |||
WB-EZ-603235B | 1000 | 1.1787 | |||
WB-EZ-663735B | 600 | 1748 | 37U | 0.8462 | |
WB-EZ-683735B | 800 | 1.0951 | |||
WB-EZ-603735B | 1000 | 1.3440 | |||
WB-EZ-664235B | 600 | 1970 | 42U | 0.9480 | |
WB-EZ-684235B | 800 | 1.2267 | |||
WB-EZ-604235B | 1000 | 1.5055 | |||
WB-EZ-664735B | 600 | 2192 | 47U | 1.0508 | |
WB-EZ-684735B | 800 | 1.3596 | |||
WB-EZ-604735B | 1000 | 1.6686 |
