| Model: | WB-NCxxxxB6B |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS |
| Static Loading: | 600-800KGS |
| Package: | Aeembled or Dis-assembled |
| Material: | SPCC cold rolled steel or EG steel |
| Thickness: | Mounting profiel:2.0mm, others 1.2~1.5mm |
| Surface treatment: | Polish or Wrinkle |
| Color: | Black or Grey as standard |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Production Capacity: | 3000pcs/month |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | Cartons, Wooden Cases |
| MOQ: | 5 Piece/Pieces | Delivery Date: | 25-30 days |
| Means of Transport: | Land, Ocean, Air | ||
19" Glass door NETWORK CABINET with bevel door frame
Features
This cabinet is intended for installation data and telecommunication devices and their distribution systems.
19" rack mountable, Classic structure - possible of max the load capacity up to 800KG.
Front & back door earthing.
Widely used for Data cabling devices.
Doors
Front glass door with bevel door frame - swing handle lock.
Back single perforated door with handle lock.
Removable side panel , optional lock.
Accessories
Fan tray ( 2/4/6) - as per depth
4× position-adjustable 19 " mounting rail. [Galvanized]
300KG capacity wheels and adjustable feet.
20 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 400×50mm rectangle cable entrance
Bottom - 4* 350×50mm rectangle cable entrance
Can ask for more...
Package
Weitelecomms disassembled packing save 60% volume , allows for convenient stocking.
Neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
Cabinet Bearing capacity: 600-800KG
IP degree: IP-20
Body color:RAL9004(black);RAL7035(grey),etc
Galvanized
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
2 | Front Door | 1 | 1 | 5.0 mm glass | \ | Solid frame |
3 | Side Panels | 2 | 2 | 1.2mm SPCC steel | Powder coating | Removable |
4 | Back Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | Vented |
5 | Lock | 1 | 1 | \ | \ | Handle Lock |
6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
7 | Rear door panel | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
8 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
9 | Ac fan | 2 or 4 | 2 or 4 | \ | \ | D>800,4 pcs |
10 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating | Optional parts |
11 | Earthing bolts | 1 | 1 | SPCC T=1.5 | \ | 25 cm |
12 | Castors tray | 4 | 4 | SPCC T=2.5 | Powder coating | |
13 | Castors | 4 | 4 | \ | \ | |
14 | Ajustable feet | 4 | 4 | Steel | Brass plated | M12 |
15 | Mounting angle | 2 | 2 | SPCC T=1.5 | Powder coating | |
16 | 19inch rails | 4 | 4 | SPCC T=2.0 | Powder coating | |
17 | Cable management | \ | 2 | SPCC T=1.2 | Powder coating | 800W only |

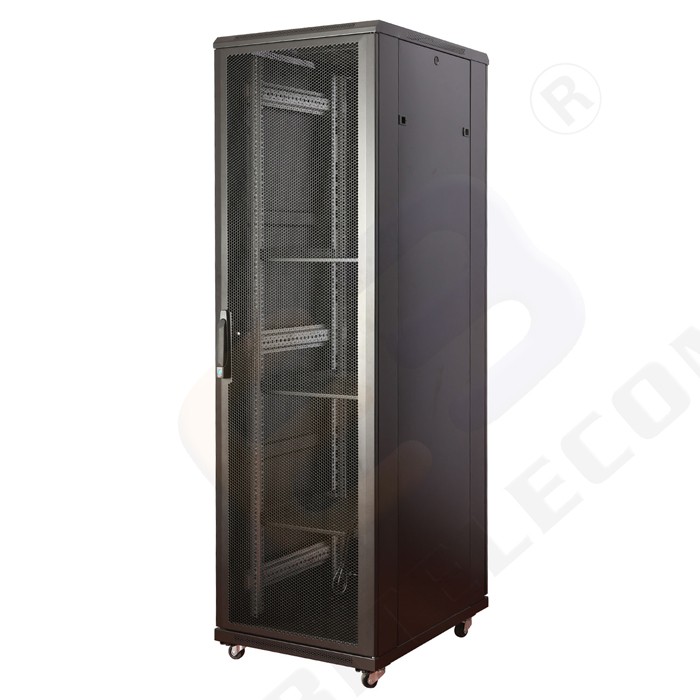

Front
Back
Removeable side panel

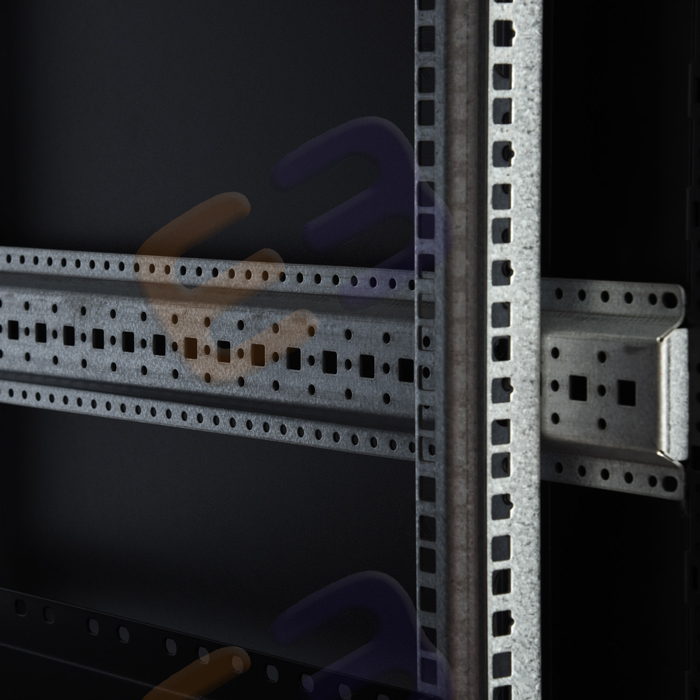

Mounting beam and rails ( galvanized )

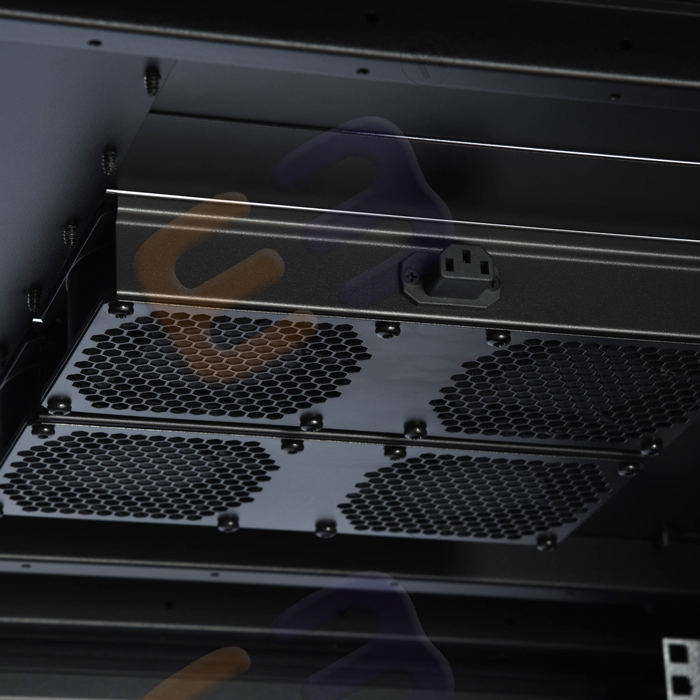

Cascaded fan unit

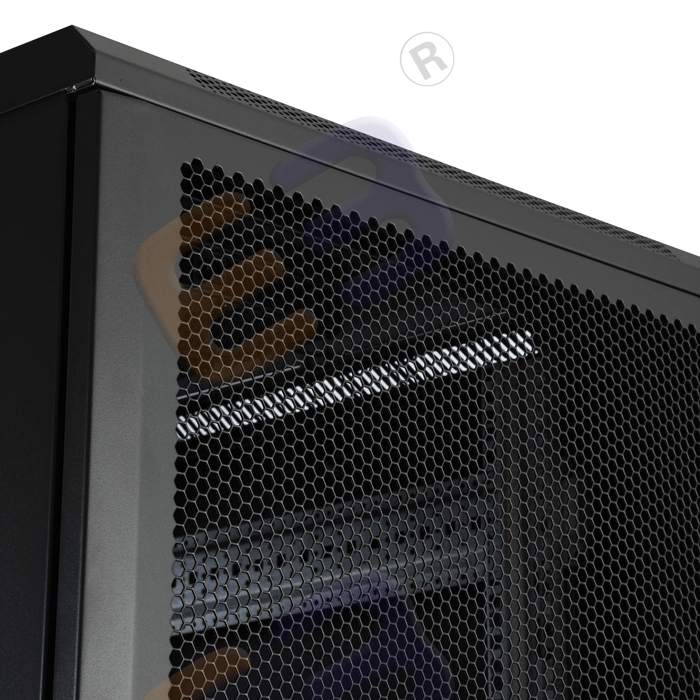

Back hexagonal mesh door
We take great commitments to photograph products indeed without any cheating and plagiarism!
Special package
Webitelecomms Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided
