WB-ZHxxxxA5G

Model:WB-ZHxxxxA6B
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Certificate:CE. ISO, ROHS,SGS
Thickness:Mounting profile 2.0mm, orthers 1.2~1.5mm
Material:SPCC cold rolled steel or EG steel
Packing:Assembled or Flat packing
Static loading:600-800kgs
Export Area:Europe, America, Middle east
Fan quantity:2 or 4
Surface:Frosting / Wrinkle
Color:RAL7035 / RAL9004


Product Description

                                             Payment & Shipping Terms
                                          Supply Capacity
Trade Term:FOB,CFR,CIF,DDP,FCA,EXWProduction Capacity:3000 units per month
Payment Terms:L/C, WU, T/T, PaypalPacking:Cartons, Wooden Cases
MOQ:10 Piece/PiecesLead Date:25~35 days
Means of Transport:Land, Ocean, Air


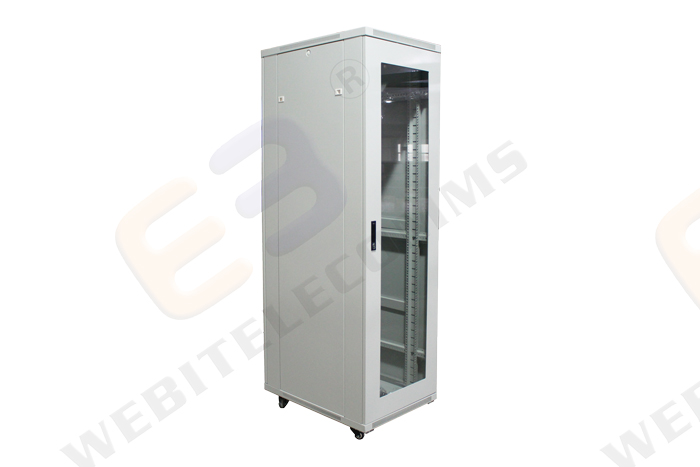

Windows type Glass door NETWORK CABINET with flat roof.


Features

WB-ZHxxxxA5G cabinet is intended for installation data and telecommunication devices and their distribution systems.

19" rack mountable, windows glass door type - possible of max the load capacity up to 800KG.

Front & back door earthing.

Widely used for Data cabling and monitoring aids.


Doors

Front glass door with windows type door frame - swing handle lock.

#PERSPEX is available.#

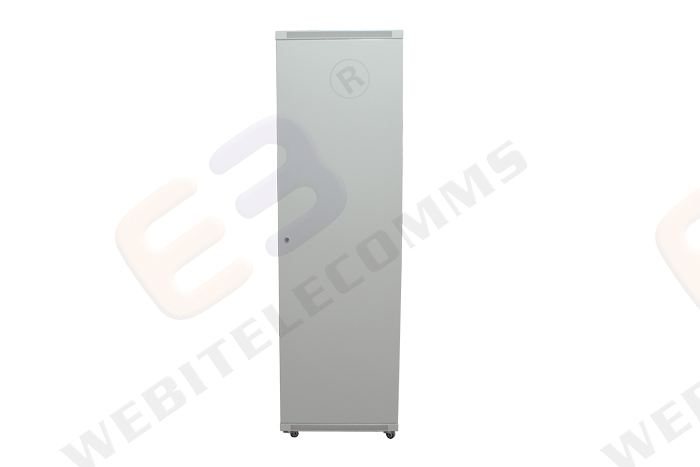

Back solid metal door with small cylinder lock.

Removable side panel , optional lock.


Accessories

AC Fan-tray (2 or 4 fans) - as per depth

4× position-adjustable 19 " mounting rail.

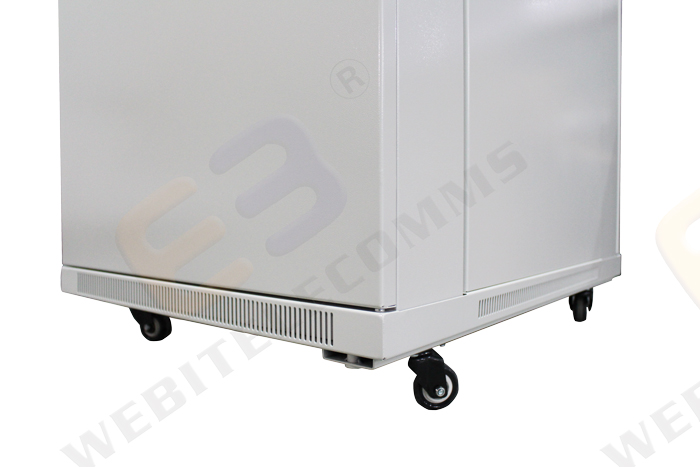

300KG capacity wheels and adjustable feet.

20 sets of extra M6 caged screws.


Cable entrance

Top  - 1 * 400×50mm rectangle cable entrance

Bottom - 4* 350×50mm rectangle cable entrance

Can ask for more...


Package

Disassembled packing save 60% volume , allows for convenient stocking.

Webitelecomms neutral carton box packed

Plywood pallet for options


= Varies specification upon customers' special requirements=


Size suggestions

Width: 600,800 mm

Depth: 600,800,1000,1200 mm

Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U

Customized size is available


Standard and Materials:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.



Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating


Materials:SPCC cold rolled steel or EG steel



Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm


Cabinet Bearing capacity: 600-800KG


IP degree: IP-20


Body color:RAL9004(black);RAL7035(grey),etc


=Main parts=


NO.

Item

600W

800W

Materials

Treatment

Note

1

Frame

2

2

1.5mm SPCC steel

Powder coating


2

Front Door

1

1

5.0 mm glass

\

windows type

3

Side Door

2

2

1.2mm SPCC steel

Powder coating

Removable

4

Back Door

2

2

1.2mm SPCC steel

Powder coating


5

Handle Lock

1

1

Zinc alloy

-*


6

Top cover

1

1

1.2mm SPCC steel

Powder coating


7

Small lock

1

1

Zinc alloy

\

Back door

8

Fan unit

1

1

1.2mm SPCC steel

Powder coating


9

Ac  fan

2/4

2/4

\

\

D>800,4 pcs

10

Bottom panel

1

1

SPCC T=1.2

Powder coating


11

Earthing bolts

1

1

SPCC T=1.5

\

25 cm

12

Castors tray

4

4

SPCC T=2.5

Powder coating


13

Castors

4

4

\

\


14

Adjustable feet

4

4

Steel

Brass plated

M12

15

Mounting angle

4/6

4/6

SPCC T=1.5

Powder coating

H≤37U, 4pcs

16

19inch rails

4

4

SPCC T=2.0

Powder coating


17

Blue beading

2

2

\

\

can be green


-Accessories matching-:

PDU

- eg. 6-way country-spec series PDU

Patch panels

- eg. 24-port Cat6 UTP patch panel

Shelves

-eg. 3 x fixed shelf  [ as per Depth ]

Cable managers

-eg.  5-ring cable management

KVM switch

-eg. 8-port VGA 17" KVM

Others

etc..



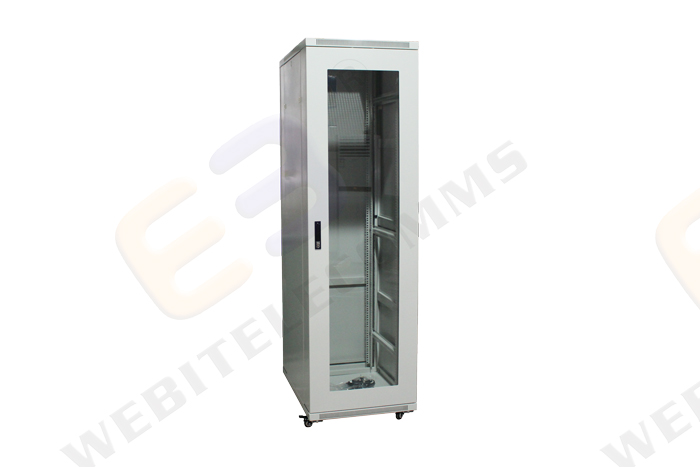

  • Tempered glass door



  • Back view



  • Side panel

  • IMG_6211.jpg

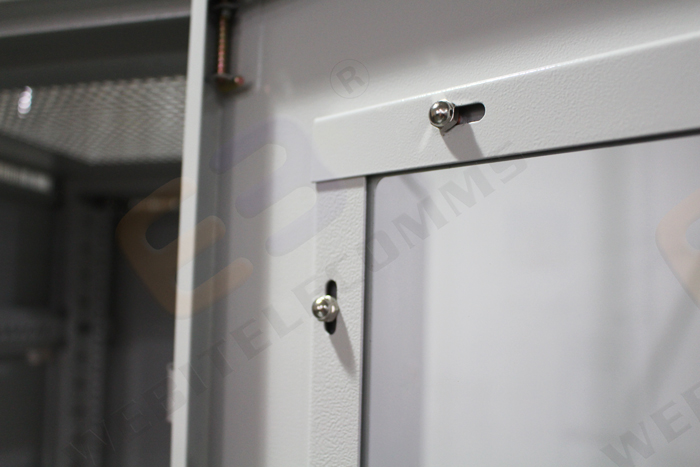

Glass door holder stiffener

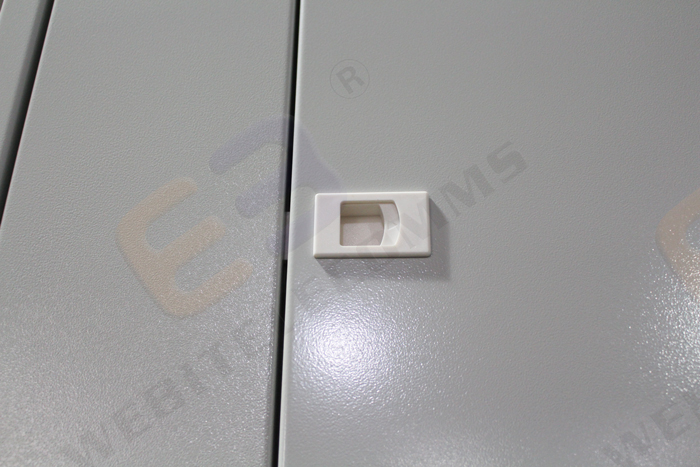

  • Side panel quick-open kit



  • Back bottom view

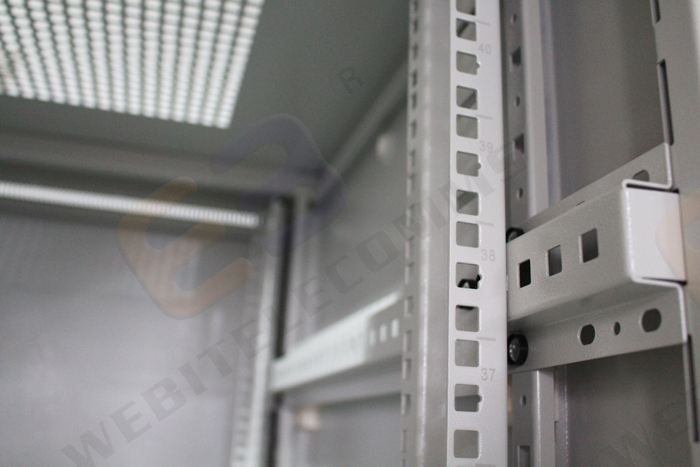

U marked rails

  • IMG_6271.jpg


=Webtielecomms packing=

=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


OPERATION CONDITIONS

• Operation environment:

– Office

– The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humgoods_id and wet surroundings).


• Must be protected against:
– Mechanical damage
– Improper handling
– A different usage than the cabinet is intended for

• Improper handling is especially:
– Overloading (maximum recommended load exceeding)
– Device installation that can influence negatively operation and function of the cabinet or the installed equipment
– Change of the construction or design of the cabinet

INSTALLATION OF THE CABINET

• To ensure the maximum recommended load, it is necessary to distribute the load equally.
• Place the cabinet on a flat floor and adjust any differences using the levelling feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame (both can be bought from us).

ENVIRONMENTAL PROTECTION

• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.

CERTIFICATE AND CONFORMITY

• This product is fully in accordance with CE & RoHS.



ModelW(mm)D (mm)H(mm)UCBM (m3)
WB-A5-6618A5G60060099218U0.4957
WB-A5-6818A5G8000.6415
WB-A5-6622A5G600108122U0.5364
WB-A5-6822A5G8000.6941
