WB-CS41CA

Model:

WB-CS41CA

Place of Origin:

Zhejiang,China (Mainland)

Size:

125 x 86 x 26.5 mm

Housing:

plastic

PS/2:

1

Audio port:

1

Female VGA:

5

resolution:

1280 x 1024


Product Description

Payment & Shipping Terms

Supply Capacity

Trade Term:

FOB,CFR,CIF,DDP,FCA,EXW

Production Capacity:

10000 pcs/month

Payment Terms:

L/C, WU, T/T, Paypal

Packing:

cargo

MOQ:

1 Piece/Pieces

Delivery Date:

25 days

Means of Transport:

Land, Ocean, Air

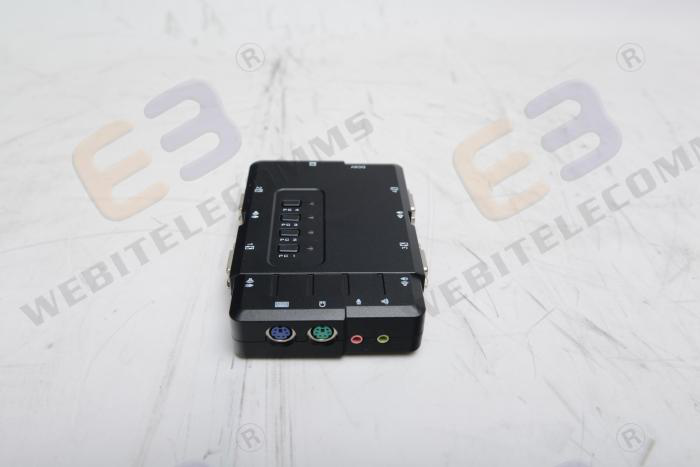

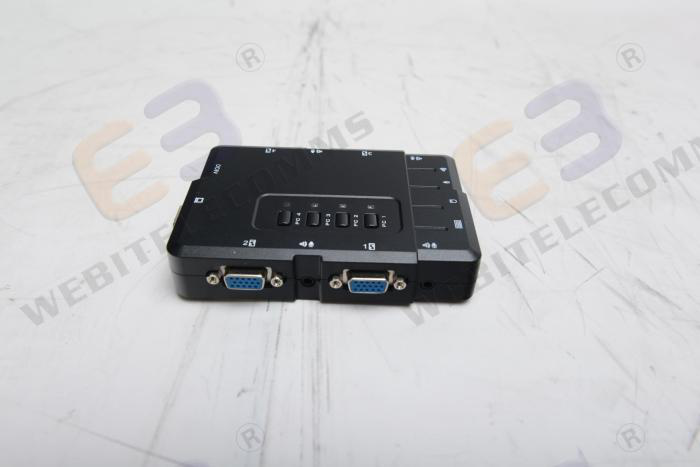

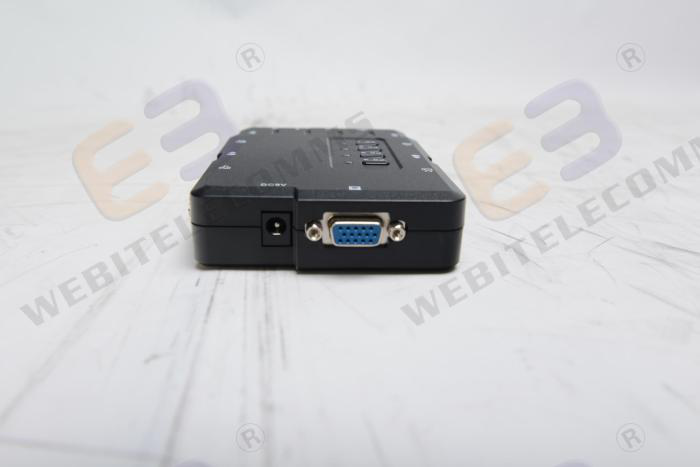

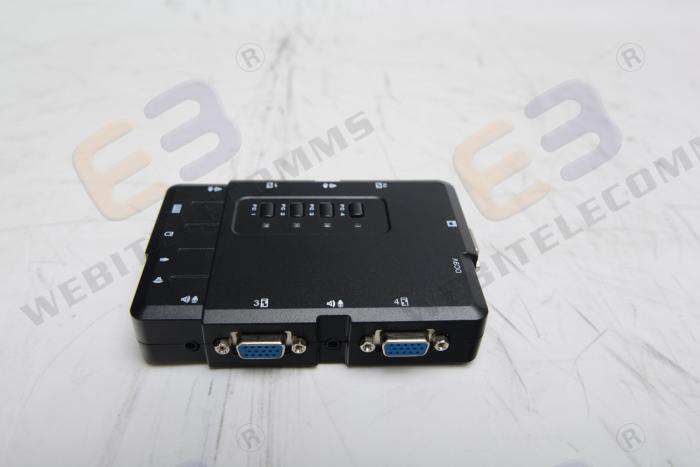

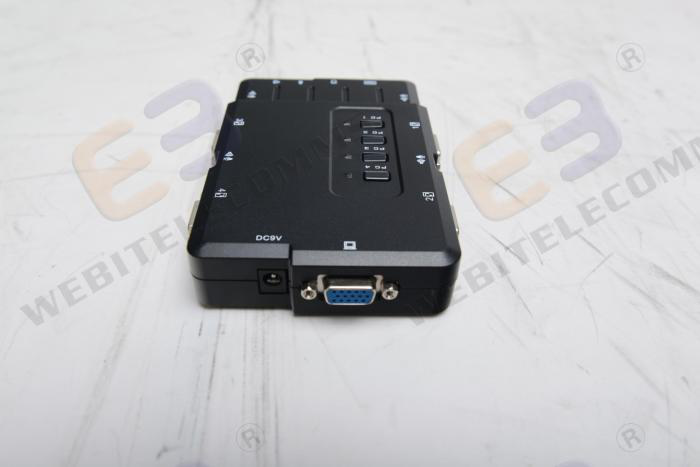

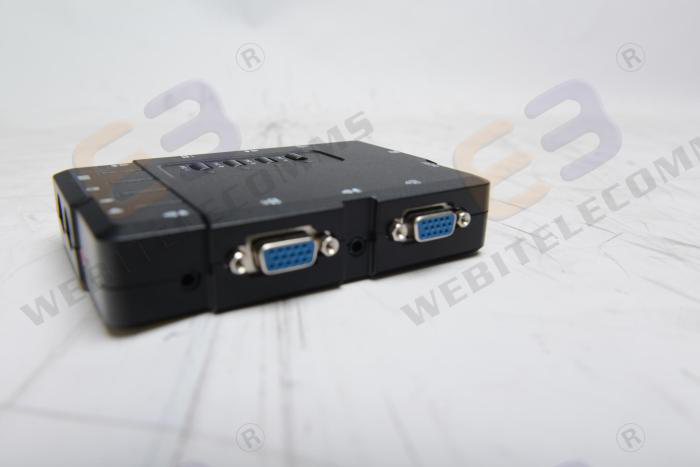

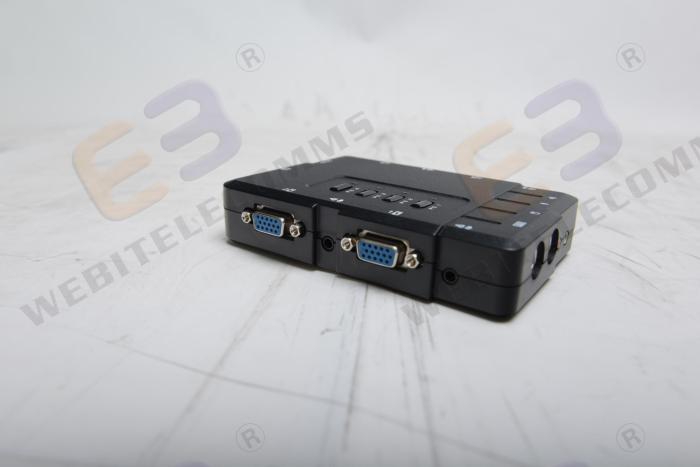

Plastic 4 ports KVM console

Functions:



4 ports Webitelecomms KVM console,It can control 4 servers via a single console and allows users to switch between computers via the buttons

on the front panel of the switch or the hotkey configuration on the keyboard.

It is the simplest and most convenient solution formulti-computer management. The sturdy, durable and small enclosure design is its important feature.



Features:

One PS/2 console controls 2computers/ servers;

Keyboard and mouse simulationfunction built-in;

Easy Installation, no softwarerequired;

OS Compatibility: DOS, Windowsseries; Linux, Unix, etc.

Easy installationwithout any other additional software;

connect with computer viacable directly,Auto Scan function to monitor computer operation

Superior video suggest to 1280 x 1040;

support VGA, SVGA, XGAwith DDC2B function;

Computer selection viafront panel push buttons and hot keys.

Supports Microsoft IntelliMouse, Logitech Mouse Man, First Mouse and IBM Scroll point Mouse.

Hot plug gable- to addor remove computers without powering down;



Specification:

TYPE

WB-CS41CA

Computer connections

Connect directly

4

Port selection

Front panel switches/ hot key

LED s

selected

4 (orange)

online

4 (Red)

Power

 -





Console ports

monitor

1*HD15 female

keyboard

1 x PS/2 female (purple)

mouse

1 x PS/2 female (green)

audio

Microphone

3.5mm jack (green)

3.5mm jack (pink

PC ports

4*HD15 female

2* audio input

simulation

PS/2

Power

DC5V, 400mW

Video resolution

1280 x 1024

Scan interval

5S

Operating temp.

-10--40 ℃

Storage temp.

-20--60℃

Housing

Plastic

Weight

1.09kg

Dimension

86 x 86 x 26.5 mm (L*W*H)




FAQ



1)    What is your Payment term?

---TT, LC, Western Union could be accepted.



2)    What is your Trade term?

---EXW, FOB, CNF, CIF,DDP , We're flexiable since the trade term is reasonable .



3)    What is the Loading Port?

--- Ningbo,Shanghai.



4)    What is your MOQ?

---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item

in the price list.



5)    What kind of certfications can ensure your quality problem?

---As Europe market, we have CE RoHS and other international safety standard for our products.

---As other market,international safety standard certificate also could be provided.



6)  How long I can get your price ?

--- 24*7 service is ready, 30 mins - 38 hours , you will get the price!




Order information



Model NO.

Description                                                                                     .

WB-CS-21UA

Plastic case desktop series KVM , 2 VGA port

WB-CS-41UA

Plastic case desktop series KVM , 4 VGA port

WB-CS-21CA

Plastic case desktop series KVM , 2 Cat5e port

WB-CS-41CA

Plastic case desktop series KVM , 4 Cat5e port

WB-AS-21P

Metal case desktop series KVM, 2 PS/2 port , 2 VGA port

WB-AS-21UA

Metal case desktop series KVM, 2 USB port with audio  , 2 VGA port

WB-AS-41P

Metal case desktop series KVM, 4 PS/2 port , 4 VGA port

WB-AS-41UA

Metal case desktop series KVM, 4 USB port with audio  , 4 VGA port

WB-LS-21CS

Plastic case 2 ports cable KVM,support PS/2

WB-LS-21CA

Plastic case 2 ports cable KVM,support PS/2 with audio

WB-LS-21JS

Plastic case 2 ports cable KVM, support USB

WB-LS-21JA

Plastic case 2 ports cable KVM,support USB with audio

WB-LS-41JA

Plastic case 4 ports cable KVM,support USB with audio

WB-LS-41CU

Plastic case 4 ports cable KVM (combo), support USB&PS.2 with audio
