WB-OR-A1xxxx
-
WB-OR-Bxxxx
WB-OR-Cxxxx
| Model: | WB-OR-Cxxxx |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS |
| Materials: | SPCC cold rolled steel |
| thickness: | 1.5~2.0 mm |
| Static loading: | 200kg |
| type: | castor moving |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Payment Terms: | L/C, WU, T/T | Production Capacity: | 8000 units per month |
| MOQ: | 50 Piece/Pieces | Packing: | Ctns, Wooden cases |
| Means of Transport: | Land, Ocean, Air | Delivery Date: | 10-20days |

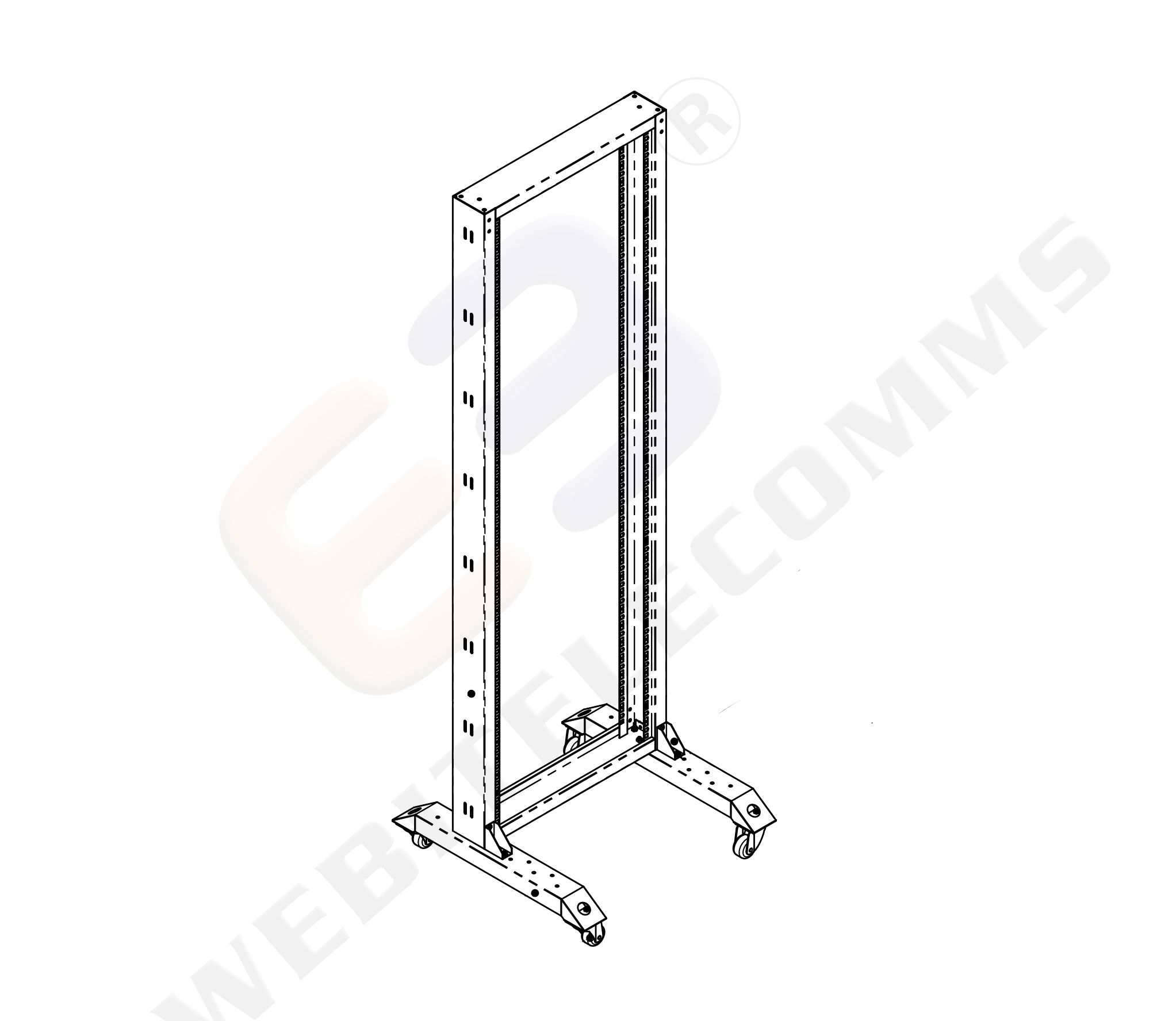

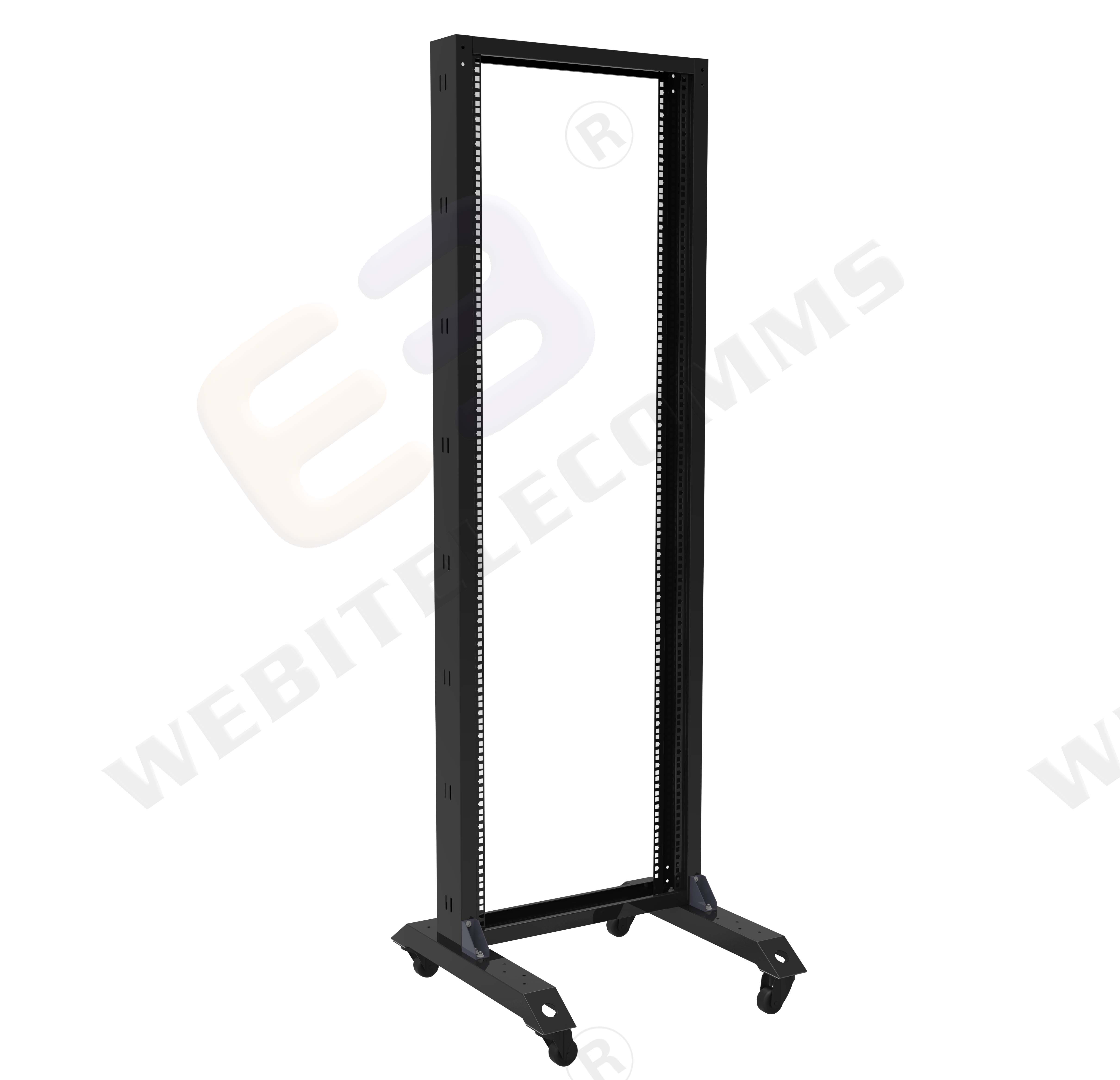

2 posts open rack with castor
Features:
WB-OR-Cxxxx open rack with 2 posts and castors.
Various optional accessories according to requirements (cable management slot, removable working panel, etc).
plinth with wheels for moving
Maximum access for cable management and equipment maintenance
Flexible packing methods allows for convenient stocking and end user delivery.
Multiple sizes available.
Customization requests welcome
Standard and Material:
Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1,DIN41494;PART7, ETSI standard.
Main material:SPCC cold rolled steel or EG steel
Thickness: Plinth:2.0mm; Front and bottom beams 2.0mm, pole:1.5mm.
Surface Finish:Degreasing, pickling, phosphoric, powder coated.
Loading capacity:150KG Static loading,from 12U to 47U capacity
Body color:RAL9004(black);RAL7035(grey),etc
-Accessories matching-:
PDU | - eg. 6-way country-spec series PDU |
Patch panels | - eg. 24-port Cat6 UTP patch panel |
Shelves | -eg. 2-point cantilever shelf |
Cable managers | -eg. 5-ring cable management |
Brush panel | -eg. 1U brush panel for wiring |
Others | etc.. |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Size list
| Part NO. | Width | Depth | U | H(mm) |
| WB-OR-C6618 | 600 | 600 | 18 | 923 |
| WB-OR-C6622 | 22 | 1101 | ||
| WB-OR-C6627 | 27 | 1323 | ||
| WB-OR-C6632 | 32 | 1545 | ||
| WB-OR-C6637 | 37 | 1768 | ||
| WB-OR-C6642 | 42 | 1990 | ||
| WB-OR-C6645 | 45 | 2123 | ||
| WB-OR-C6647 | 47 | 2212 |
*above height is measured excluding castor
