WB-OR-Bxxxx
Model: | WB-OR-Bxxxx |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Certificate: | CE,ISO, ROHS,SGS |
Installation package: | assembled or dis-assembled |
Thickness: | Mounting profiel: 2.0mm, others 1.5mm |
Material: | SPCC cold rolled or EG steel |
Static loading: | 250kgs |
Surface: | Frosting or wrinkle |
Package: | Wooden box for sample |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
---|---|---|---|
Trade Term: | FOB,CFR,CIF,FCA,EXW | Production Capacity: | 10000 units per month |
Payment Terms: | L/C, WU, T/T | Packing: | Ctns, Wooden cases |
MOQ: | 30 Piece/Pieces | Delivery Date: | 25~30 days |
Means of Transport: | Land, Ocean, Air |
4 posts wheels type open rack
Features
WB-OR-Bxxxx open frame is assembled for installation 19" devices in protected environments , without precise data requirement 19" rack mountable.
Four post structure - possible of max the load capacity up to 250KG.
Usually used for data cabling devices.
Can be bolted directly to floor
Structure
Steel parts joined by screws.
simplicity construction gifts the frame easy installation and maintenance.
Vertical U marked profiles provide a maximum loading for larger devices.
Accessories
2× frame with 19" mounting rail. ( powder coated)
4× moving castors ( 2 with brake)
10 sets of extra M6 caged screws.
Mounting of the frame
To ensure the maximum recommended load, it is necessary to distribute the load equally.
It is necessary to prevent one-sgoods_ide or one-point loading of the frame.
Package
Disassembled packing save 80% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600 mm
Depth: 600 mm , 800 mm ,900 mm
Height: 12U, 15U, 18U, 22U, 27U,37U,39U,42U,etc..
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Treatment options: Polish | Orange peal (Fine grained / Open frained )
Thickness: 1.5 mm SPCC materials before painting
Max. Loading capacity:
-Static loading: 250KG
Body color:RAL9004(black);RAL7035(grey),etc
NO. | Part name | QTY | Unit | Materials | Treatment |
1 | Plinth | 2 | Piece | 1.5mm SPCC steel | Powder coated |
2 | Rail/pole | 4 | Piece | 1.5mm SPCC steel | Powder coated |
3 | Rail connector-A | 4 | Piece | 1.5mm SPCC steel | Powder coated |
4 | Rail connector-B | 2 | Piece | 1.5mm SPCC steel | Powder coated |
5 | M6 x 12 screws | 30 | Piece | Carbon steel | Zinc plated |
6 | M6 flangu nut | 8 | Piece | Carbon steel | Zinc plated |
7 | Castors | 4 | Piece | - |

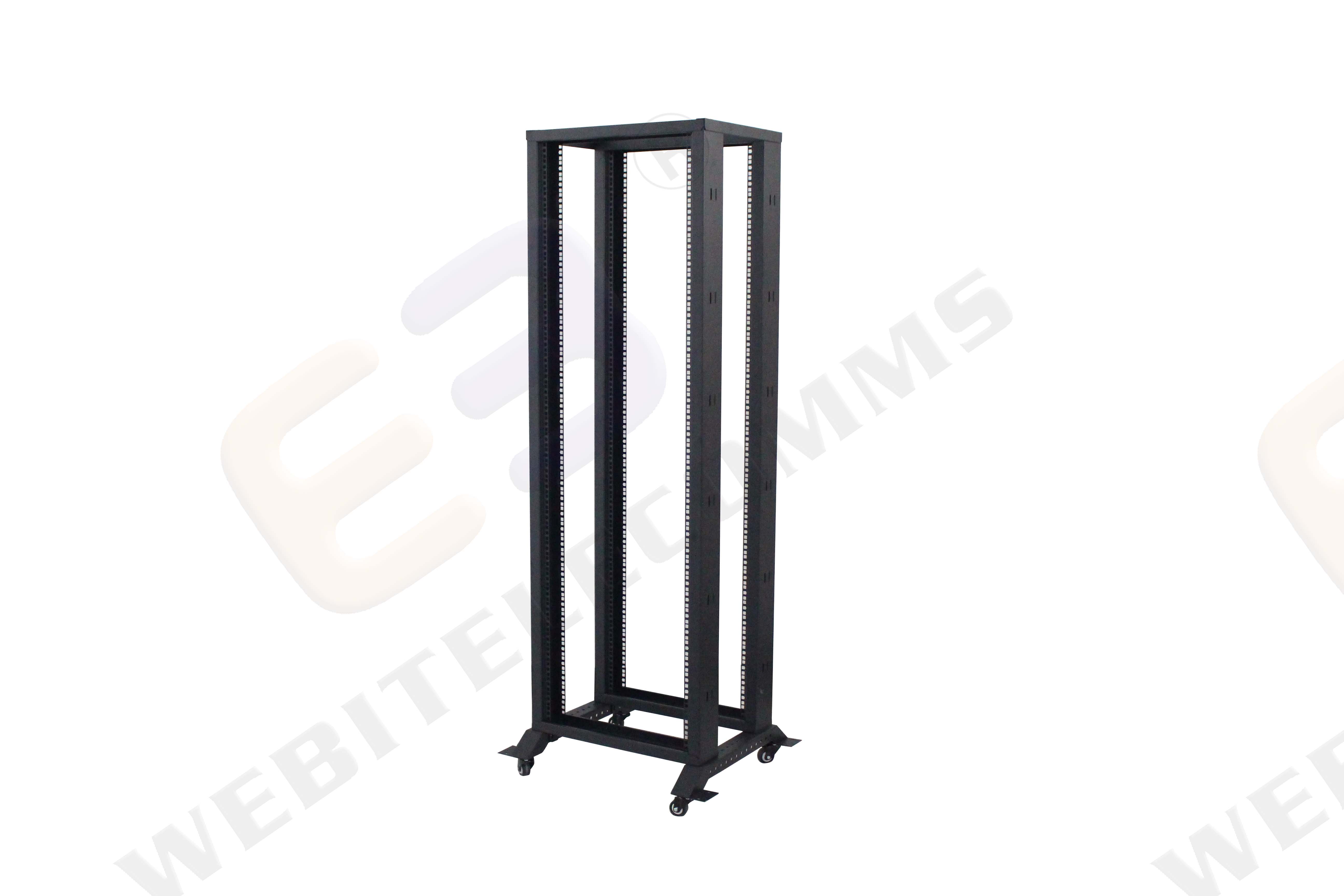

Sample pictures - 600x600 37U

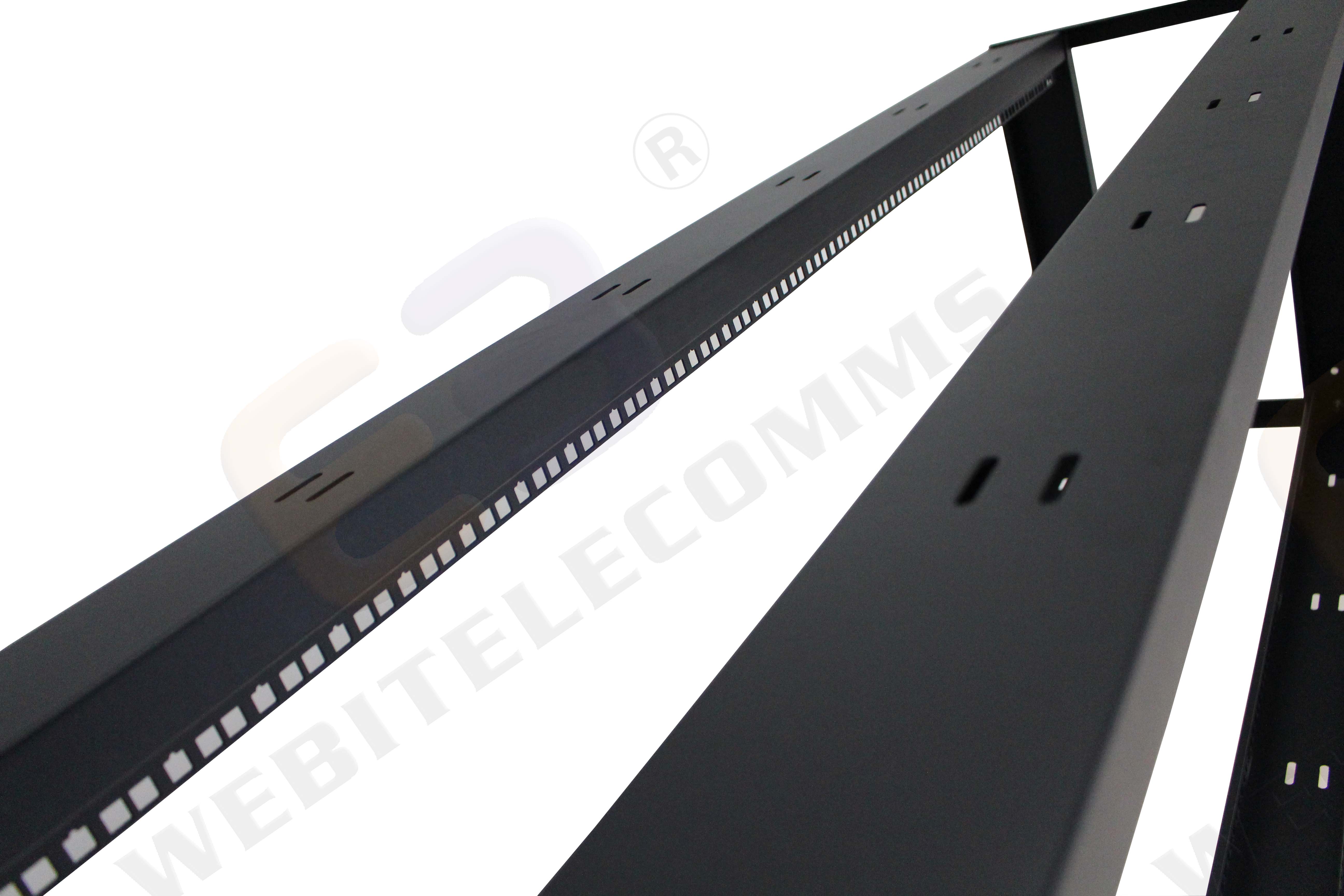

Over view

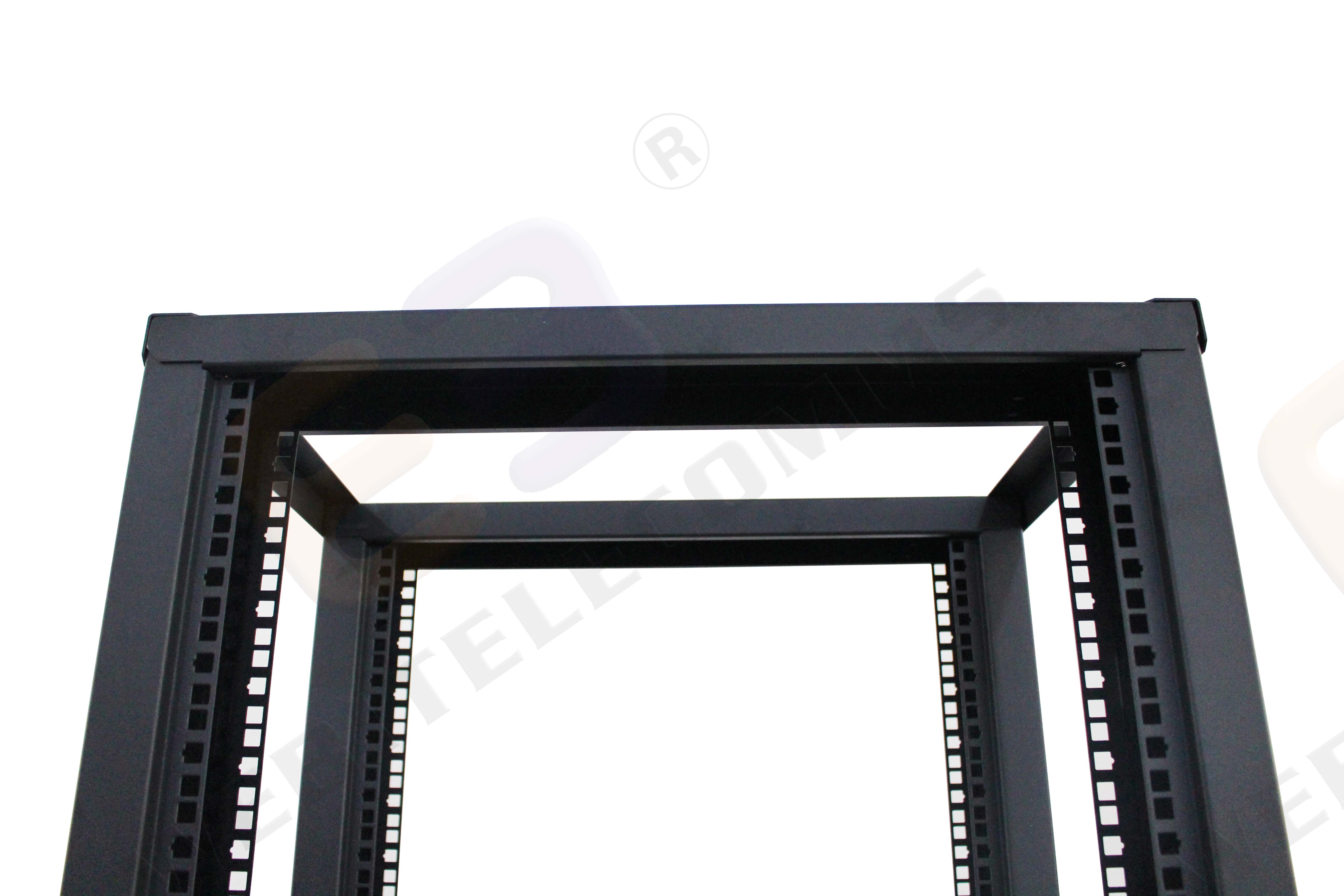

Top view

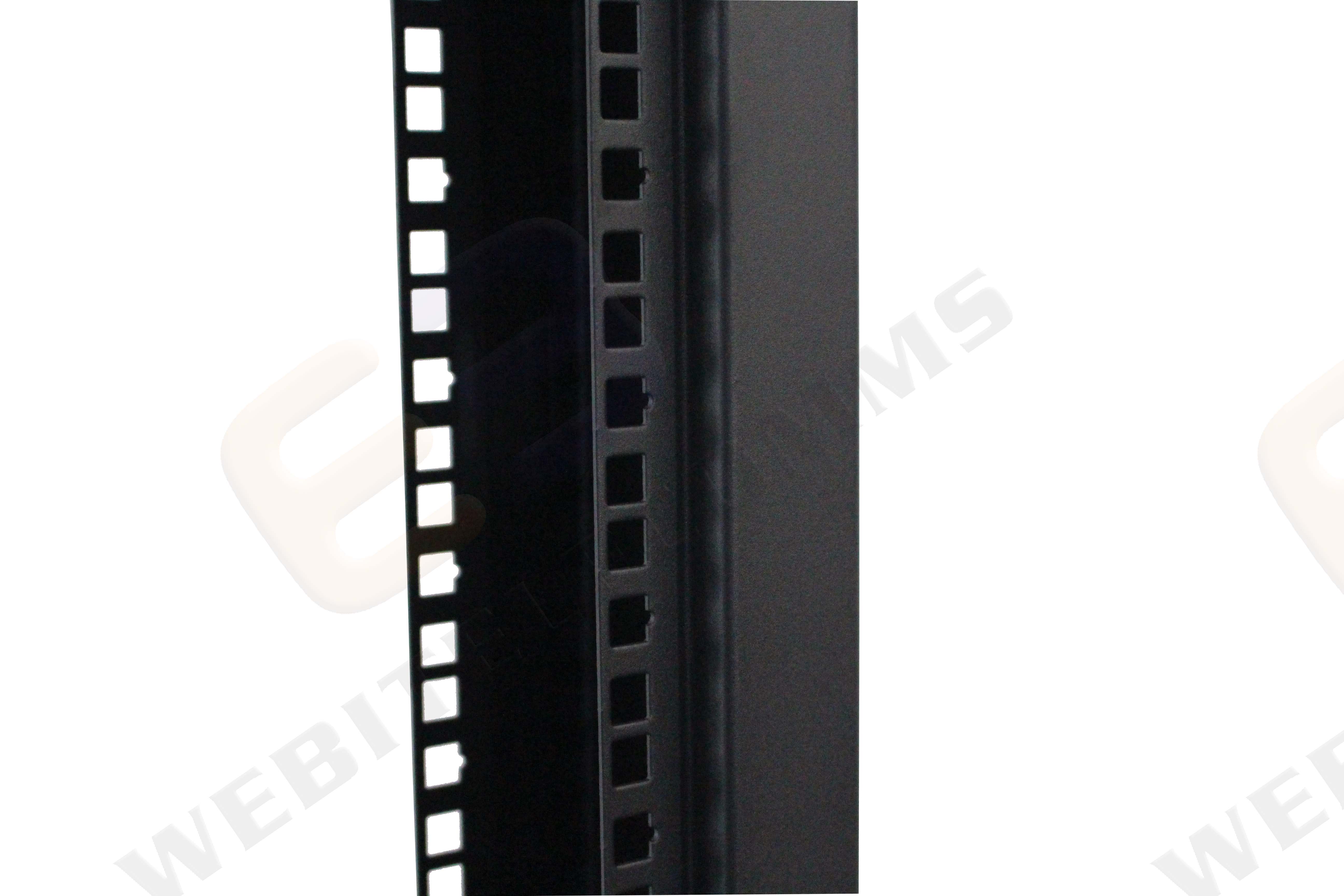

Frame

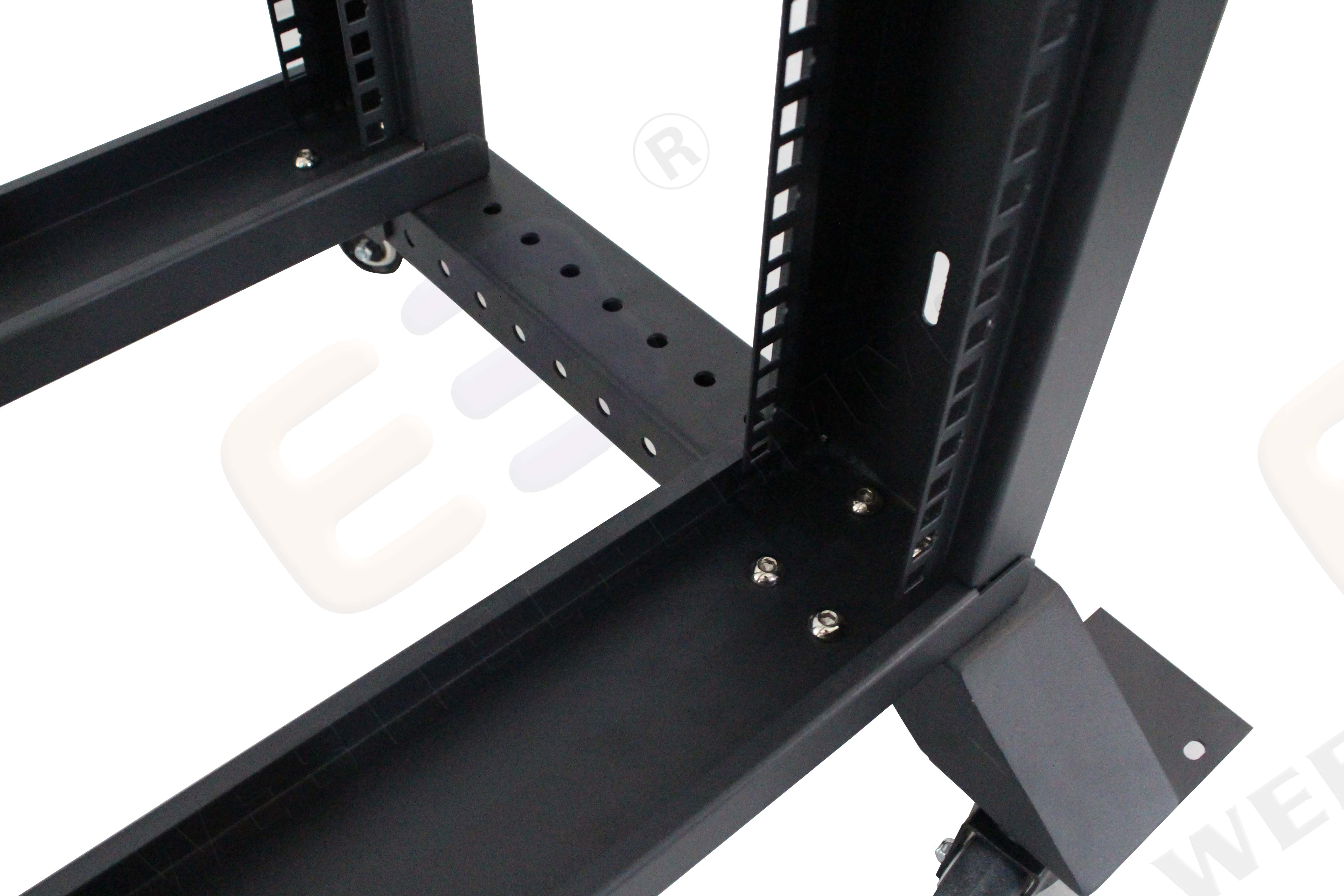

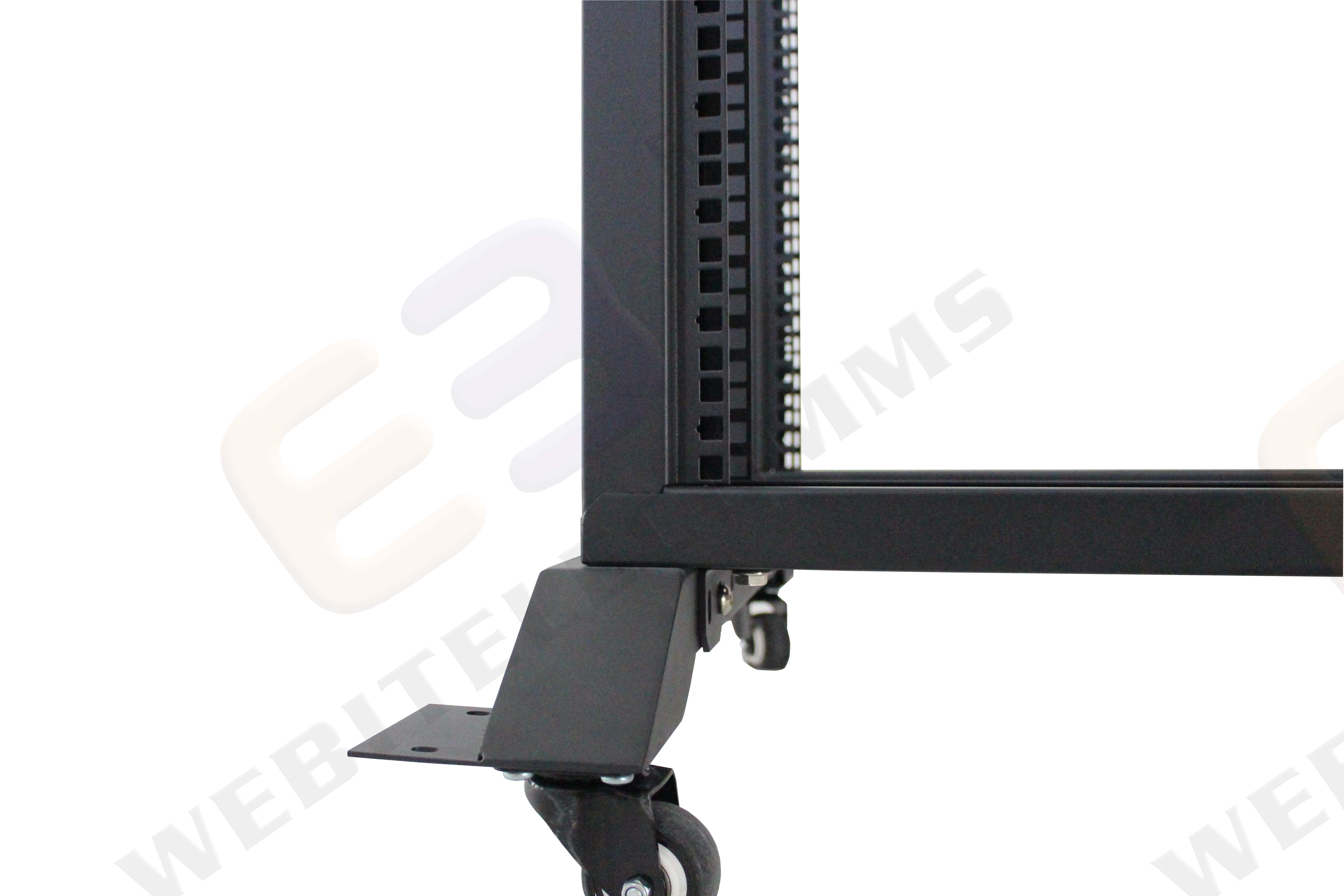

Castors & Plinth

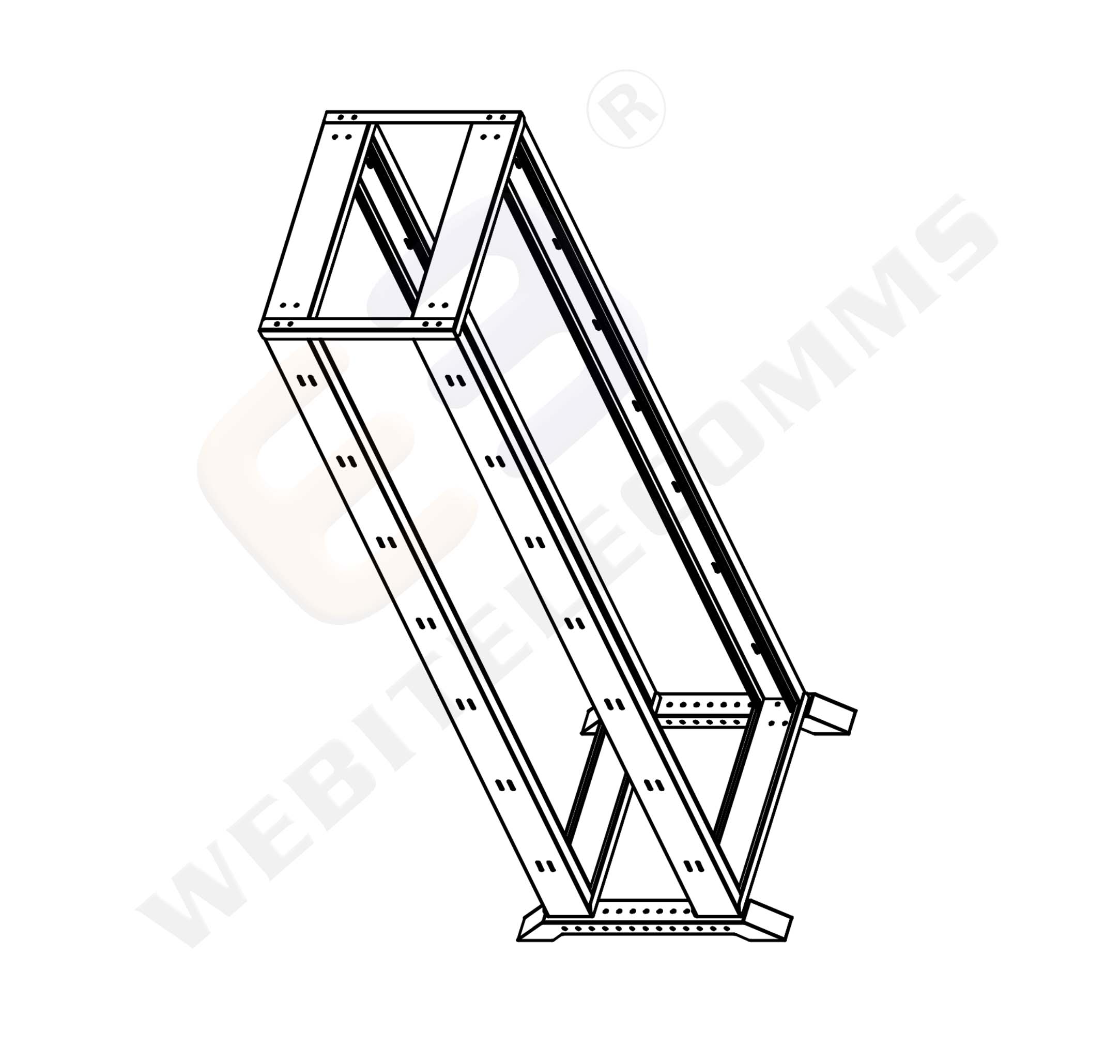

Drawing withot castor
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Size list
Part NO. | Width | Depth | U | H(mm) |
WB-OR-B6618 | 600 | 600 | 18 | 923 |
WB-OR-B6622 | 22 | 1101 | ||
WB-OR-B6627 | 27 | 1323 | ||
WB-OR-B6632 | 32 | 1545 | ||
WB-OR-B6637 | 37 | 1768 | ||
WB-OR-B6642 | 42 | 1990 | ||
WB-OR-B6645 | 45 | 2123 | ||
WB-OR-B6647 | 47 | 2212 |
