WB-CC-R

Model:WB-CC-R
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Dimensions:Customized
Application:Tablets/Laptop charging
Voltage:220V input
Outlet:110/220V. 10-16A
Color:Black / Grey / Blue
Charing No.s:30
Bearing capacity:300kg


Product Description

Payment & Shipping TermsSupply Capacity
Trade Term:FOB,CFR,CIF,DDP,FCA,EXWProduction Capacity:5000 pcs/month
Payment Terms:L/C, WU, D/P, T/T, PaypalPacking:Carton / Pallet
MOQ:10 Piece/PiecesDelivery Date:30 days
Means of Transport:Land, Ocean, Air

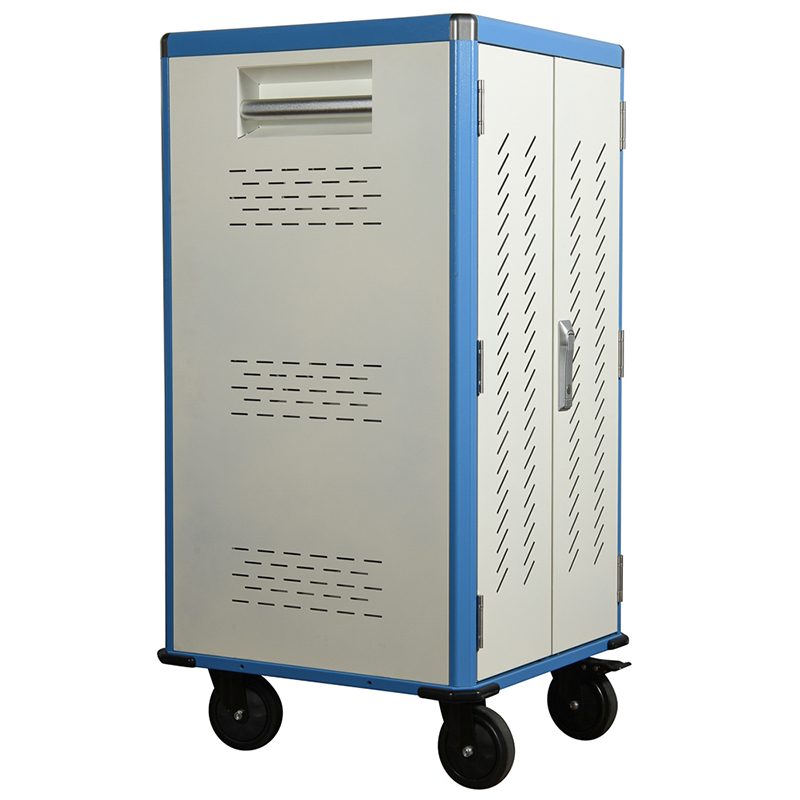

110/220V AC series floor mounted laptop charging cart


Description

This laptop charging cabinet is customized design to secure, protect and charge the IT devices;

Including pad, phone, Laptop in school,hospital,government department,Training places etc;




The Webitelecomms charging cabinet creates capacity for


  • 30 - unit ( can be customized ) capacity with 34mm height divider space for operation

   --- Ideal for 15.6" Laptop , total 30 units


  • Detail size will be adjusted when drawing confirming.


  • AC fan optional for airflow and cooling—as per your need


  • Gross weight 72.5kgs



Efficiency

Side embedded handle for moving.

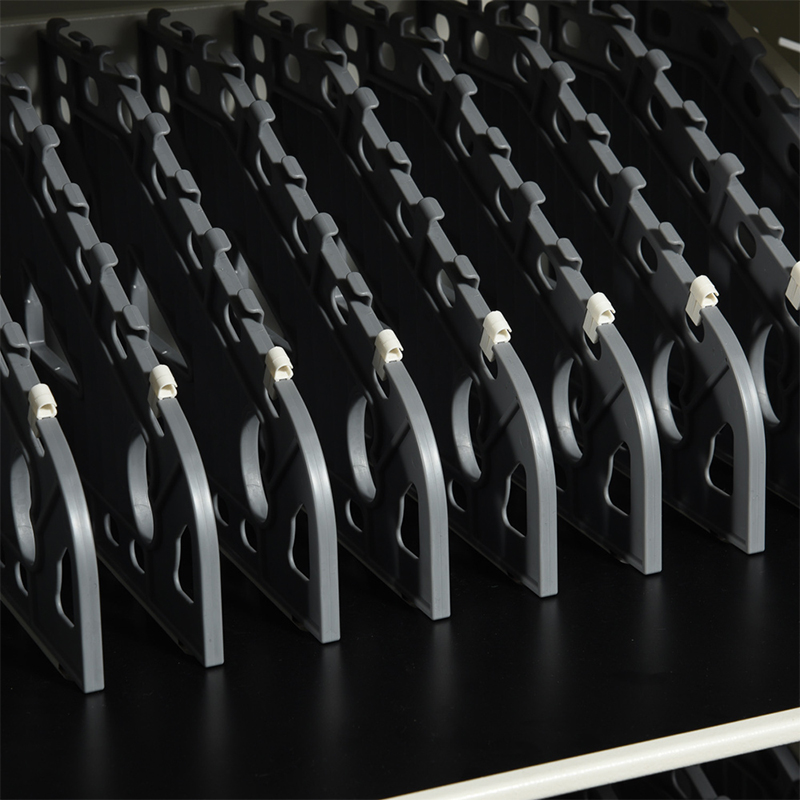

Sliding special-made divider comes with cable management function.

AC fast 110/220V power charging


Security

SPCC perforated doors with key lock.

Cabinet is made from Aluminum alloy frame & 1.2 mm SPCC body.



Safety

For user and equipment safety, the entire webitelecomms cabinet is to be tested and certified to CE,RoHS standard


Environment

Country-specific power cord = 1.5m long (for fan)

Power System: input/output = 220-250V~ MAX AC input, 1A/1.5A outlet,or customized as different countries

Temperature Range: operating 0° to 30°C (32° to 86°F); storage -40°C to 60°C (-40° to 140°F)



IP degree : IP-20



Parameter

Product Dimensions: 820X600X770MM(W*D*H), ask Webitelecom for customized one

Warranty: Five (5) years mechanical/workmanship; two (2) years electrical components; one (1) year cables



=Ships fully assembled=


Application

Tablet/MINI laptop/Mobile IT devices/Ethernet switch

Interface

Country-specific standard

Power strip

10-way

USB port

2.0

Input

110V,220V,240V

Output

110V,220Vor 24V/ SV. 2A

Outlet type

UK

BS1363

Germany

DIN49441

French

DIN49441

Australia

AS/NZS3112

IEC

C13/C14

C19/C20

Other

GB1002

BS546...

Standard

configuration

1. Over load protection 15A (for only PDU optional function)

2. Leakage protection and lighting protection module

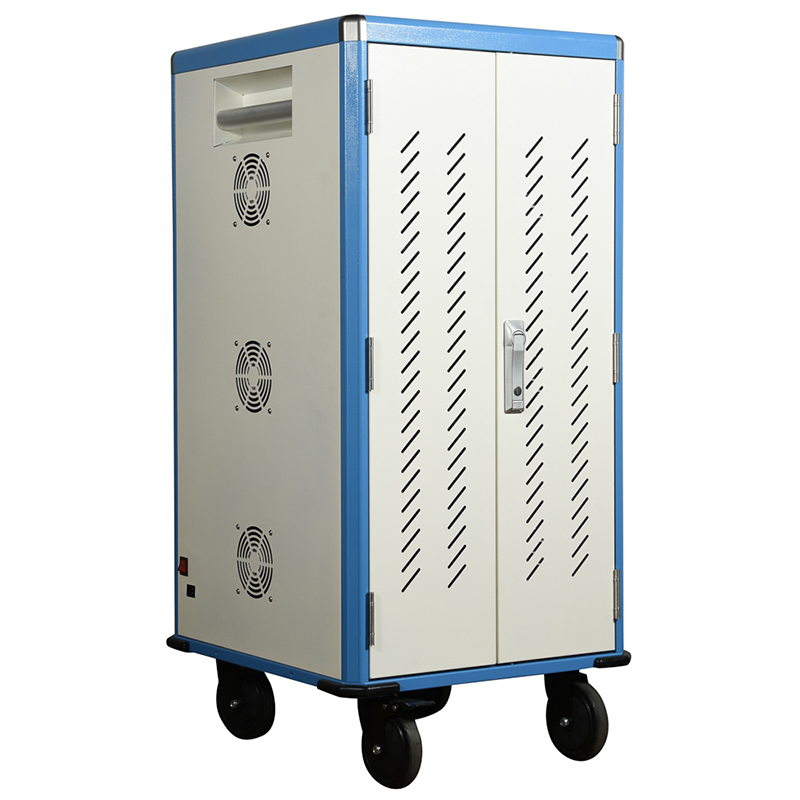

3. Fan cooling at back side ( or side panel if you wanna to)

4. Red & green charging indicator

5. Rubber leaveling feet

8. Operating handle

9. Lock and keys

10. Earthing cable

Optional configuration

1. Built-in LED lights (or sensor series LED light--auto on/off)

2. MDF function to avoid all kinds of cables pass into a mass

3. Audio amplifier,speaker,MP3,USB and microphone equipment

4. Other ideal

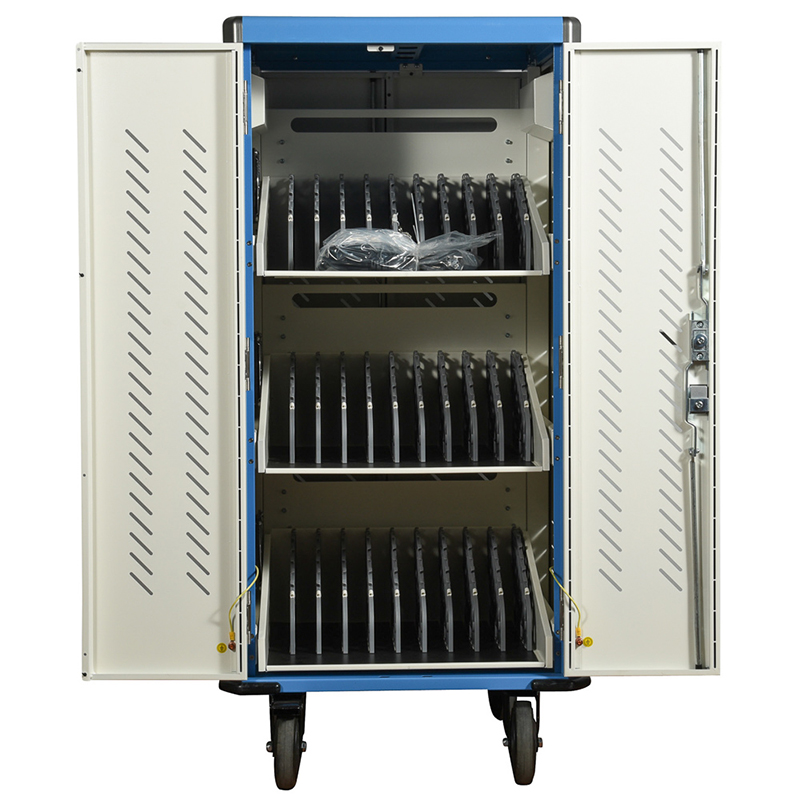

Photos show







=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most webitelecomms products is usually 5pcs, different items will be different. the MOQ will be indicated in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
