WB-CC-D

Model:WB-CC-D
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Type:Universal
Certification:CE,RoHS,REACH
Materials:SPCC
Thickness:1.0~1.5 mm
Structure:Assembled
Charging port:40 unit charging
Function:

Temperature & Humidity sensor

Current Meter

LCD indicator


Product Description

Payment & Shipping TermsSupply Capacity
Trade Term:FOB,CFR,CIF,DDP,FCA,EXWProduction Capacity:5000 pieces per month
Payment Terms:L/C, WU, T/T, PaypalPacking:assembled
MOQ:10 Piece/PiecesDelivery Date:25 days
Means of Transport:Land, Ocean, Air


40 unit tablet charging cabinet


Description

This pad charging cabinet is customized design to secure, protect and charge the IT devices;

Including pad, phone, Laptop in school,hospital,government department,Training places etc;






1.Safe charging: DC charging interface Time-delay current path to protect socket and pad.


2. Security management: handle lock application for front and back maintenance and management , ensuring the security for the users.

In addition, the cabinet can add the fixed ring design, with which, it can be locked in a certain position to prevent theft for the whole cabinet.

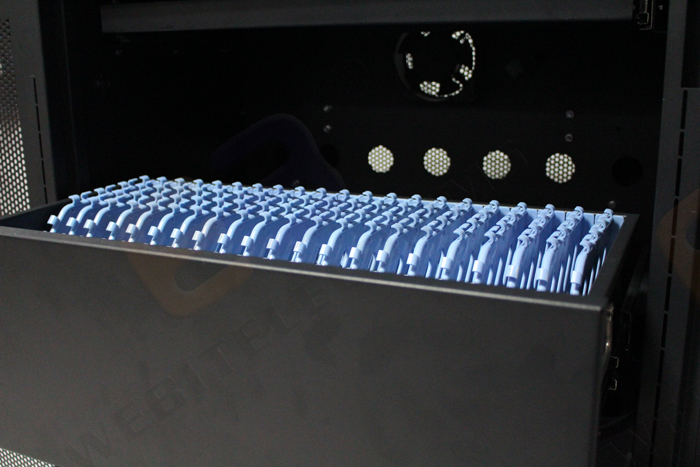

3. Convenient access: all tablets are placed vertically in the charging shelf, which is easy to remove, so it is convenient to place and distribute the tablets.



4. Temperature & Humidity environment sensor inside



5. Good heat ventilation: the cabinet is equipped with two fans.


 - 2 fans -    &  -T&H meter-  &  -Temp&Hum sensor -




Whole cabinet creates capacity for you :



  • 40 units capacity with Perspex/ABS slots for charging operation

  •   —LED LIGHTS INDICATOR

  • Fit for all well-known brand IT devices

  • Detail size will be adjusted when drawing confirming.

  • 80mm gap between every level for airflow and cooling (or customized)

  • Country-specific power socket




Efficiency

Swiveling wheels(Rubber) included for moving

Cable management shelf provides well-organized charging appearance and convenient operation.




Security

Handle lock, for both front and rear sgoods_ide.

Ensure security for users.



Safety

Well-designed ventilation and continuous controlled fans keep devices cool

passivating treatment corner to avoid accident wounding

Temperature & Humidity meter , Alarm warns

For user and equipment safety


=Ships fully assembled=



Environment

Cooling/Ventilation: 2 AC continuous operation fans keep equipment cool

[Fan location can be adjustable.]

Country-specific power cord = 2m length

Power System: input/output = 220-250V~, 10A, 50/60 Hz or customized as different countries

IP degree : IP-20



Parameter

Product Dimensions: 560X600X1100MM(W*D*H), adjustable

Warranty: Five (5) years mechanical/workmanship; two (2) years electrical components; one (1) year cables



Application

Pad/Chrome book/Mobile IT devices/Ethernet switch

Interface

Country-specific standard

USB port

20-way

30-way

40-way

60-way

80-way

oem

Input

110V,220V,240V

Output

110V,220Vor 24V/ SV. 2A

Outlet type

UK

BS1363

Germany

DIN49441

French

DIN49441

Australia

AS/NZS3112

IEC

C13/C14

C19/C20

Other

GB1002

BS546...

Standard

configuration

1. Charging with T&H sensor

2. Leakage protection and lighting protection module

3. Extra socket and external USB charging port

4. Fan cooling at top ( or side panel if required)

5. LED lights indicator

6. Swivel castors with brakes

7. Operating handle

8. Lock and keys

9. Adapter holder

Optional configuration

1. Data sync. Transmission

2. Built-in LED lights (or sensor series LED light--auto on/off)

3. MDF function to avogoods_id all kinds of cables pass into a mass

4. Audio amplifier,speaker,MP3,USB and microphone equipment

5. Charging with timer

6. Over load protection 15A (PDU optional function)

7. Other ideal


=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most webitelecomms products is usually 5pcs, different items will be different. the MOQ will be indicated in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
