WB-CC-M1

Model:WB-CC-M1
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Dimensions:660x375x575 mm
Application:USB device charging
Voltage:110/220V input
Outlet:5V, 2.1A
Color:Black / Grey
Charing No.s:16/32/48/64way
Bearing capacity:300kg

Product Description

Payment & Shipping TermsSupply Capacity
Trade Term:FOB,CFR,CIF,DDP,FCA,EXWProduction Capacity:3000 pcs per month
Payment Terms:L/C, WU, T/T, PaypalPacking:Exporting cartons
MOQ:10 Piece/PiecesDelivery Date:30 days
Means of Transport:Land, Ocean, Air

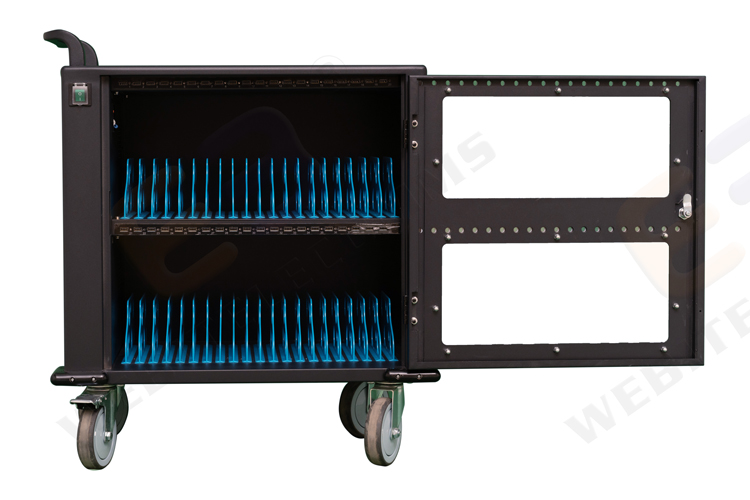

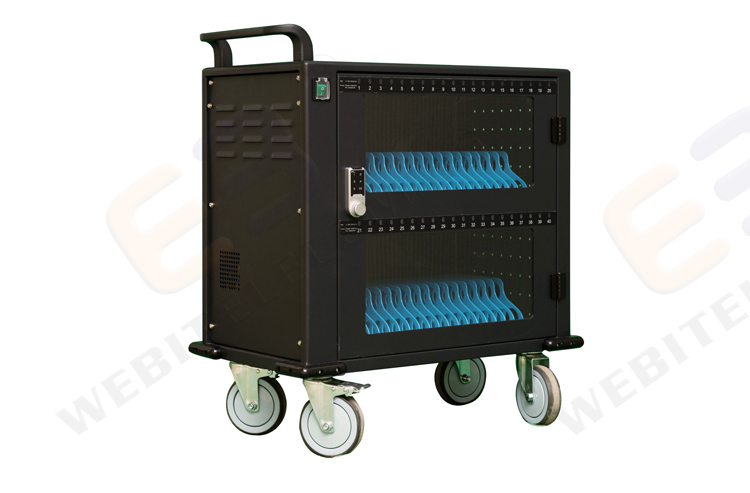

40 way single glass door DC charging trolley with code lock

( optional metal door )


Description

This DC charging cabinet is customized design to secure, protect and charge the IT devices;

Including tablet , mobile phone, kindle in school,hospital,government department,Training places etc;





1. Build-in DC charging position :16/20/32/40/48/60/64 port USB port


2. Security management: code lock operation for front and back maintenance and management , ensuring the security for the users.



3. Convenient access: all devices are placed vertically in the charging shelf, which is easy to remove and distribute.



4. Cooling system : the cabinet equipped with three fans to disperse hot airflow


Whole cabinet creates capacity for you :

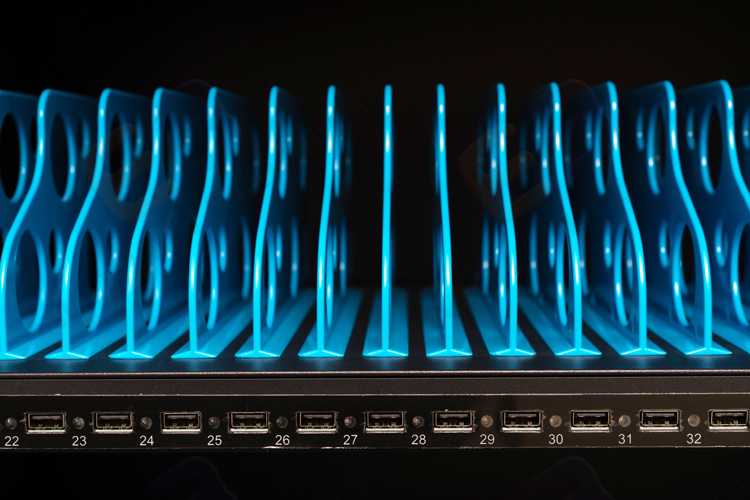

  • ★ 40 units capacity with Perspex/ABS slots for charging operation

★ 235mm gap between every level , to make sure enough space

★ 22mm gap between each slot, ensure IT device size up to 14"




Efficiency

5" Swiveling wheels , moving without noise.

Cable management shelf provides well-organized charging appearance and convenient operation.

2 x outside AC charging port and 1 x USB outlet , for temporary using.

Side panel punched with vented louver and holes

1 x ON/OFF switch at front side ( with protective cap)




Security

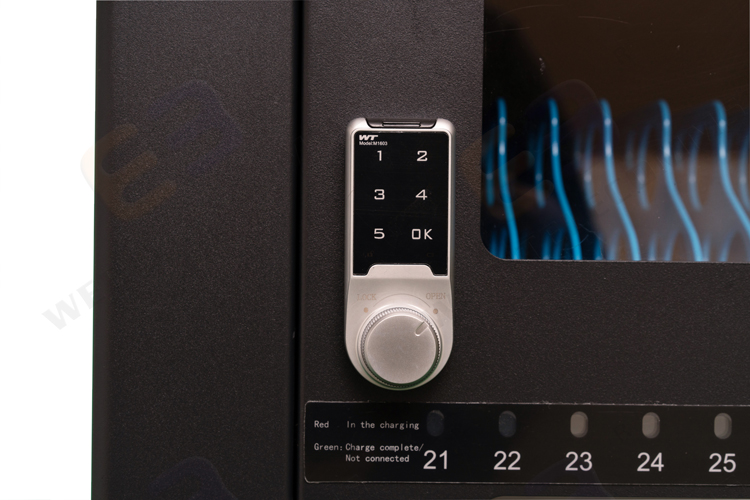

Welding structure , each section opened with code lock.

Ensure security for users.



Safety

Well-designed ventilation and continuous controlled fans keep devices cool

passivating treatment corner to avoid accident wounding , for user and equipment safety

5V 2.1A USB charging safe and quick


=Ships fully assembled=



Environment

Cooling/Ventilation: 3 x AC continuous operation fans keep equipment cool

Country-specific power cord = 2m length

Power System: input/output = customized as different countries

IP degree : IP-20



Parameter

Product Dimensions: 660X375X575MM(W*D*H) # size excluding castor or handle

Warranty: Five (5) years mechanical/workmanship; two (2) years electrical components; one (1) year cables



Application

Pad/Chrome book/Mobile IT devices/Ethernet switch

Interface

Country-specific standard

USB port

20-way

40-way

60-way

80-way

OEM

Input

110V,220V,240V

Output

110V,220Vor 24V/ SV. 2.1A

Outlet type

UK

BS1363

Germany

DIN49441

French

DIN49441

Australia

AS/NZS3112

IEC

C13/C14

C19/C20

Other

GB1002

BS546...

Standard

configuration

1. LED lights indicator

2. Extra socket and external USB charging port

3. Swivel castors with brakes

4. Fan cooling at side

5. Operating handle

6. Code lock

7. ON/OFF switch for controling

8. Multiple glass doors

Optional configuration

1. Leakage protection and lighting protection module

2. Other lights decoration

3. MDF function to avoid all kinds of cables pass into a mass

4. Audio amplifier,speaker,MP3,USB and microphone equipment

5. Charging with time controller

6. Over load protection 15A (PDU optional function)

7. Metal door

8. Other idea

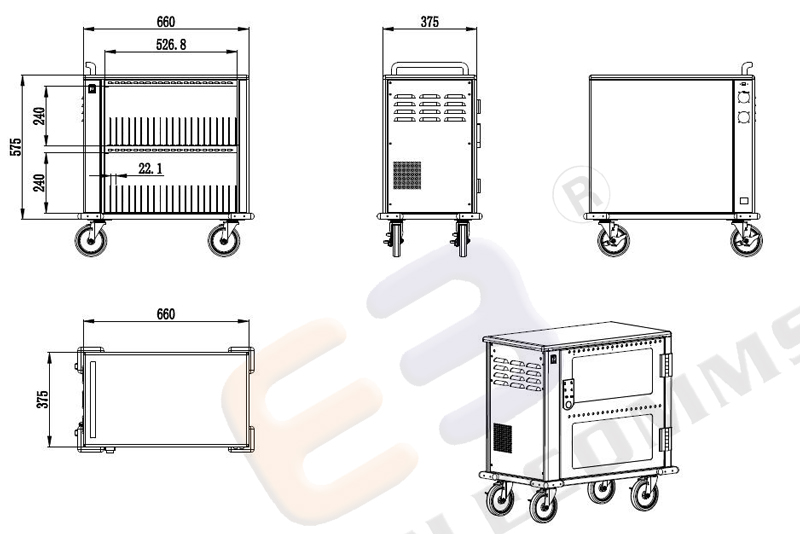

Drawing view ( 48way)

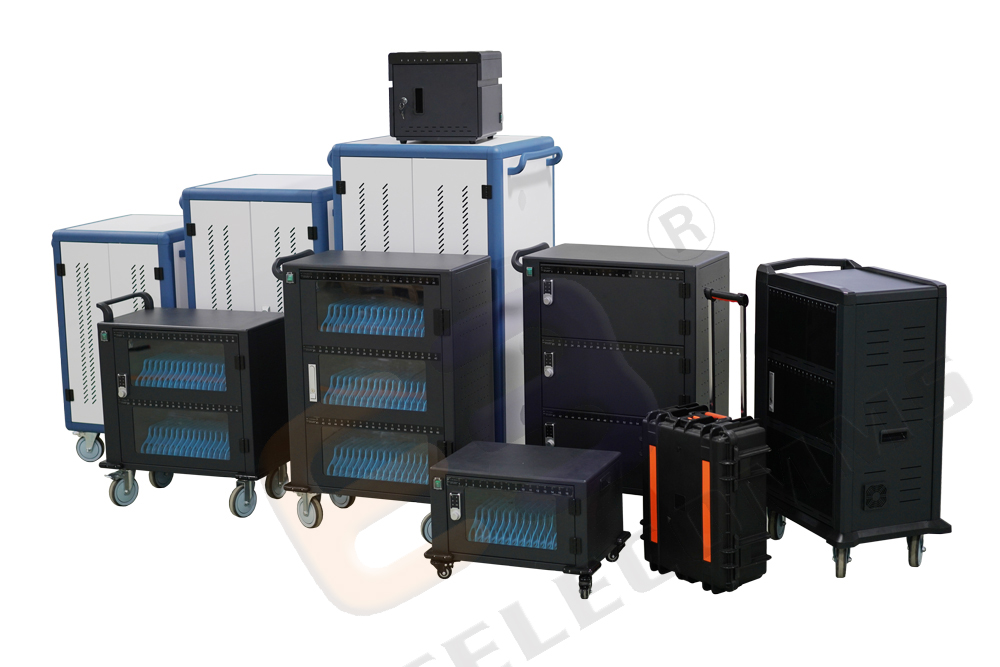

Other module ref.





=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most webitelecomms products is usually 5pcs, different items will be different. the MOQ will be indicated in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
