| Model: | WB-CA-41 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS,REACH |
| Materials: | PVC,Copper |
| Installation: | M6 Screw |
| Color: | Yellow&Green |
| Thickness: | 1.5mm2 |
| Application: | Grounding |
| Standard: | BS6004 |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,DAP,FCA,EXW | Production Capacity: | 10000 units per week |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | Ctns, Wooden cases |
| MOQ: | 200 Piece/Pieces | Delivery Date: | 15 days |
| Means of Transport: | Land, Ocean, Air | ||
Server rack used connective earthing cable
WB-CA-41A is used for grounding in server rack enclosure.
Suitable for AC and DC power supplies on telecom equipment and power applications where flexibility is required
Application
Keep 19" rack earthing from leakage.
Standards:
BS6004, IEC60227
Conductor:
1.5mm² , Class 5 flexible copper conductor to BS EN 60228 (previously BS 6360)
Insulation Material:
PVC (Polyvinyl Chloride) Type TI1 according to BS 7655
Insulation Colour:
brown, blue, red, and other colours.
Sheath Material:
PVC (Polyvinyl Chloride) Type 6 according to BS 7655
Sheath Colour:
brown, blue, red, and other colours.
Temperature Rating
-15°C to +70°C
Minimum Bending Radius
1.5 to 50mm²: 3*overall diameter
Above 70mm²: 4*overall diameter
Package
Webitelecomms neutral carton box packed
Plywood pallet for options
# Sample galary

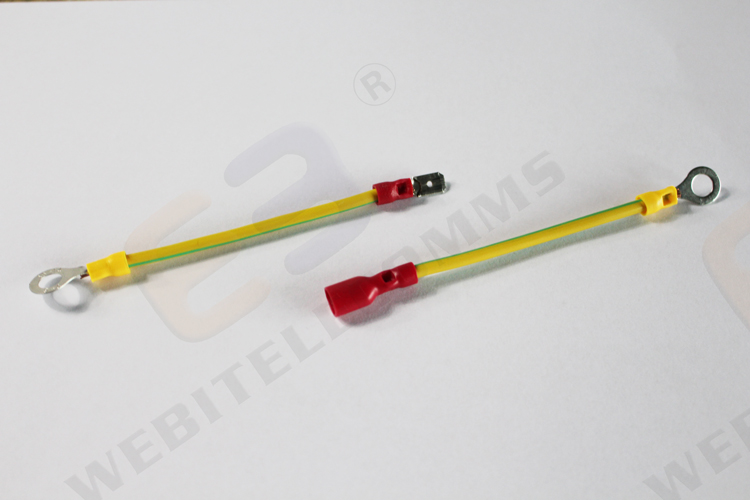

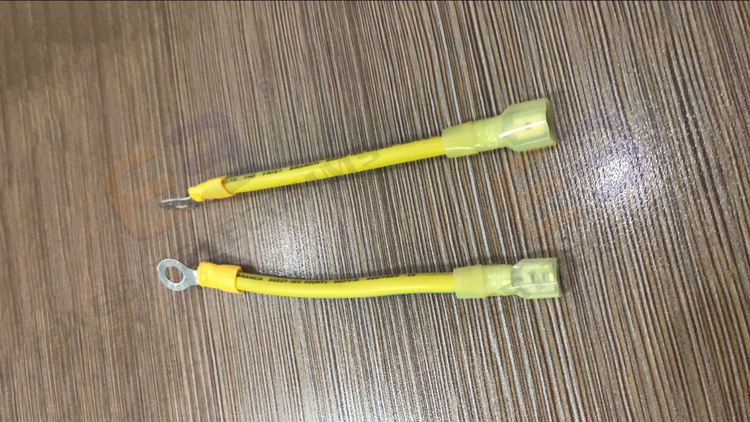

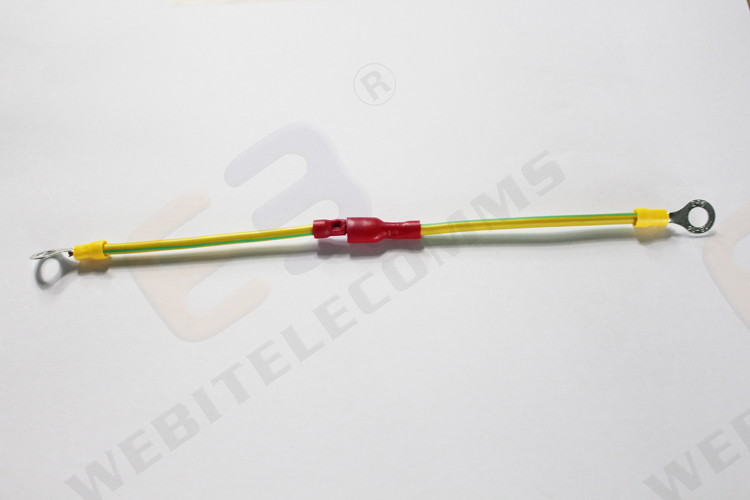

2.0mm²
1.5mm²
1.5mm² for WM rack
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
