| Model: | WB-CA-13 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,RoHS |
| Voltage: | 220~240V |
| Current: | 0.21A |
| noise: | 48 dBA |
| Airflow: | 80/98 CFM |
| Speed: | 3000 |
| Size: | 120x120x38mm |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,DDP,FCA,EXW | Production Capacity: | 5000 pcs/month |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | Cartons |
| MOQ: | 50 Piece/Pieces | Delivery Date: | 20 days |
| Means of Transport: | Land, Ocean, Air | ||

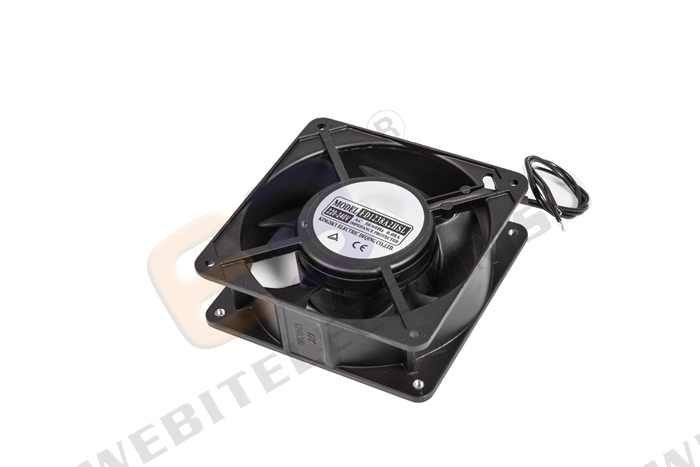

Network cabinet used AC cooling fan
Cooling fan is used to make a outgoing channel for exhaust airflow, make the cabinet inner environment to be cooling and suitable for network equipment ; WebiTelecomms generally use 2 sorts of fan dimensions for cabinets :
120*120*25 for wall cabinet
120*120*38 for floor cabinet
Features
1. Packaging Detail: white/color box, blister package
2. Normal Operating Temperature: 25°C-45°C
3. Life Expectancy: Dual Ball Bearing: 50000 hours
Sleeve Bearing and or oiliness : 20000-25000 hours
4. Standard: Fully CE, ROHS Approved
Parameter
| Model | Type | Volt | Fre | Current | Consumption | Speed | Air-flow | Air pressure | Noise | |
| Sleeve | Ball | VAC | Hz | Amps | Watts | RPM | CFM | inch-H2O | dBA | |
| 12038-110S | √ | 115 | 50/60 | 0.21/0.18 | 20/18 | 2550/2700 | 80/98 | 0.25/0.3 | 43/48 | |
| 12038-110B | √ | 20/18 | 2600/2800 | 82/100 | 0.26/0.32 | 34/39 | ||||
| 12038-220S | √ | 220-240 | 0.12/0.11 | 20/19 | 2550/1700 | 80/98 | 0.25/0.3 | 43/48 | ||
| 12038-220B | √ | 20/19 | 2600/2750 | 82/100 | 0.26/0.32 | 34/39 | ||||

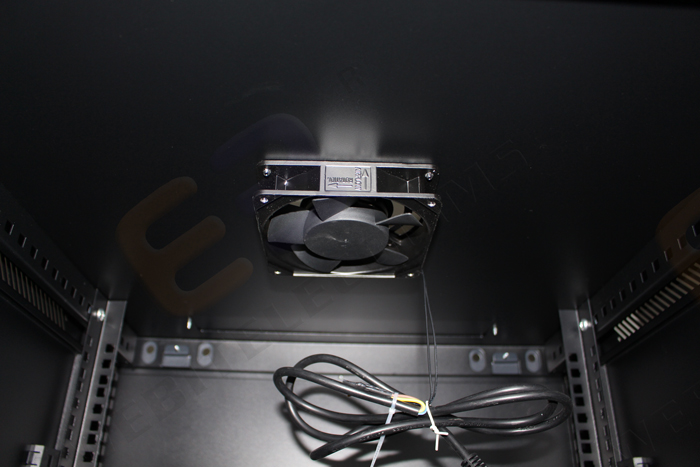

Installed to cabinet directly

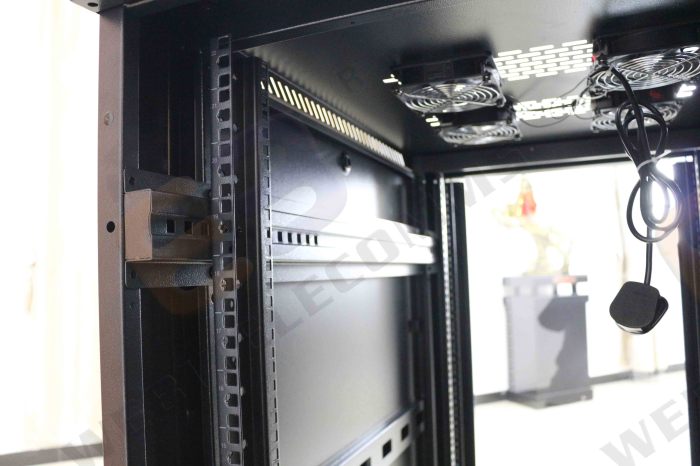

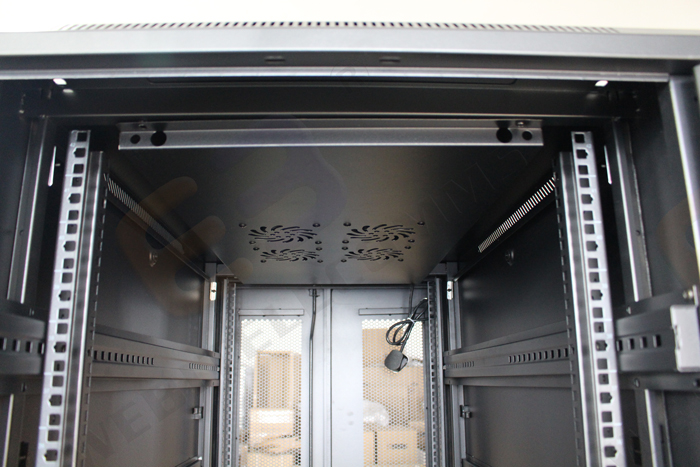

Fan tray used for floor cabinet

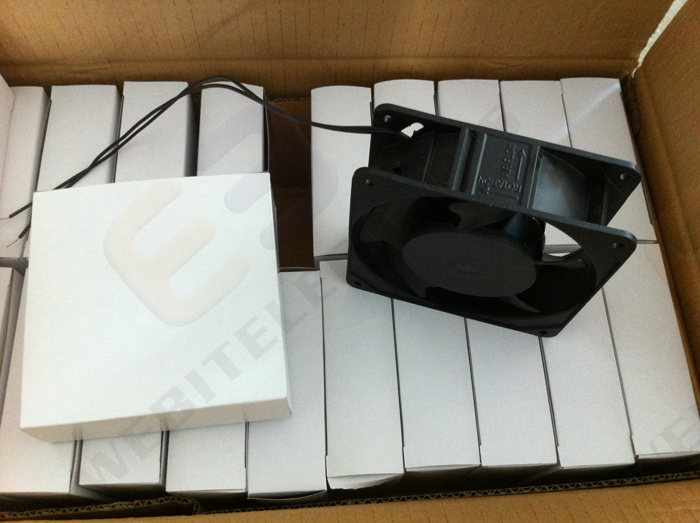

Carton package
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---the webitelecomms cooling fan MOQ is 50
pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
