WB-CA-41

Model:WB-CA-41
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Certificate:CE,ISO, ROHS,SGS,REACH
Materials:PVC,Copper
Installation:M6 Screw
Color:Yellow&Green
Thickness:1.5mm2
Application:Grounding
Standard:BS6004

Product Description


Payment & Shipping TermsSupply Capacity
Trade Term:FOB,CFR,CIF,DDP,DAP,FCA,EXWProduction Capacity:10000 units per week
Payment Terms:L/C, WU, T/T, PaypalPacking:Ctns, Wooden cases
MOQ:200 Piece/PiecesDelivery Date:15 days
Means of Transport:Land, Ocean, Air

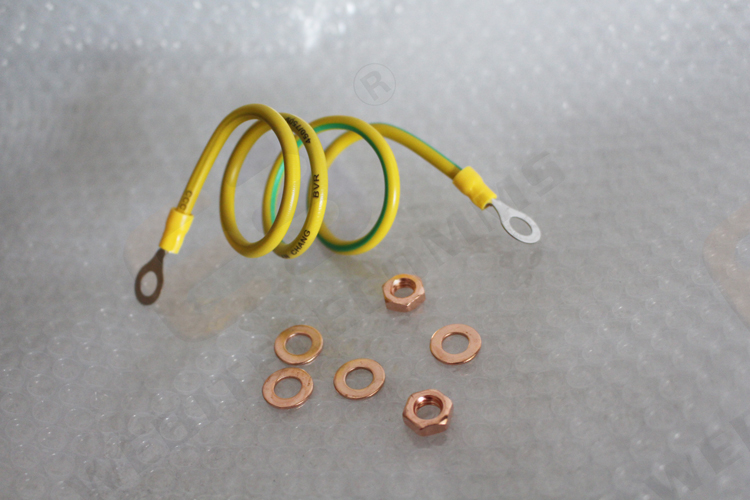

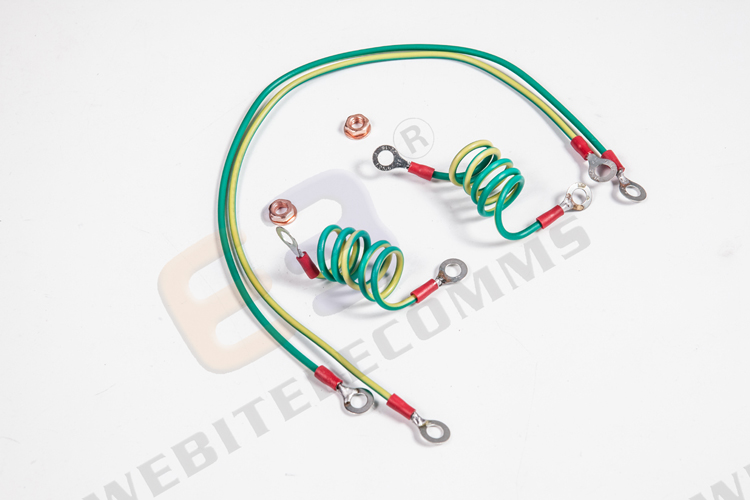

Server rack used earthing cable

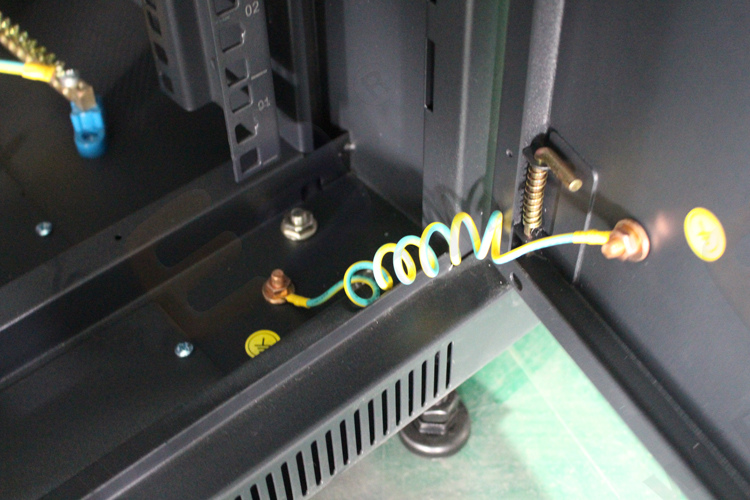

WB-CA-41 is used for grounding in server rack enclosure.

Suitable for AC and DC power supplies on telecom equipment and power applications where flexibility is required


Application

Keep 19" rack earthing from leakage.


Standards:
BS6004, IEC60227

Conductor:
1.5mm² , Class 5 flexible copper conductor to BS EN 60228 (previously BS 6360)

Insulation Material:
PVC (Polyvinyl Chloride) Type TI1 according to BS 7655

Insulation Colour:
brown, blue, red, and other colours.

Sheath Material:
PVC (Polyvinyl Chloride) Type 6 according to BS 7655

Sheath Colour:
brown, blue, red, and other colours.

Temperature Rating
-15°C to +70°C

Minimum Bending Radius
1.5 to 50mm²: 3*overall diameter
Above 70mm²: 4*overall diameter


Package
Webitelecomms neutral carton box packed
Plywood pallet for options


# Sample galary







=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
