| Model: | WB-CC-B |
| Brand: | Webitelecomms |
| Dimensions: | 589.3 x 381.2 x 822.3 mm |
| Application: | 48w DC charging |
| Voltage: | 220V C14 input |
| Input: | C13 cord |
| Outlet: | 5V 2.1A USB |
| Color: | Black |
| Charing No.s: | 16/32/48 way |
| Bearing capacity: | 200kg |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Production Capacity: | 3000 pcs per month |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | Exporting cartons |
| MOQ: | 10 Piece/Pieces | Delivery Date: | 30 days |
| Means of Transport: | Land, Ocean, Air | ||

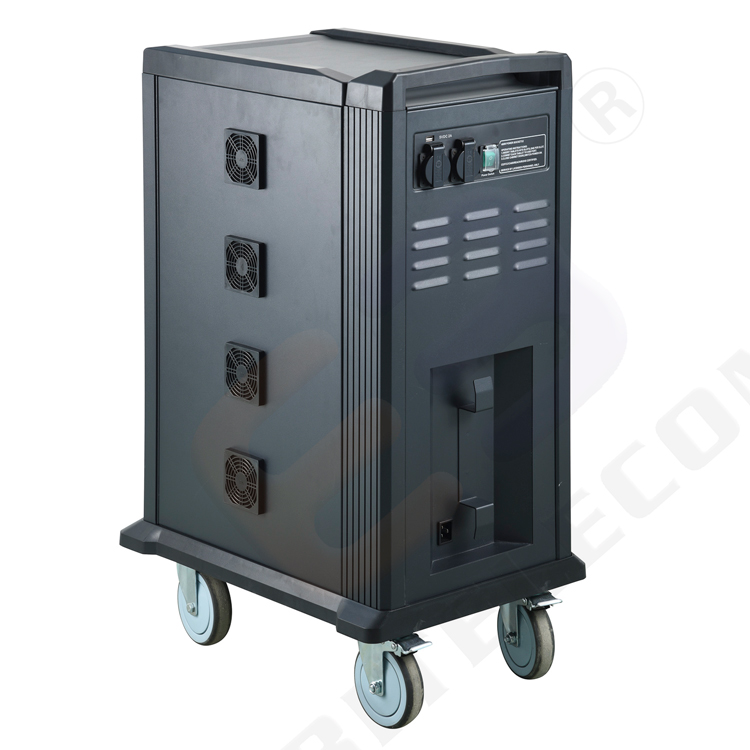

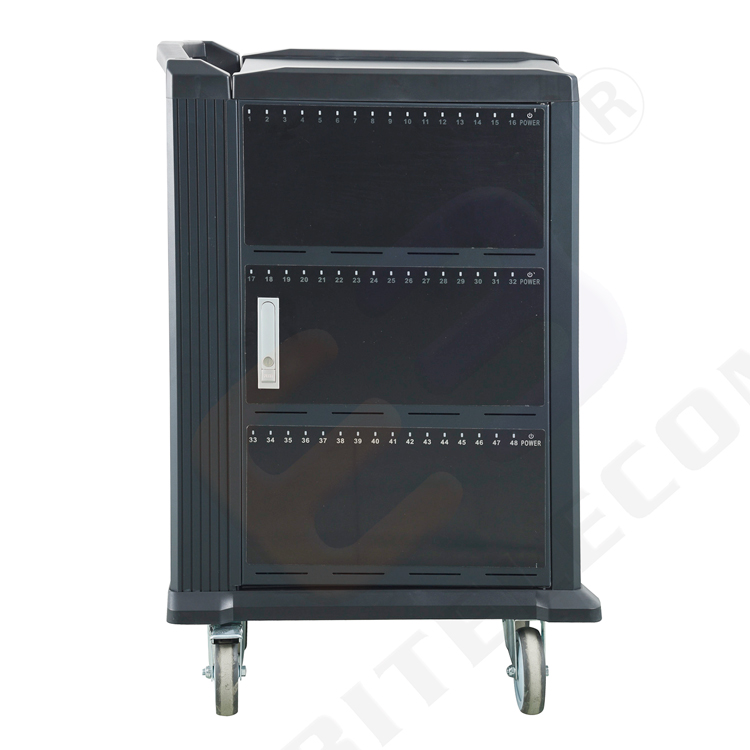

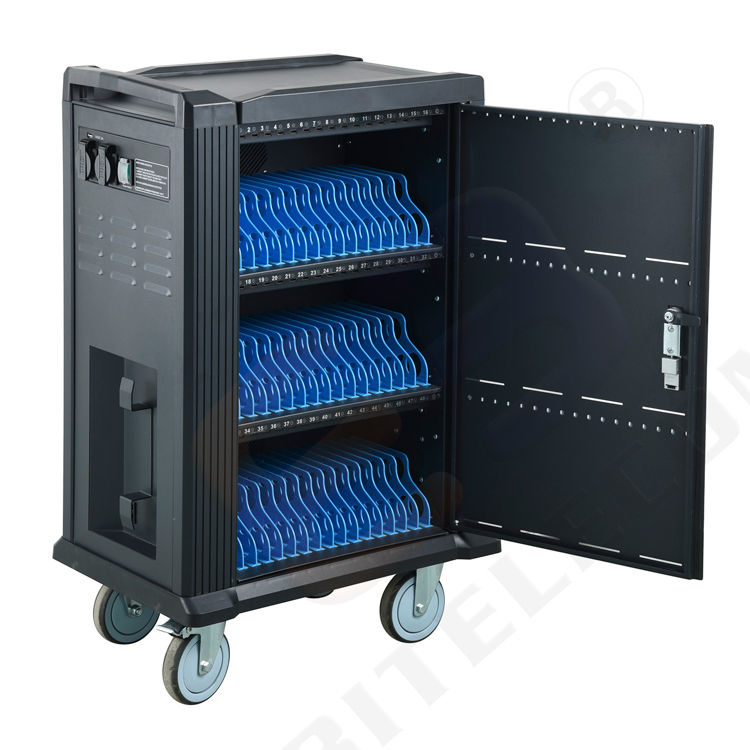

48 way DC charging trolley with plastic corner , soft touch
Description
This 48w DC charging cabinet is customized design to secure, protect and charge the IT devices;
Including Ipad, mini notebook , mobile phone, kindle in school,hospital,government department,Training places etc;
1. Build-in DC charging position :16/32/48 USB outlets
2. Security management: Silver handle lock operation for front and back maintenance and management , ensuring the security for the users.
3. Convenient access: all devices are placed vertically in the charging shelf, which is easy to remove and distribute
4. Integrated handle , without addtional space occupied
Whole cabinet creates capacity for you :

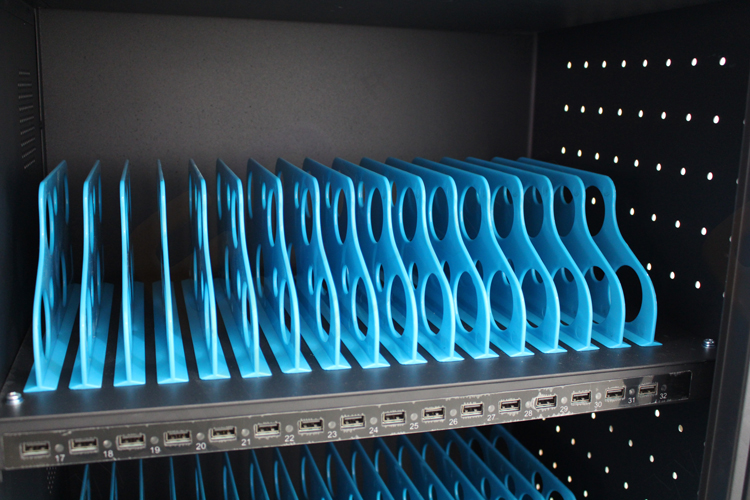

3 x fix layers - build with USB ports , Charging status monitored via LED light
200 mm layer distance , to make sure enough space
22mm gap between each slot, ensure IT device size up to 10.1 "
Country-specific power socket
Efficiency
5" rubber moving castor without noise
Cable management shelf provides well-organized charging appearance and convenient operation.

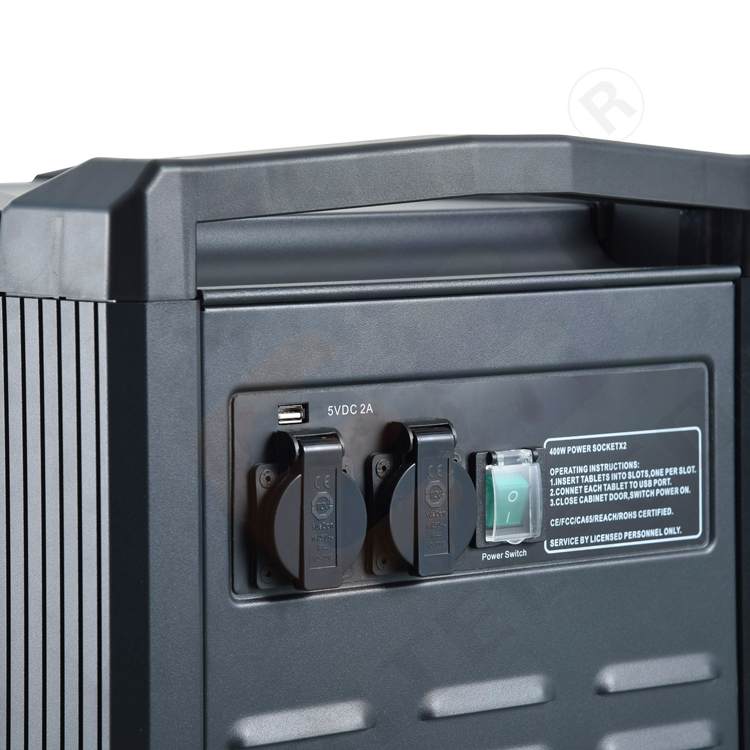

Extra temporary AC and DC outlet at side panel , for quick operating outside.
Side panel build with hook for power cord stoarge
Security
Welding structure , handle locks used for front & back opening
Ensure security for users.
Safety
Well-designed ventilation and continuous controlled fans keep devices cool
passivating treatment corner to avoid accident wounding , for user and equipment safety
Country-specific charging safe and quick
=Ships fully assembled=
Environment
Cooling/Ventilation: 4 x AC continuous operation fans keep equipment cool
Country-specific power cord = 2m length
Power System: input/output = customized as different countries
IP degree : IP-20
Parameter
Product Dimensions: 589.3 x 381.2 x 822.3 MM(W*D*H) # size excluding castor or handle
Warranty: Five (5) years mechanical/workmanship; two (2) years electrical components; one (1) year cables
Application | Pad/Chrome book/Mobile IT devices/Ethernet switch | ||||||
Interface | Country-specific standard | ||||||
USB port | 16-way | 32-way | 48-way | 64-way | OEM | ||
Input | 110V,220V,240V ; | ||||||
Output | 5V , 2.1A | ||||||
Outlet type | UK BS1363 | Germany DIN49441 | French DIN49441 | Australia AS/NZS3112 | IEC C13/C14 C19/C20 | Other GB1002 BS546... | |
Standard configuration | 1. Swivel castors with brakes 2. Fan cooling at side 3. Operating handle 4. Handle lock 5. Earthing cables 6. Power modules 7. LED monitor light 8. Extra build-in temporary outlet | ||||||
Optional configuration | 1. Leakage protection and lighting protection module 2. Other lights decoration 3. MDF function to avoid all kinds of cables pass into a mass 4. Charging with time controller 5. Glass door 6. Code lock 7. Other idea | ||||||

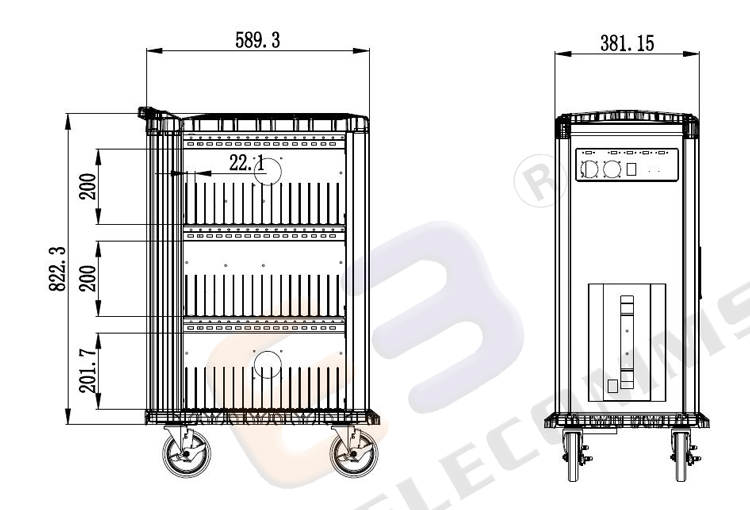

Drawing view

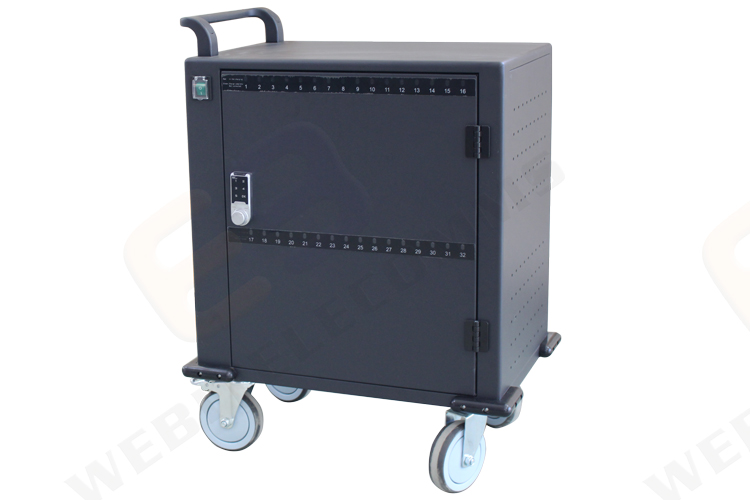

Other module ref.
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most webitelecomms products is usually 5pcs, different items will be different. the MOQ will be indicated in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
