WB-CC-E1

Model:WB-CC-E1
Brand:Webitelecomms
Dimensions:700 x 600 x 950
Application:30w AC charging
Voltage:110/220V input
Input:C13-C14 connecting
Outlet:Schuko & USB
Color:White & Blue
Charing No.s:10/20/30/40 way
Bearing capacity:   400kg


Product Description

Payment & Shipping TermsSupply Capacity
Trade Term:FOB,CFR,CIF,DDP,FCA,EXWProduction Capacity:3000 pcs per month
Payment Terms:L/C, WU, T/T, PaypalPacking:Exporting cartons
MOQ:10 Piece/PiecesDelivery Date:30 days
Means of Transport:Land, Ocean, Air


30 way AC&DC charging trolley with aluminum-alloy frame


Description

This alu-alloy frame charging cabinet is customized design to secure, protect and charge the IT devices;

Including Ipad, mini notebook , mobile phone, kindle in school,hospital,government department,Training places etc;






1. Build-in AC and DC charging position :10/20/30 USB and Schuko  ports ( Can be others )


2. Security management:  Silver handle lock operation for front and back maintenance and management , ensuring the security for the users.

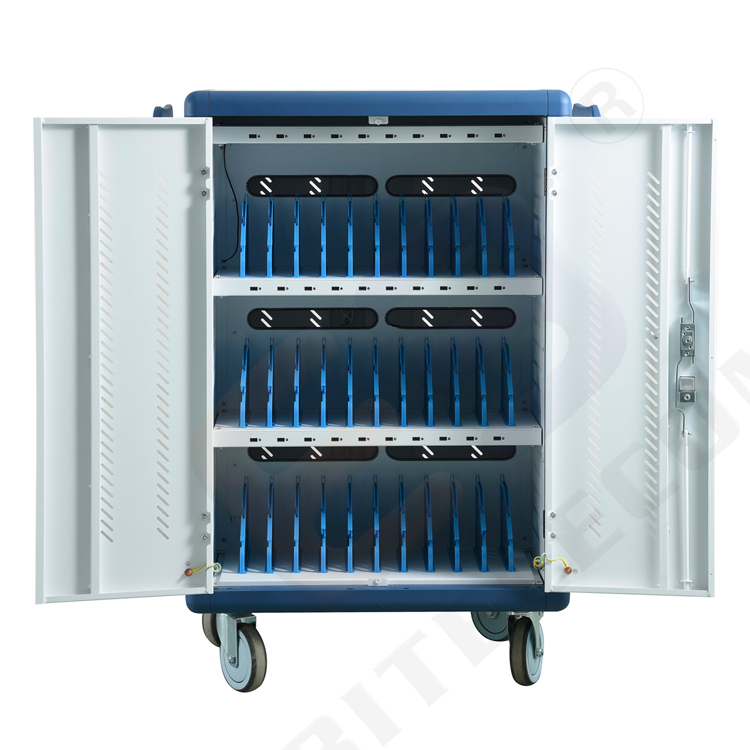

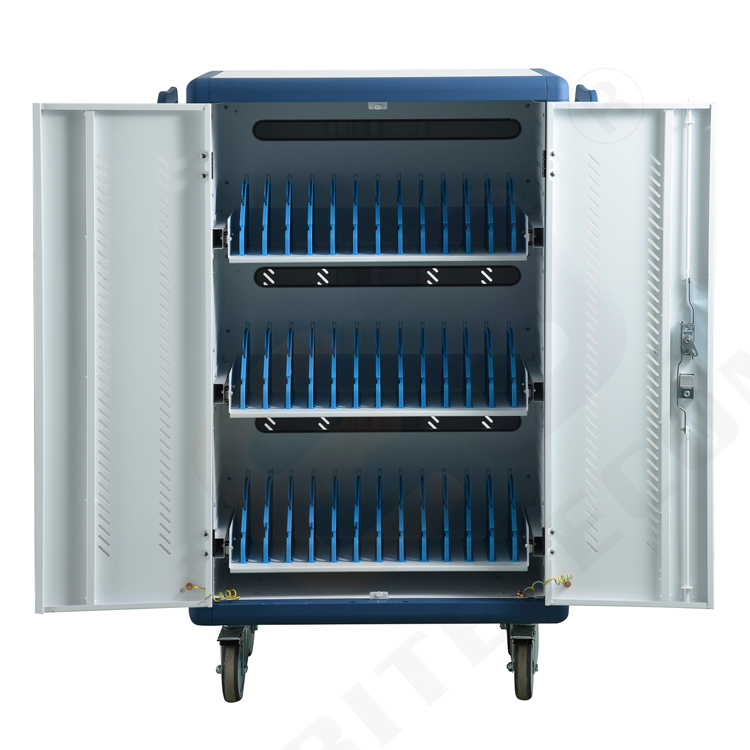

3. Convenient access: all devices are placed vertically in the charging shelf, which is easy to remove and distribute.

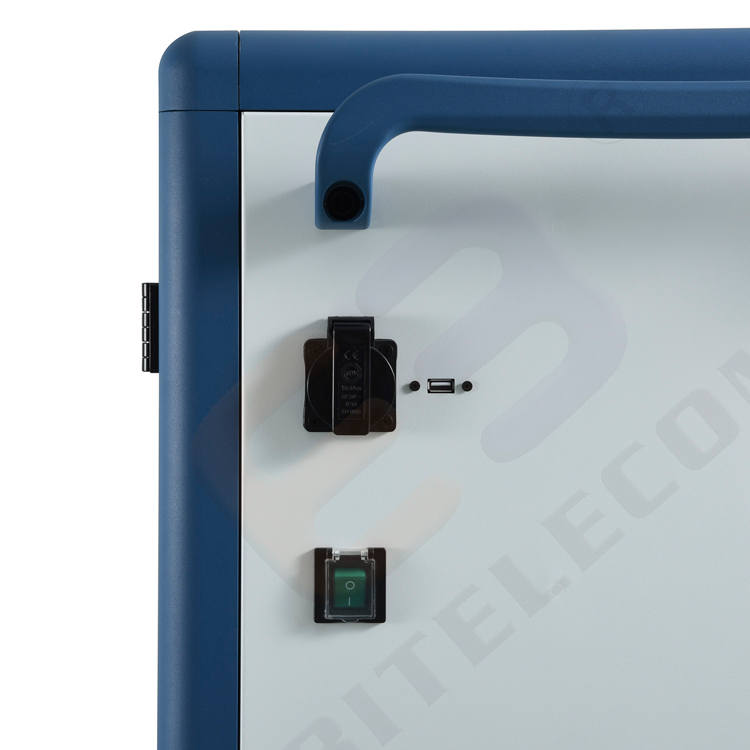

Soft touch handle , extra build-in outlet at body side




Whole cabinet creates capacity for you :

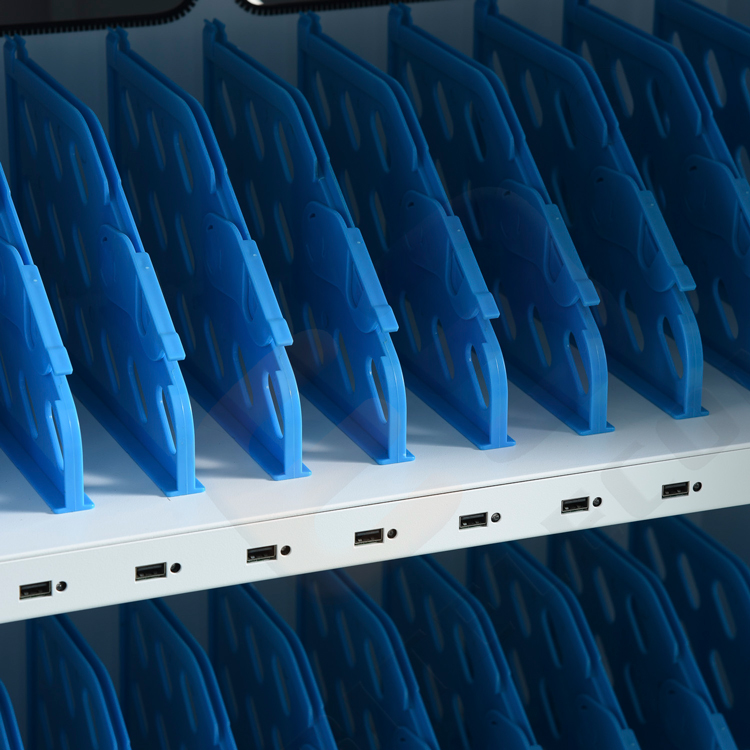

  • 3 x fix layers - build with USB ports , Maximum 30way charging at same time

250 mm layer distance , to make sure enough space

42 mm gap between each slot, ensure IT device size up to 14 " (15.6" optional)

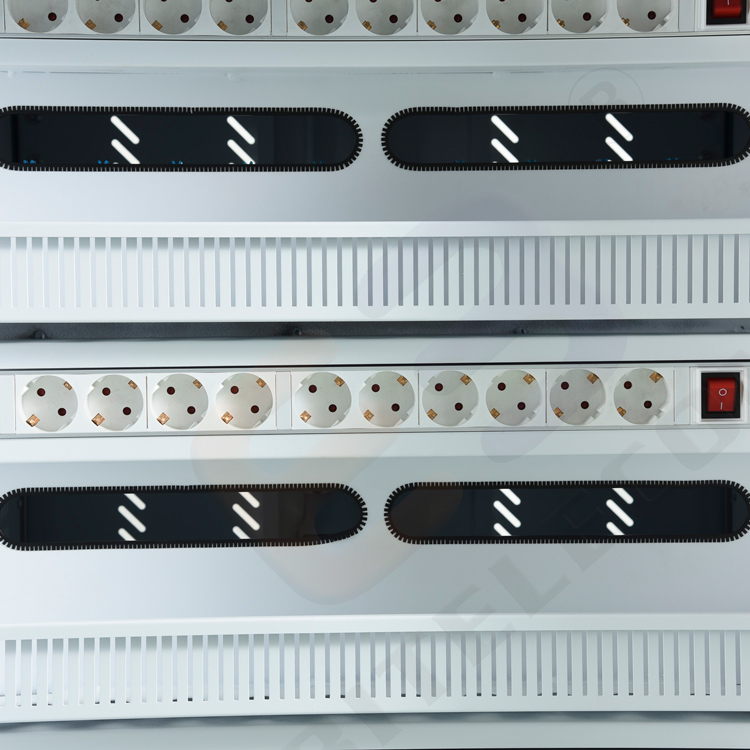

  • Country-specific power socket




Efficiency

5" rubber moving castor without noise

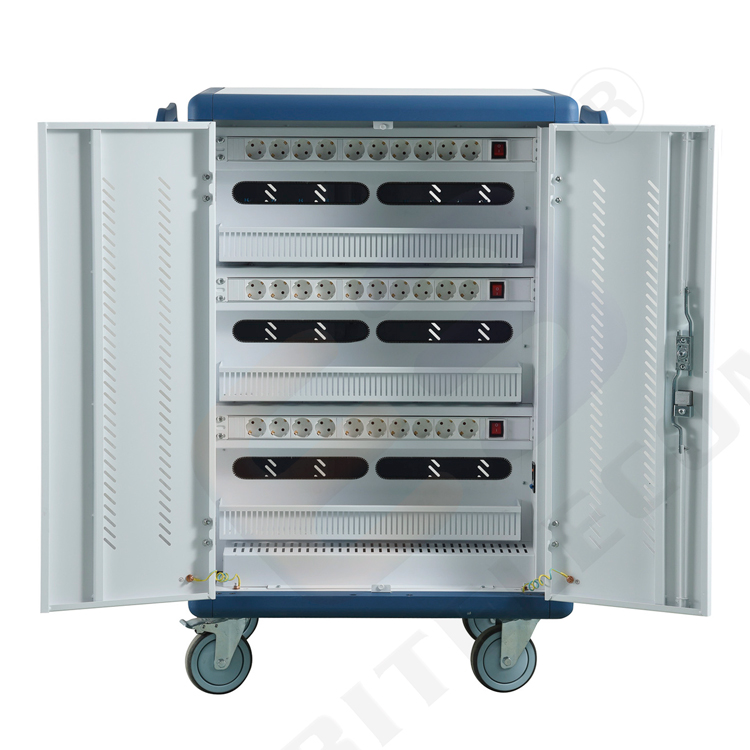

Cable management shelf provides well-organized charging appearance and convenient operation.

Each power module comes with adaptor stoarge tank with it.

Side panel punched with vented louver and holes




Security

Welding structure , handle locks used for front & back opening

Ensure security for users.



Safety

Well-designed ventilation and continuous controlled fans keep devices cool

passivating treatment corner to avoid accident wounding , for user and equipment safety

Country-specific charging safe and quick

Earthing for front & back

Leakage protector



=Ships fully assembled=



Environment

Cooling/Ventilation: 3 x AC continuous operation fans keep equipment cool

Country-specific power cord = 2m length

Power System: input/output = customized as different countries

IP degree : IP-20


Parameter

Product Dimensions: 700X600X950MM(W*D*H) # size excluding castor or handle

Warranty: Five (5) years mechanical/workmanship; two (2) years electrical components; one (1) year cables



Application

Pad/Chrome book/Mobile IT devices/Ethernet switch

Interface

Country-specific standard

USB port

10-way

20-way

30-way

40-way

OEM

Input

110V,220V,240V ;

Output

110V,220V,240V ; 5V, 2.1A

Outlet type

UK

BS1363

Germany

DIN49441

French

DIN49441

Australia

AS/NZS3112

IEC

C13/C14

C19/C20

Other

GB1002

BS546...

Standard

configuration

1. Swivel castors with brakes

2. Fan cooling at side

3. Operating handle

4. Handle lock

5. Earthing cables

6. Power modules

7. LED monitor light

8. Extra build-in temporary outlet

9. RCCB protection

Optional configuration

1. Other lights decoration

2. MDF function to avoid all kinds of cables pass into a mass

3. Charging with time controller

4. Glass door

5. Other idea

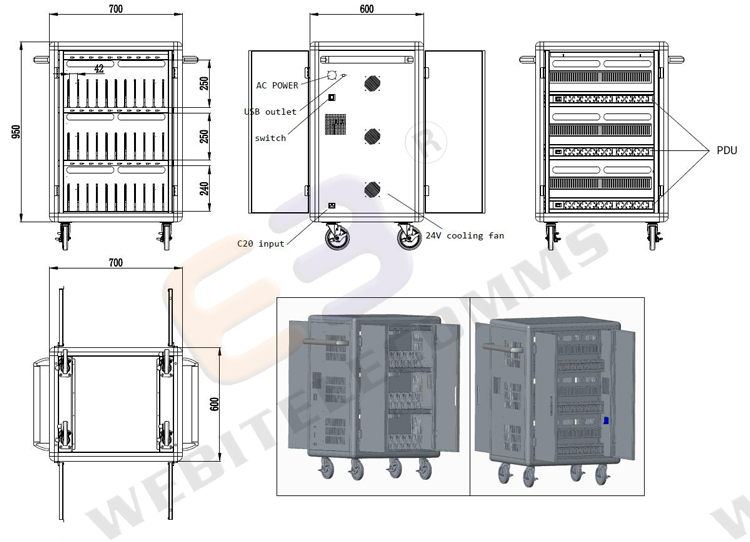

Drawing view



Other module ref.


=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most webitelecomms products is usually 5pcs, different items will be different. the MOQ will be indicated in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
