WB-PDU-08
Model: | WB-PDU-08 |
Place of Origin: | Zhejiang,China (Mainland) |
Application: | Commercial |
Grounding: | Standard Grounding |
Type: | Plug with Socket |
Brand Name: | Webitelecomms |
Rated Voltage: | 220~250V |
Rated Current: | 10A |
Certificate: | CE,ISO, ROHS.SGS |
Body materials: | Aluminum shell+ ABS model |
Height: | 1U or 1.5U |
Input: | GB1002 |
Output: | GB2099.3 |
Voltage: | 220~250V |
Current: | 10 Amp |
Max watt: | 2500W , and 4000W , 8000W options |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 1.0 USD | Production Capacity: | 500pcs/day |
Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | netrual package,... |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 7~15 days |
MOQ: | 50 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air |
Universal series rack mounted PDU strip
19" 1U/1.5U standard PDU socket, with leak-current protector
Aluminum-alloy shell,made from block burn PC,Guage:3G 14AWG+UL plug
According to customer request, we could add AC or DC display
Color: Black or silver
Children safty protect.
Braker protection, and fused.
Specifications
Rated current | 10A |
Rated load | 2500W |
Rated voltage | 250V |
Household voltage | 220V |
Number of sockets | 3 to 48 ways |
Size | 19"1.5U\1U |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*1.5mm2*2m |
Type of plug | GB1002 plug |
Degree of protection against electric shock | IP20 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |
1U 7-way universal outlet , switched

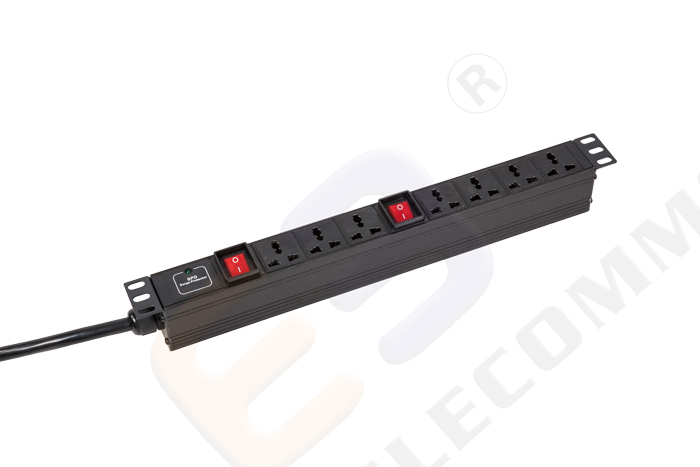

1U 7-way surged protected universal PDU, double switch

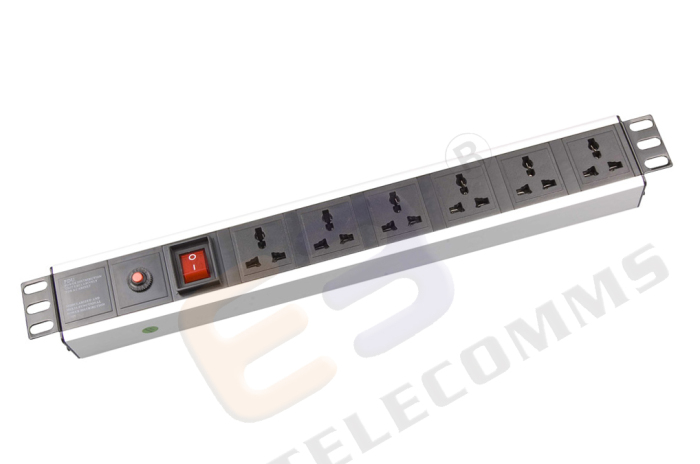

1.5U 6-way with over-loaded protection, switched
Usual Webitelecomms PDU optional function
Protection | On/off switch (defaulted) |
3-lights protection | |
1-light indictor | |
Surge protection | |
Fuse | |
Current Meter | |
Circuit breaker | |
Locking | |
Overload protector | |
NEON Light | |
Cables | PVC (defaulted) |
RUBBER | |
LSZH | |
Shell | Alu-alloy (defaulted) |
Plastic | |
SPCC | |
Mounting | 1U ears (defaulted) |
Revolving ears | |
Hook | |
Desktop |
# Installation
Package details
Carton size | 52*30*48.5cm |
Product box size | 52.5*7.5*5.5 cm |
Quantity in one carton | 25 pcs |
Metal enclosure | |
Gross weight for one carton | 23kg |
Net Weight for one carton | 21kg |
Plastic enclosure | |
Gross weight for one carton | 22kg |
Net Weight for one carton | 20kg |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF are all available as per needs.
3) What is the Loading Port?
--- Usually Ningbo or Shanghai port.
4) What is your MOQ?
---Most
of Webitelecomms PDU sold with 50 pcs
MOQ, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
