WB-PDU-01
Model: | WB-PDU-01 |
Place of Origin: | Zhejiang,China (Mainland) |
Application: | Commercial |
Grounding: | Standard Grounding |
Brand Name: | Webitelecomms |
Rated Voltage: | 250V |
Rated Current: | 16A |
Certificate: | CE,ISO, ROHS.SGS |
Housing materials: | Aluminum or plastic |
power cable: | 1.5mm2, 2m length |
Height: | 1U or 1.5U |
Installation: | Vertical or horizontal |
Input: | DIN49441 |
Output: | DIN47440 |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 1.0~200 USD | Production Capacity: | 500pcs/ day |
Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | cartons |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 7 days |
MOQ: | 50 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air | ||
19'' Germany series surge protected PDU socket
Power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power,
especially to racks of computers and networking equipment located within a data center.
Data centers face challenges in power protection and management solutions.
This is why many data centers rely on PDU monitoring to improve efficiency, uptime, and growth.
PDUs vary from simple and inexpensive rack-mounted power strips to larger floor-mounted PDUs with multiple functions
including power filtering to improve power quality,intelligent load balancing, and remote monitoring and control by LAN or SNMP.
◆ 1U, 9-way horizontal 19" international installation
◆ leak-current protector
◆ Aluminum-alloy shell,white color
◆ Modular made from uninflammable PC
◆ Children safety protect
Parametre
Rated current | 16A |
Rated load | 2550W |
Rated voltage | 250V |
Household voltage | 230V |
Number of sockets | 3 to 48 ways |
Size | 19" 1.5U\1U |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*1.5mm²*2m |
Type of plug | DIN49440 plug with UL |
IP rate | IP44 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |
=Sample show=
1U 8-way Black , switched

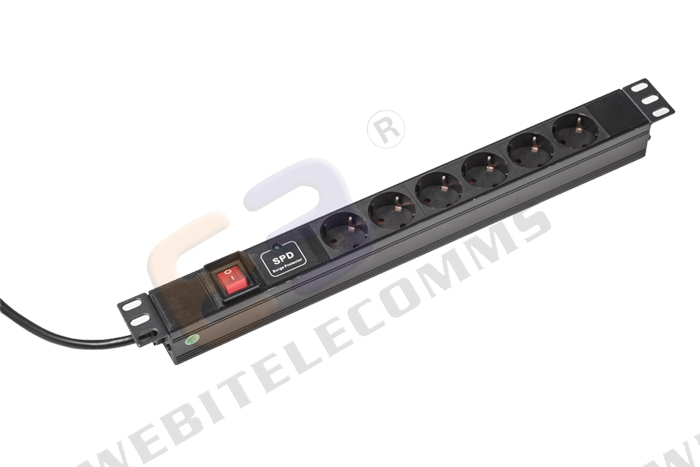

1U 6-way ,Black , Switched with surge protector
Usual Webitelecomms PDU optional function
| Protection | On/off switch (defaulted) |
| 3-lights protection | |
| 1-light indictor | |
| Surge protection | |
| Fuse | |
| Current Meter | |
| Circuit breaker | |
| Locking | |
| Overload protector | |
| NEON Light | |
| Cables | PVC (defaulted) |
| RUBBER | |
| LSZH | |
| Shell | Alu-alloy (defaulted) |
| Plastic | |
| SPCC | |
| Mounting | 1U ears (defaulted) |
| Revolving ears | |
| Hook | |
| Desktop |
# Installation
=Package details=
Carton size | 52*30*48.5cm |
Product box size | 52*7.5*5.5 cm |
Quantity in one carton | 25 pcs |
Metal enclosure | |
Gross weight for one carton | 23kg |
Net Weight for one carton | 21kg |
Plastic enclosure | |
Gross weight for one carton | 22kg |
Net Weight for one carton | 20kg |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) Can we can any other function ?
---Yes,Customized requirements is welcome.
3) What's your MOQ and how you suggest to delivery it?
---25pcs(1 carton) , Delivered by EXPRESS service, 3~5 days delivery time
4) Do you have CE for UK market?
---Sure,it is basic quality requirement of products. all PDUs have CE,RoHS to meet European Market's needs.
5) Can you produce 10" standard PDU for smart SOHO cabinet?
---10" , 19", non-19" all can be done as per your needs.
6) What is the Loading Port?
--- Usually Ningbo or Shanghai port.
7) What is your MOQ?
---Most
of Webitelecomms PDU sold with 50 pcs
MOQ, different items will be different. We have indicated the MOQ for each item in the price list.
8) Any certifications ?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
