Model: | WB-PDU-USB |
Place of Origin: | Zhejiang,China (Mainland) |
Application: | Commercial |
Grounding: | Standard Grounding |
Type: | Plug with Socket |
Brand Name: | Webitelecomms |
Rated Voltage: | 220~250V |
Rated Current: | 13A |
Materials: | Aluminum shell+ PC |
Height: | 1U |
Input: | BS1363 |
Output: | BS1363 and USB2.0 |
Max power: | 2550W |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 30.0 USD | Production Capacity: | 5000 units per month |
Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | standard cargo packing |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 25 days |
MOQ: | 10 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air | ||

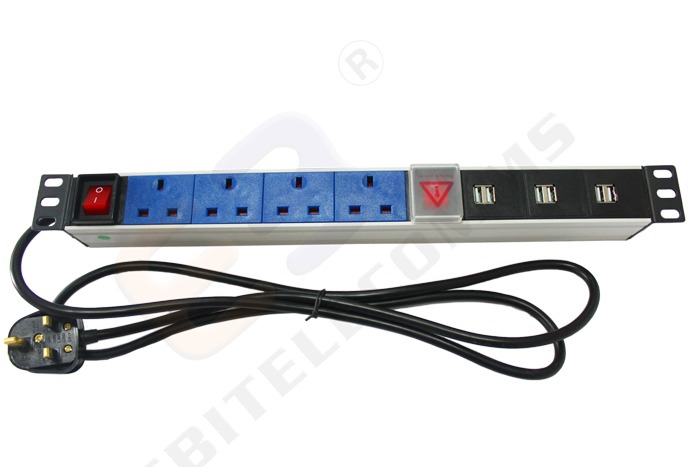

USB PDU , free combo with contry specific outlet
Power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power.
especially to racks of computers and networking equipment located within the data center.
Data centers face challenges in power protection and management solutions.
Many rely on PDU monitoring to improve efficiency, uptime, and growth.
For Home/office's network and security needs, Expanded USB port creates its possibility to resident application.
Furthermore, Standalone USB port comes with convenient operation for a wide range of network and telecom equipments.
◆ 1U, horizontal 19" international installation
◆ leak-current protector
◆ Aluminum-alloy shell,white color
◆ Modular made from uninflammable PC
◆ Children safety protect
◆ Break protection, and fused
Parameter
Outlet | 13A Max current | BS1363(90°) socket |
Input | 220~250V | BS1363(90°) plug |
Max output power | 2550W |
USB outlet | 5V, 2A(1.5A optional) USB 2.0 |
Guage | H05VV-F3G*1.5mm2*2M length |
Additional application | 2 X Switches |
IP rate | IP-20 |
Provision for earthing | Standard earthing contact |
Type of connections | Welded-solder |
Mounting application | 19" rack horizontal installation |

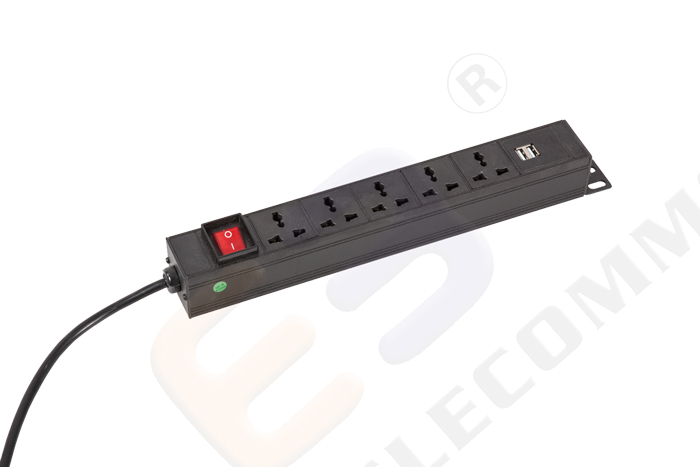

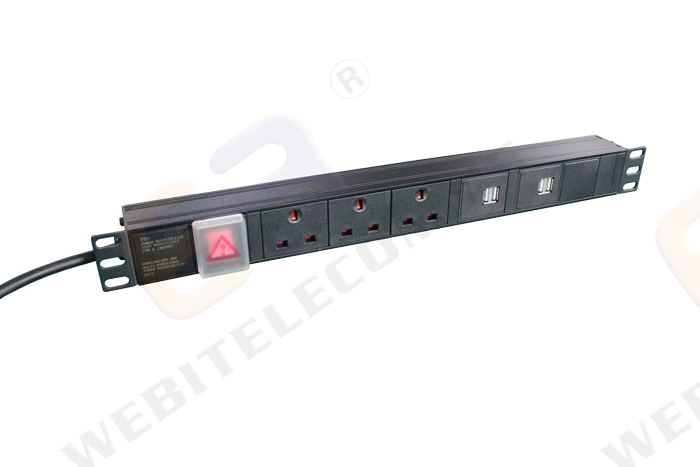

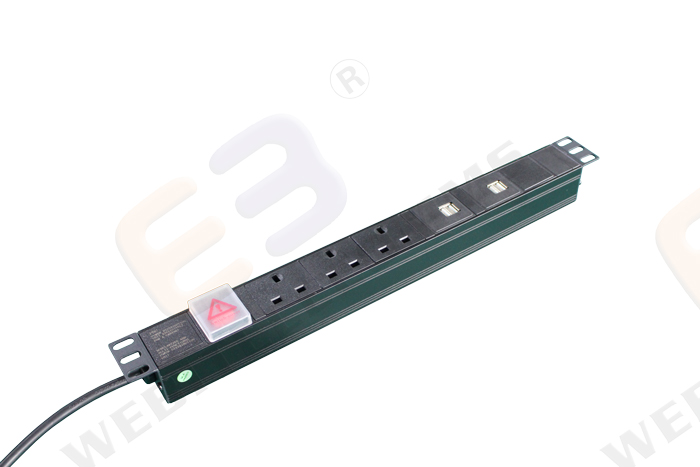

Different outlet option & combo, different color is available

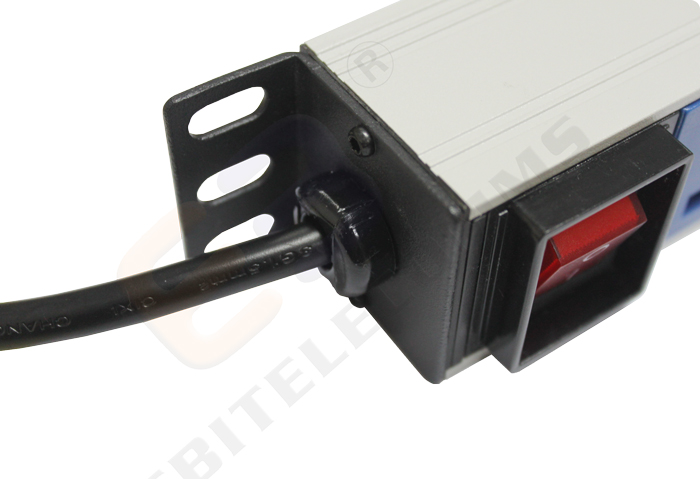

Cable routing
Usual Webitelecomms PDU optional function
| Protection | On/off switch (defaulted) |
| 3-lights protection | |
| 1-light indictor | |
| Surge protection | |
| Fuse | |
| Current Meter | |
| Circuit breaker | |
| Locking | |
| Overload protector | |
| NEON Light | |
| Cables | PVC (defaulted) |
| RUBBER | |
| LSZH | |
| Shell | Alu-alloy (defaulted) |
| Plastic | |
| SPCC | |
| Mounting | 1U ears (defaulted) |
| Revolving ears | |
| Hook | |
| Desktop |
# Installation
Package details
Carton size | 52*30*48.5cm |
Product box size | 52.5*7.5*5.5 cm |
Quantity in one carton | 25 pcs |
Metal enclosure | |
Gross weight for one carton | 23kg |
Net Weight for one carton | 21kg |
Plastic enclosure | |
Gross weight for one carton | 22kg |
Net Weight for one carton | 20kg |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) Can I require UK PDU with 5A fused
---Yes,Customized requirements is welcome.
3) What's your MOQ and how you suggest to delivery it?
---25pcs(1 carton) , Delivered by EXPRESS service, 3~5 days delivery time
4) Do you have CE for UK market?
---Sure,it is basic quality requirement of products. all PDUs have CE,RoHS to meet European Market's needs.
5) Can you produce 10" standard PDU for smart SOHO cabinet?
---10" , 19", non-19" all can be done as per your needs.
6) What is the Loading Port?
--- Usually Ningbo or Shanghai port.
7) What is your MOQ?
---Most
of Webitelecomms PDU sold with 50 pcs
MOQ, different items will be different. We have indicated the MOQ for each item in the price list.
8) Any certifications ?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
