WB-PDU-04

Model:

WB-PDU-04

Place of Origin:

Zhejiang,China (Mainland)

Application:

Commercial

Grounding:

Standard Grounding

Type:

Plug with Socket

Brand Name:

Webitelecomms

Rated Voltage:

220~250V

Rated Current:

13A

Certificate:

CE,ISO, ROHS.SGS

Body materials:

Aluminum shell+ ABS model

Height:

1U or 1.5U

Input:

BS1363

Output:

BS1363

Voltage:

220~250V

Current:

10 Amp

Max watt:

2500W , and 4000W , 8000W options


Product Description

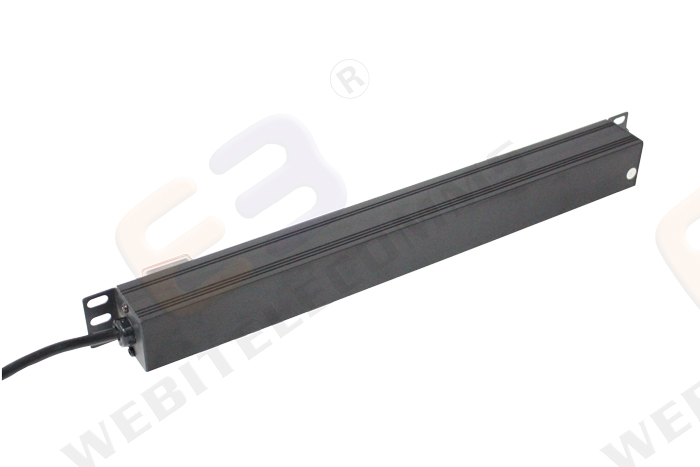

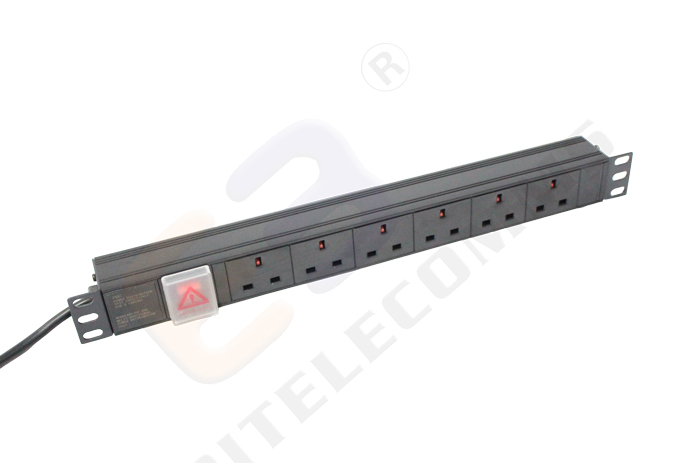

Rack mountable 6-way UK switched PDU


Power distribution unit (PDU)  is a device fitted with multiple outputs designed to distribute electric power.

especially to racks of computers and networking equipment located within the data center.

Data centers face challenges in power protection and management solutions.

Many rely on PDU monitoring to improve efficiency, uptime, and growth.

For Home/office's network and security needs, Expanded USB port creates its possibility to resident application.

Furthermore, Standalone USB port comes with convenient operation for a wide range of network and telecom equipments.


  • 19" 1U standard PDU socket, with on/off switch

  • Aluminum-alloy shell,made from block burn PC

  • Color: Black defaulted ( Silver for optional)

  • Children safty protecting


Parameter

Rated current

13A Max.

Rated load

2500W

Rated voltage

220~250V

Household voltage

230V

Number of sockets

3 to 48 ways

Size

19" 1U Horizontal

Shell material

Uninflammable PC module, Aluminium alloy shell

Type of cable

H05VV-F3G*1.5mm²*2M length

Type of plug

BS1363 plug

IP rate

IP44

Provision for earthing

With earting contact

Method of connecting the cable

Non-rewirable

Type of connections

Welded-solder

Degree of protection against electric shock

Normal protection

Existence of shutters

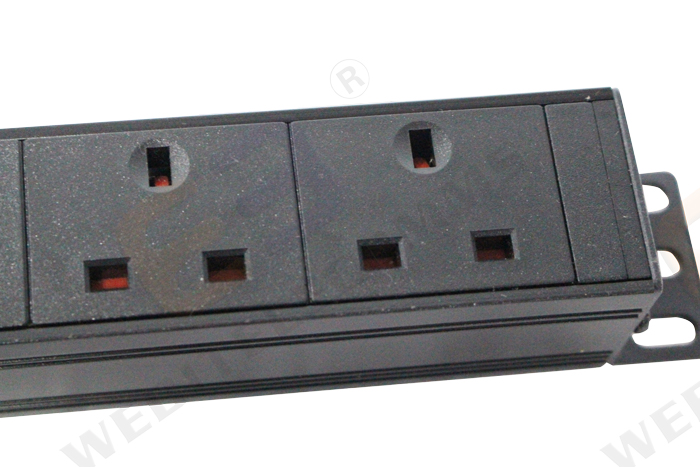

With shutters

Method of application-mounting

Portable type





Usual Webitelecomms PDU optional function

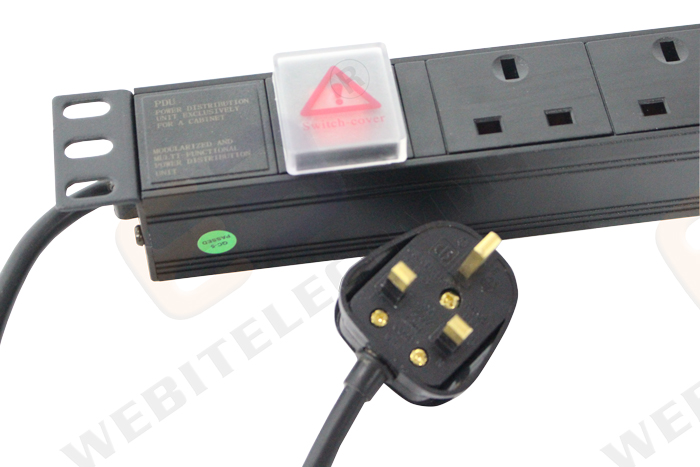

ProtectionOn/off switch (defaulted)
3-lights protection
1-light indictor
Surge protection
Fuse
Current Meter
Circuit breaker
Locking
Overload protector
NEON Light
CablesPVC (defaulted)
RUBBER
LSZH
ShellAlu-alloy (defaulted)
Plastic
SPCC

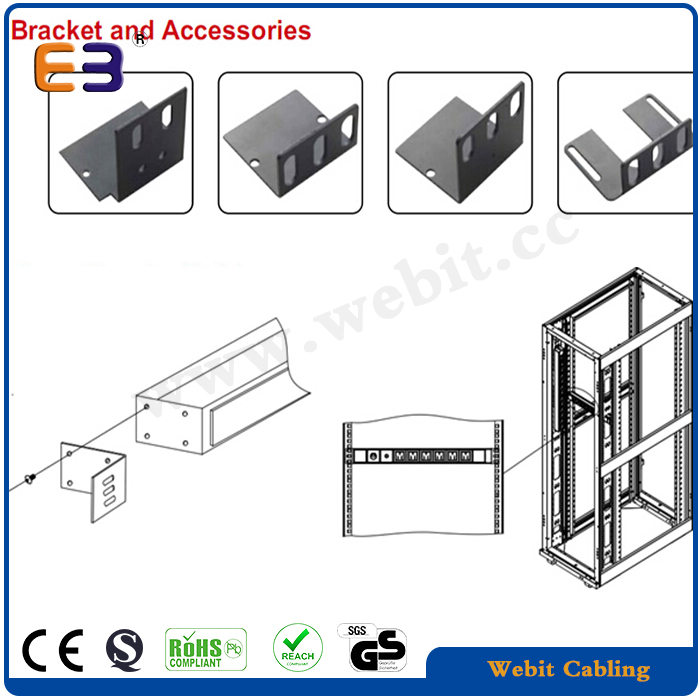

Mounting1U ears (defaulted)
Revolving ears
Hook
Desktop

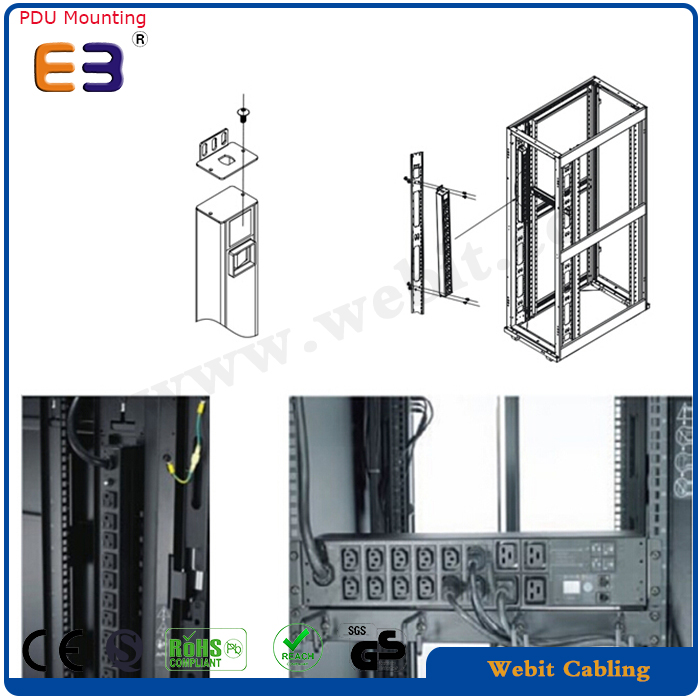

# Installation

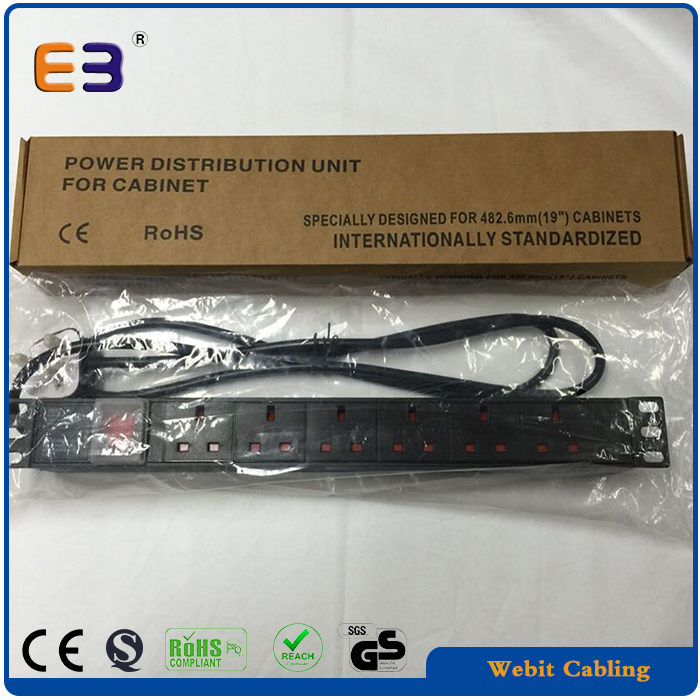

Package details

Carton size

52*30*48.5cm

Product box size

52.5*7.5*5.5 cm

Quantity in one carton

25 pcs

Metal enclosure

Gross weight for one carton

23kg

Net Weight for one carton

21kg

Plastic enclosure

Gross weight for one carton

22kg

Net Weight for one carton

20kg


=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)
Can I require UK PDU with 5A fused

---Yes,Customized requirements is welcome.



3)   What's your MOQ and how you suggest to delivery it?

---25pcs(1 carton) , Delivered by EXPRESS service, 3~5 days delivery time



4)  Do you have CE for UK market?

---Sure,it is basic quality requirement of products. all PDUs have CE,RoHS to meet European Market's needs.



5)  Can you produce 10" standard PDU for smart SOHO cabinet?

---10" , 19", non-19" all can be done as per your needs.


6)    What is the Loading Port?
--- Usually Ningbo or Shanghai port.

7)    What is your MOQ?
---Most of Webitelecomms PDU sold with 50 pcs MOQ, different items will be different. We have indicated the MOQ for each item in the price list.

8)    Any certifications ?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
