WB-PDU-03
Model: | WB-PDU-03 |
Place of Origin: | Zhejiang,China (Mainland) |
Application: | Commercial |
Grounding: | Standard Grounding |
Type: | Plug with Socket |
Brand Name: | Webitelecomms |
Rated Voltage: | 250V |
Rated Current: | 10A |
Certificate: | CE,RoHS,ISO |
Materials: | Aluminum shell+ PC module |
Height: | 1U or 1.5U |
Input: | AS/NZS3112 |
Output: | AS/NZS3112 |
Voltage: | 250V |
Current: | 16AMP |
Max watt: | 2500W / 4000W for industrial |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 1.0~200USD | Production Capacity: | 500 pcs/ day |
Trade Term: | FOB,CFR,CIF,FCA,EXW | Packing: | Carton |
Payment Terms: | L/C, T/T | Delivery Date: | 7~15 Days |
MOQ: | 20 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air |

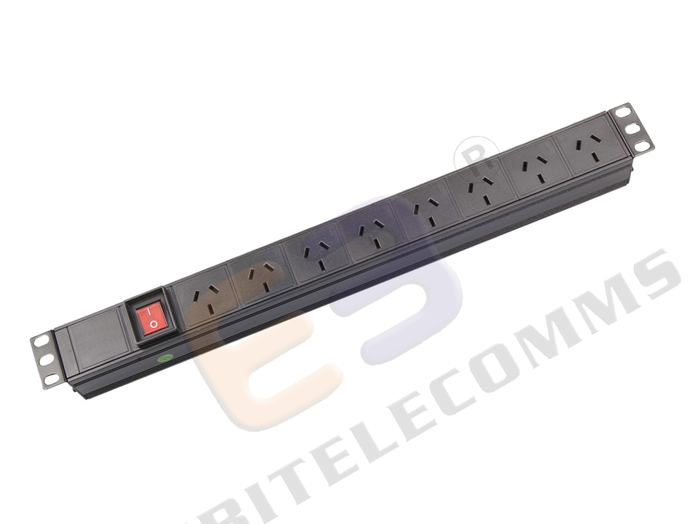

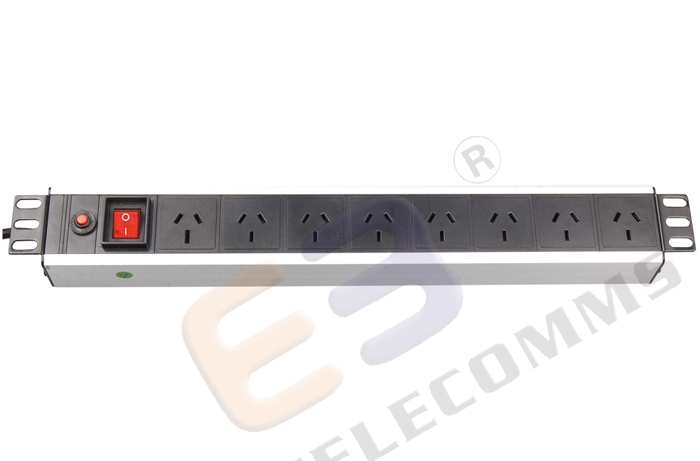

Australia series rack pdu strip
19" 1U/1.5U standard , with leak-current protector
Aluminum-alloy shell,made from block burn PC
According to customer request, we could add AC or DC display
Color: Black or silver
Children safty protect
Specifications
Rated current | 10A |
Rated load | 2500W |
Rated voltage | 250V |
Household voltage | 230V |
Number of sockets | 3 to 48 ways |
Size | 19" 1.5U\1U |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*1.5mm²*2m |
Type of plug | AS/NZS3112 plug with UL |
IP rate | IP44 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |
=SAMPLE show=
Usual Webitelecomms PDU optional function
Protection | On/off switch (defaulted) |
3-lights protection | |
1-light indictor | |
Surge protection | |
Fuse | |
Current Meter | |
Circuit breaker | |
Locking | |
Overload protector | |
NEON Light | |
Cables | PVC (defaulted) |
RUBBER | |
LSZH | |
Shell | Alu-alloy (defaulted) |
Plastic | |
SPCC | |
Mounting | 1U ears (defaulted) |
Revolving ears | |
Hook | |
Desktop |
# Installation
=Package details=
Carton size | 52*30*48.5cm |
Product box size | 52*7.5*5.5 cm |
Quantity in one carton | 25 pcs |
Metal enclosure | |
Gross weight for one carton | 23kg |
Net Weight for one carton | 21kg |
Plastic enclosure | |
Gross weight for one carton | 22kg |
Net Weight for one carton | 20kg |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) Can we can any other function ?
---Yes,Customized requirements is welcome.
3) What's your MOQ and how you suggest to delivery it?
---25pcs(1 carton) , Delivered by EXPRESS service, 3~5 days delivery time
4) Do you have CE for UK market?
---Sure,it is basic quality requirement of products. all PDUs have CE,RoHS to meet European Market's needs.
5) Can you produce 10" standard PDU for smart SOHO cabinet?
---10" , 19", non-19" all can be done as per your needs.
6) What is the Loading Port?
--- Usually Ningbo or Shanghai port.
7) What is your MOQ?
---Most
of Webitelecomms PDU sold with 50 pcs
MOQ, different items will be different. We have indicated the MOQ for each item in the price list.
8) Any certifications ?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
