Model: | WB-AI9104 |
Place of Origin: | Zhejiang,China (Mainland) |
Power: | DC9V 1000mA |
Dimensions: | 432 x 155 x 44 mm |
Housing: | Metal |
Operating temperature: | -10°C~50°C |
Port: | 4 VGA port |
Video resolution: | 1600 x 900 |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 1.0 USD | Production Capacity: | 5000 pcs per month |
Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | Cartons |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | Within 30 days |
MOQ: | 2 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air | ||

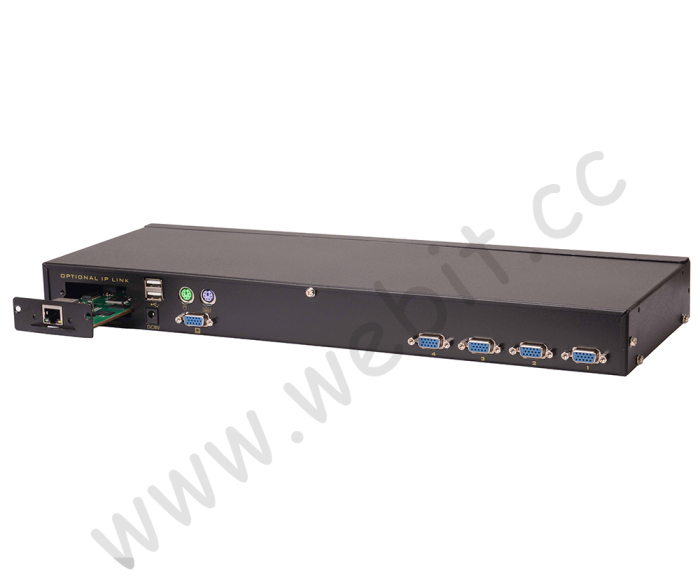

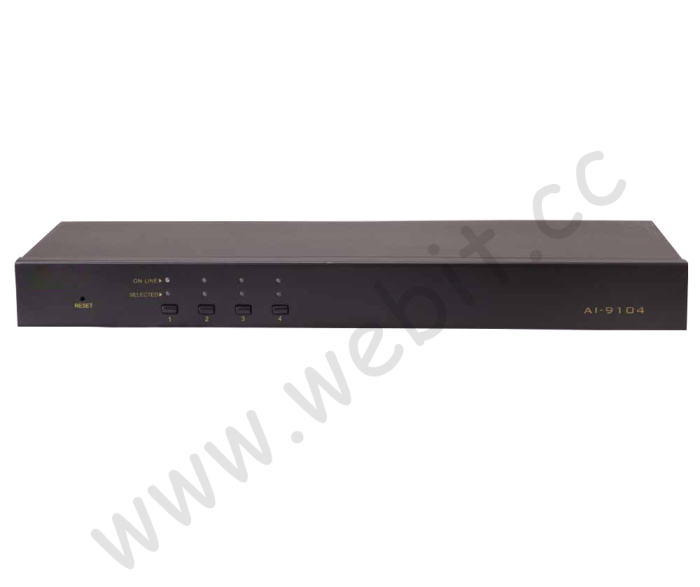

4 port VGA KVM console
Descriptions
Supports USB/PS/2 with OSD menu, which controls 4 PC/4 servers
One full set of monitor, keyboard, mouse-rack mountable, PC connection ports supports PS/2 and USB
Console port: supports USB and PS/2
Features:
One console controls 4 computers
Be compatible with USB / PS/2 keyboard and mouse in console and PS/2, USB keyboard and mouse in computer.
Computer selection via front panel switches and OSD
LEDs display for easy status monitoring
Auto Scan Mode for monitoring all computers
Superior video quality
Easy installation – no software required
Hot pluggable – add or remove computers for maintenance without powering down the switch
Support Windows, Solaris etc
IP Module RJ45 Port, could realize remote control
Type | WB-AI-9104DU | |
Computer connections | 4 | |
CPU port selection | Front panel switches/OSD menu | |
Console connectors | Keyboard | 1 x PS/2 female (purple), 1 x USB Female |
Mouse | 1 x PS/2 female (green), 1 x USB Female | |
Video | 1 x HD-15 female (blue) | |
CPU connectors | Keyboard | 1 x PS/2 female (purple), 1 x USB female |
Mouse | 1 x PS/2 female (green), 1 x USB female | |
Video | 4 x HDB-15 male (blue) | |
LED’s | On Line | 4 |
Selected | 4 | |
IP Port | Net Connection | 1 x RJ45 Port |
Reset | 1 x LED’s | |
Default | 1 x LED’s | |
Video resolution | 2048 x 1536(max) | |
Power | DC9V 1000mA | |
Operating temperature | -10˚C~50˚C | |
Storage temperature | -20˚C~60˚C | |
Housing | Metal | |
Weight | 2.94 Kg | |
Dimensions(L x W x H ) | 432 x 155 x 44 mm | |
Order information
Model NO. | Description |
WB-KS-3104 | Rack mountable KVM switch, 4 Cat5e port |
WB-KS-3108 | Rack mountable KVM switch, 8 Cat5e port |
WB-KS-3116 | Rack mountable KVM switch, 16 Cat5e port |
WB-KI-3104 | Rack mountable KVM switch, 4 Cat5e port with remote control |
WB-KI-3108 | Rack mountable KVM switch, 8 Cat5e port with remote control |
WB-KI-3116 | Rack mountable KVM switch, 16 Cat5e port with remote control |
WB-AS-9104 | Rack mountable KVM switch, 4 VGA port |
WB-AS-9108 | Rack mountable KVM switch, 8 VGA port |
WB-AS-9116 | Rack mountable KVM switch, 16 VGA port |
WB-AI-9104 | Rack mountable KVM switch, 4 VGA port with remote control |
WB-AI-9108 | Rack mountable KVM switch, 8 VGA port with remote control |
WB-AI-9116 | Rack mountable KVM switch, 16 VGA port with remote control |
