| Model: | WB-CA-30 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS |
| Fan speed: | 2650/2950RPM |
| Airflow each fan: | 87/108CFM |
| Noise level: | 52/46dBA |
| fan size: | 120*120*38 mm |
| Fan voltage: | 110V or 220V |
| powder Lead: | 1.5M length with plug |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Production Capacity: | 10000 units per month |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | Cartons |
| MOQ: | 50 Piece/Pieces | Delivery Date: | 20 days |
| Means of Transport: | Land, Ocean, Air | ||

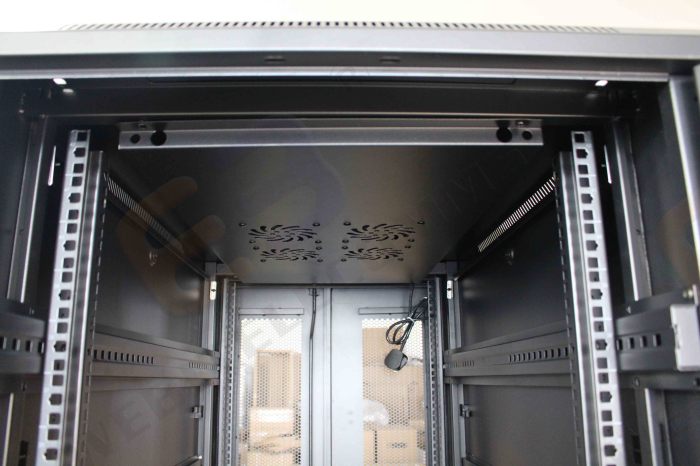

Network cabinet used fan tray
Oiliness fan as standard , Ball bearing fan optional.
| Model | Type | Volt | Fre | Current | Consumption | Speed | Air-flow | Air pressure | Noise | |
| Sleeve | Ball | VAC | Hz | Amps | Watts | RPM | CFM | inch-H2O | dBA | |
| 12038-110S | √ | 115 | 50/60 | 0.21/0.18 | 20/18 | 2550/2700 | 80/98 | 0.25/0.3 | 43/48 | |
| 12038-110B | √ | 20/18 | 2600/2800 | 82/100 | 0.26/0.32 | 34/39 | ||||
| 12038-220S | √ | 220-240 | 0.12/0.11 | 20/19 | 2550/1700 | 80/98 | 0.25/0.3 | 43/48 | ||
| 12038-220B | √ | 20/19 | 2600/2750 | 82/100 | 0.26/0.32 | 34/39 | ||||
Application
1, Fan tray with 2 fans

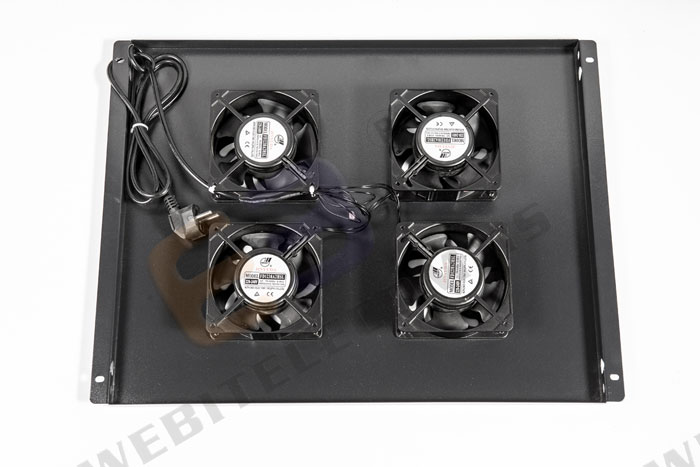

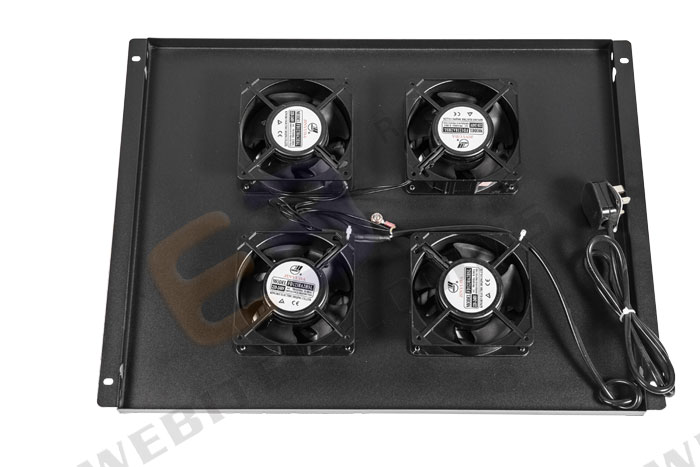

2, Fan tray with 4 fans
3, Fan tray with 6 fans
4, Fan tray with 8 fans
----------
Fan tray size: as per rack's depth : 600/800/1000

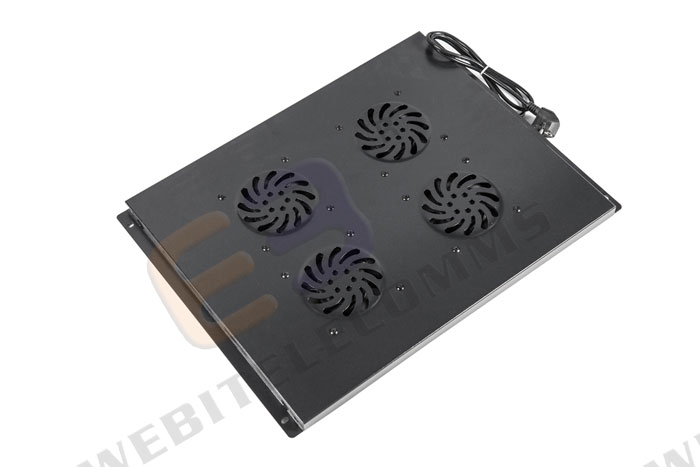

Standard fan tray

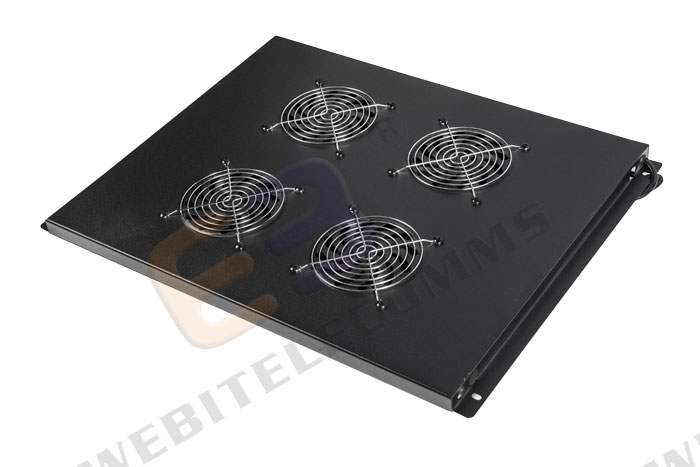

Fan tray with finger guard

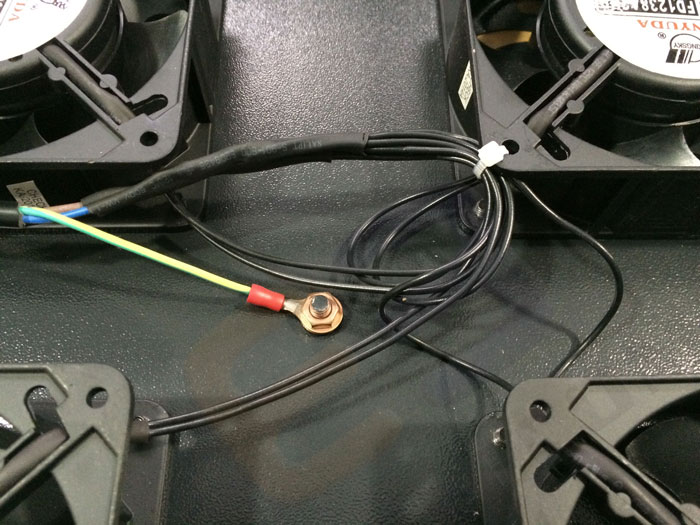

Earthing cable

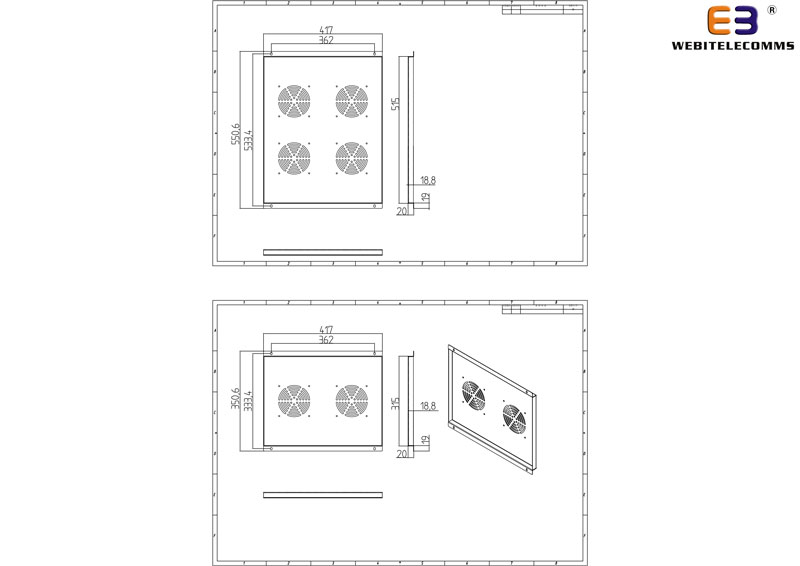

Drawing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
Q: Can I require it separately ?
A: Sure you can, while it's only for our cabinet ; If for other supplier's cabinet, perhaps it will not fit.
Q:Can we use this on wall mounted cabinet ?
A:No it can not , or we can use 1U fan unit to instead.
Q:We need the fan tray with low noise
A:Ball bearing fan comes with low noise, you may cost a little more to have them.
Q:I want some metal fan guide on them, is it ok ?
A:Yes, metal fan guide is available, just please let us know before order.
