WB-CA-26
| Model: | WB-CA-26 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Materials: | zinc alloy or PA |
| Dimensions: | 160*41 mm |
| Color: | Natural color or black |
| Application: | All of Webitelecomms cabinet |
| Fit for door thickness: | <35 mm |
| Accessories: | Equip with key |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,FCA,EXW | Production Capacity: | 10000 units per week |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | cartons |
| MOQ: | 100 Piece/Pieces | Delivery Date: | 15 days |
| Means of Transport: | Land, Ocean, Air | ||

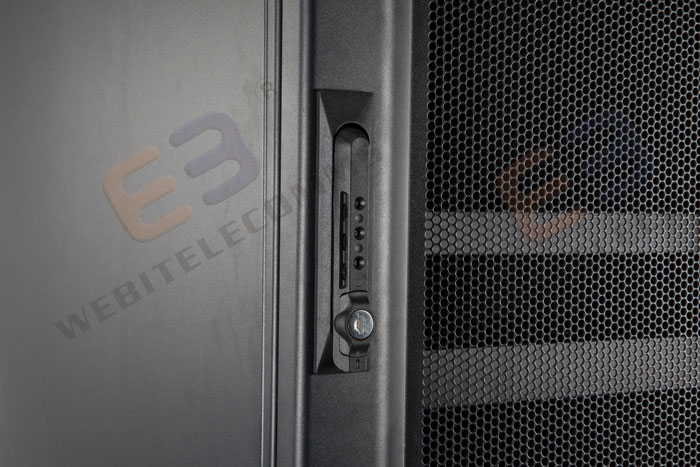

Network cabinet using swiveling coded lock
Cabinet panel handle code lock
1) Material: zinc Material and black nylon housing,handle,Turn button,zinc plated steel cover and cam
2) Surface finish: matte black, pocked black
3) Function: sealed waterproof lock with six cores selected, for both left and right hand opening
4) Industry application: electronic enclosure, furniture, networking, telecom,vending machine, wall-mounting box, panel box, outdoor cabinet
Item | Specifications |
Main Material | 4# Zinc Alloy, PA body |
Finish | Chrome,Plastic Spraying ,Paint Spraying; specific color see color chip. the lock cam and accessories blue-white zinc plated(salt spraying test 24 hours). |

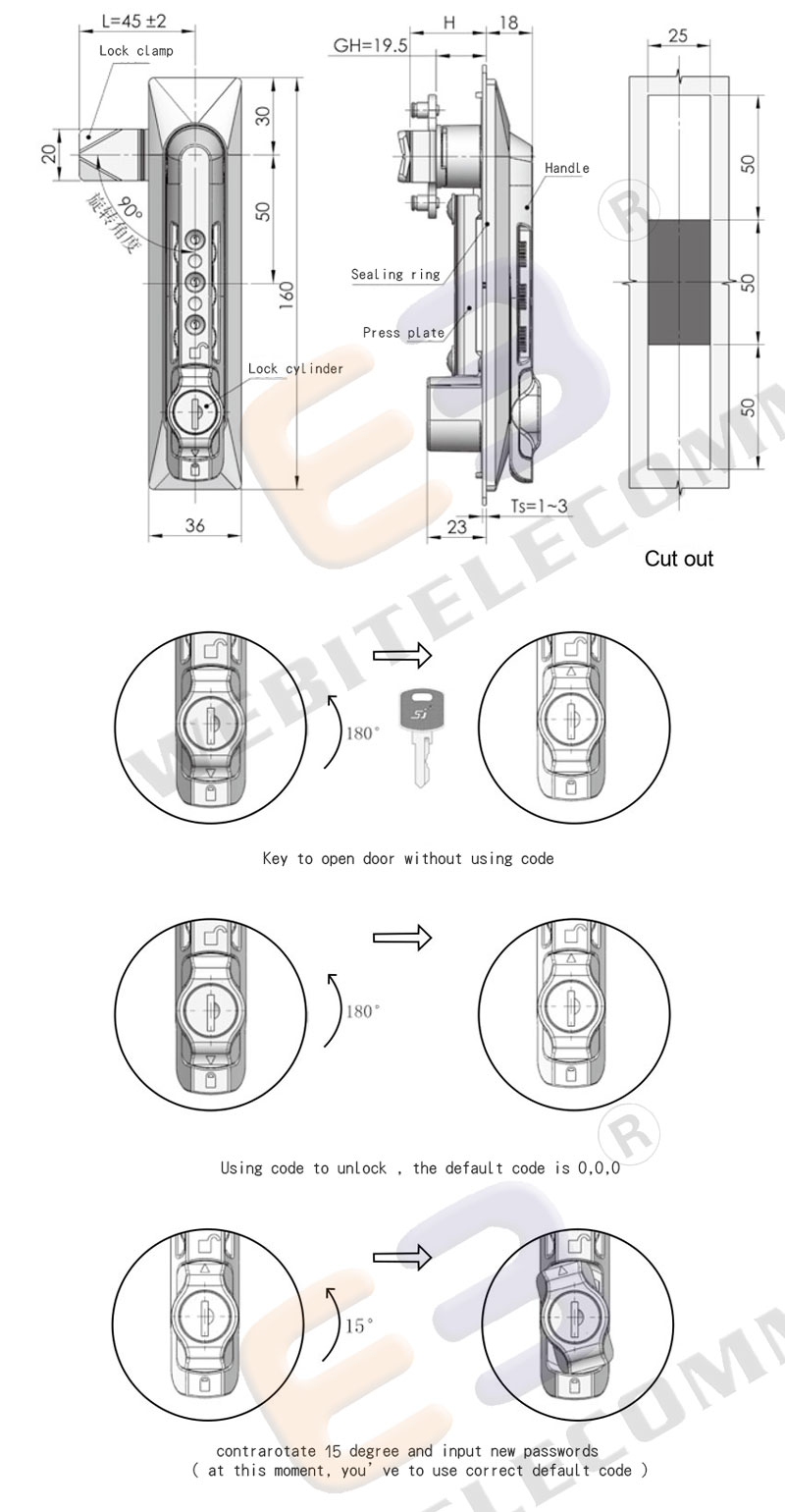

Function and Application | Right rotate handle 90 degrees open.Gear drive the rod to achieve left and right open the door. Put his hand up,quick opening |
Notes | The key,lock cam select please see the accessory catalogue in details. |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
