WB-TV-MF816

Model:WB-TV-MF816
Place of Origin:Zhejiang,China (Mainland)
Screen Size:22-42Inch
Max Load:45kgs/99lbs
Mounting Pattern:400*400
Color:Black or Silver
Profile:7.8-24.5cm
Tilt Range:-15~15degrees
Pan/Swivel Range:up to 135°
Material:Cold Rolled Steel


Product Description

Payment & Shipping TermsSupply Capacity
Payment Terms:L/C, WU, D/P, T/T, D/AProduction Capacity:500
MOQ:50 Piece/PiecesPacking:Carton Size
Means of Transport:Land, Ocean, AirDelivery Date:20


22-42 Inch made 100 cold rolled high grade steel+wall mount holder TV




1. The WB-TV-MF816 is a universal led tv wall mount bracket designed to fit a wide range of TVs between 22" and 42".

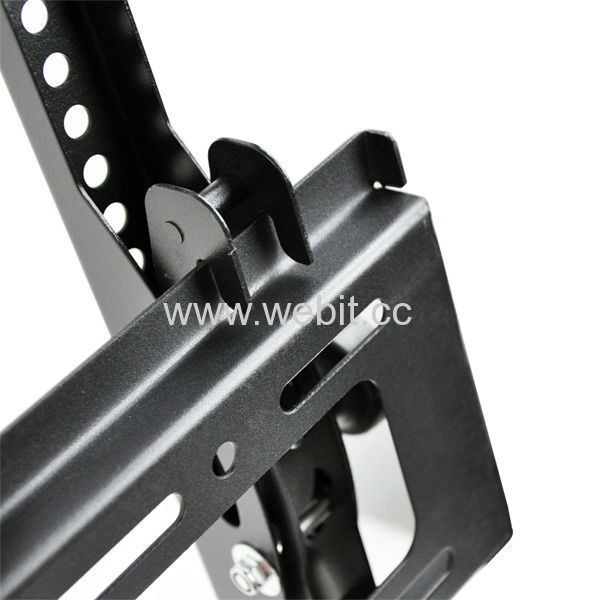

2. A tilt function makes it ideal for where the TV has to be mounted higher than usual

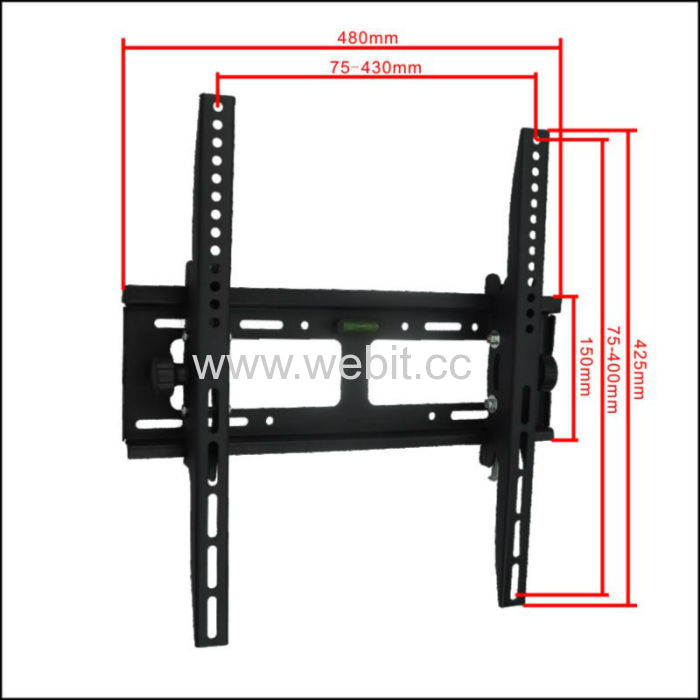

3.   This bracket supports all VESA configurations from 100x100 to 450x430.  As a fully universal bracket, it also supports all measurements in between (i.e, 200 x 200)

4. The bracket has a depth of 70mm.

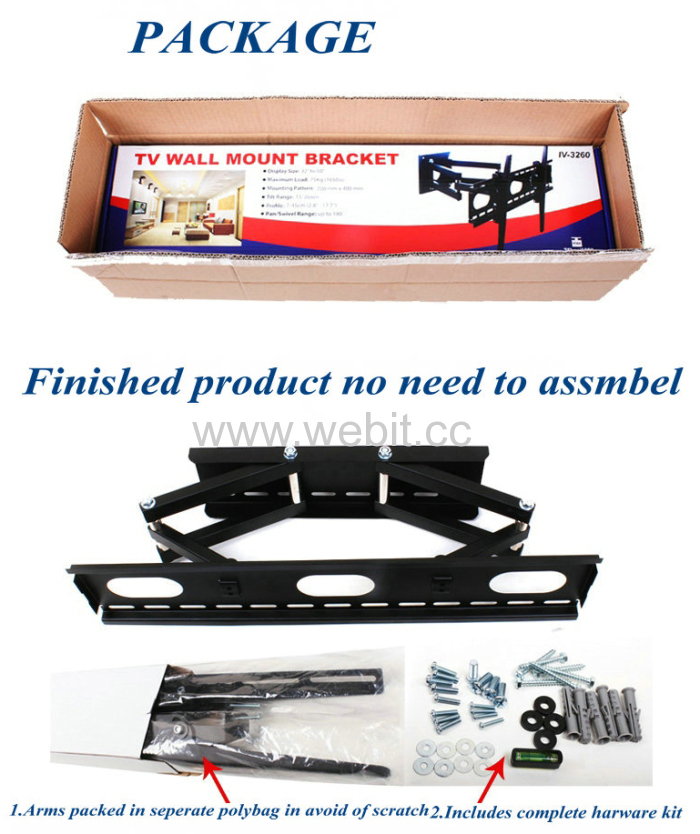

5. We include all screws & fixings required to mount your TV .



Mount Type

    Wall Mount Holder TV

Mounting Pattern:

Universal

Product Category:

TV Mount

VESA Compliant

Yes

VESA 200 x 200

Yes

VESA 400 x 200

Yes

VESA 400 x 400

Yes

Supports Non VESA

Yes

Fits TV Brand Options:

LG, Panasonic, Samsung, Sharp, Sony, Vizio

Intended TV Type Options:

LED, Plasma / LCD Flat Panel

Screws

Included

Bubble Level

Included

Hardware

Included

English Manual

Included

Wall Plate

Most Wall

OEM Packing

Available




1. Hole Pattern Coverage Up to 440*410mm Including VESA 100*100, 200*100, 200*200, 300*300, 200*400 and 400*400

2. Stronger (Dual Hook) Less Metal Green Design Supports 45kgs/99lbs with Less Than 5lbs of steel

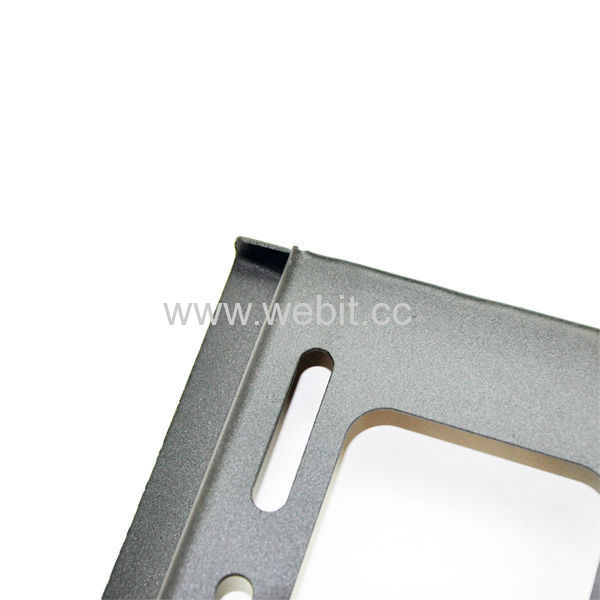

3. All Mount Piecesare made from 100%Cold Rolled High Grade Steel

4. Flush Position is only 2.75inch/70mm From the Wall While Mount Tilt Up to -15~+15 Degrees
