WB-OD-Y
Model: | WB-OD-Y |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitlelecomms |
Material: | Galvanized steel sheet |
Protection Rate: | IP65 |
Type:: | Network Cabinet |
External Size: | 800x700 37U |
Workmanship: | double wall panel,19'' installation for devices |
static loading: | 1400kgs |
Fans: | 2-4 |
Delivery: | 20-25days |
Certificate: | CE, ISO, RoHS, SGS |
Product Description

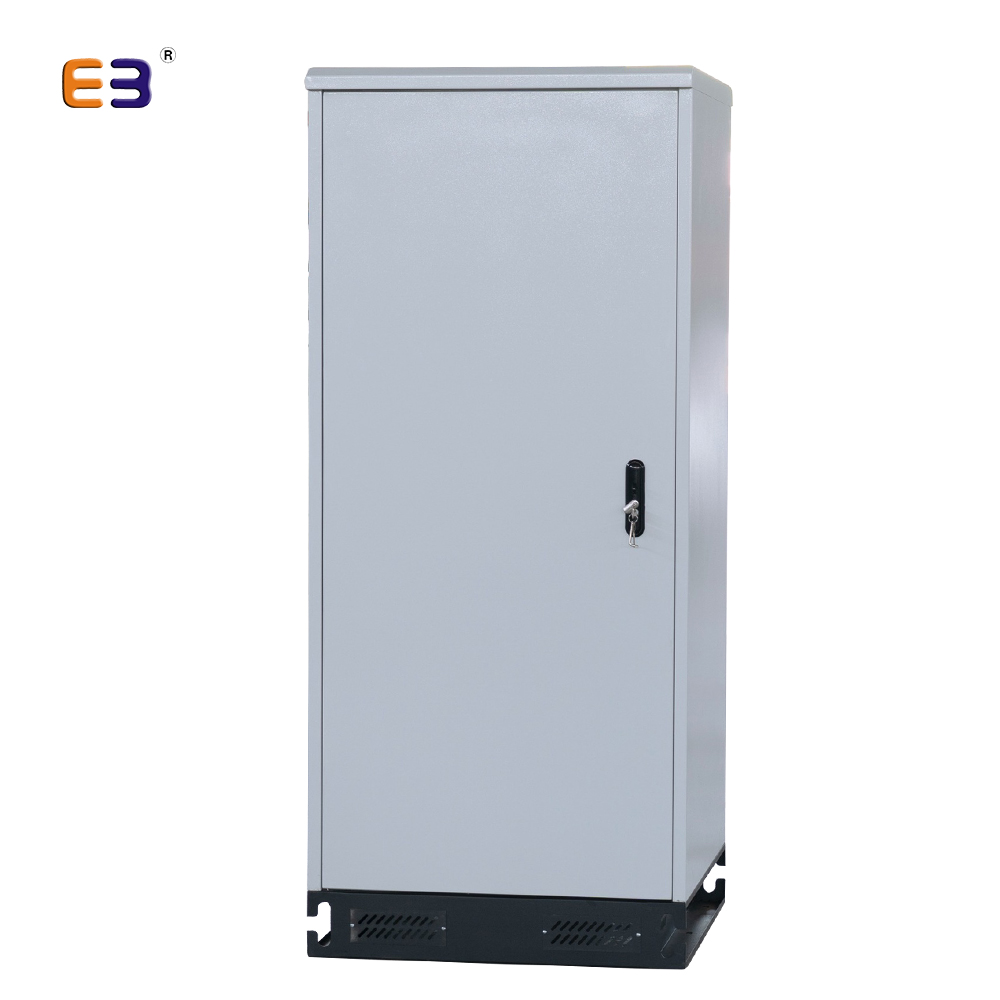

Webitelecomms OEM waterproof UPS battery cabinet
The IP Code reflects the degree of protection as "IP" followed by two numbers;
the first digit shows the extent to which enclosures are protected against particles/dust, and protection to others from enclosed hazards.
The second digit indicates the extent of protection against water.
We carry IP65 enclosures which offers complete protection against particles/dust, and a strict control of protection against water. Because all of our enclosures strictly observe the standards, you can expect first-rate and competitively-priced outdoor enclosures.
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Webitlelecomms Weatherproof Enclosures have the solution for products in industrial environments with high demands on safety, durability, reliability and cost saving for the end user.
• Safety - tested and approved by third party testing laboratories.
• Durability - materials used give a high durability in tough conditions and environments.
• Reliability - high quality contacts ensure reliability. (IP55 or higher)
• Cost saving - designed for quick and easy installation.
• Construction - Body and door/cover are formed from 16 or 18 gauge cold-rolled steel. (1.0/1.2mm)

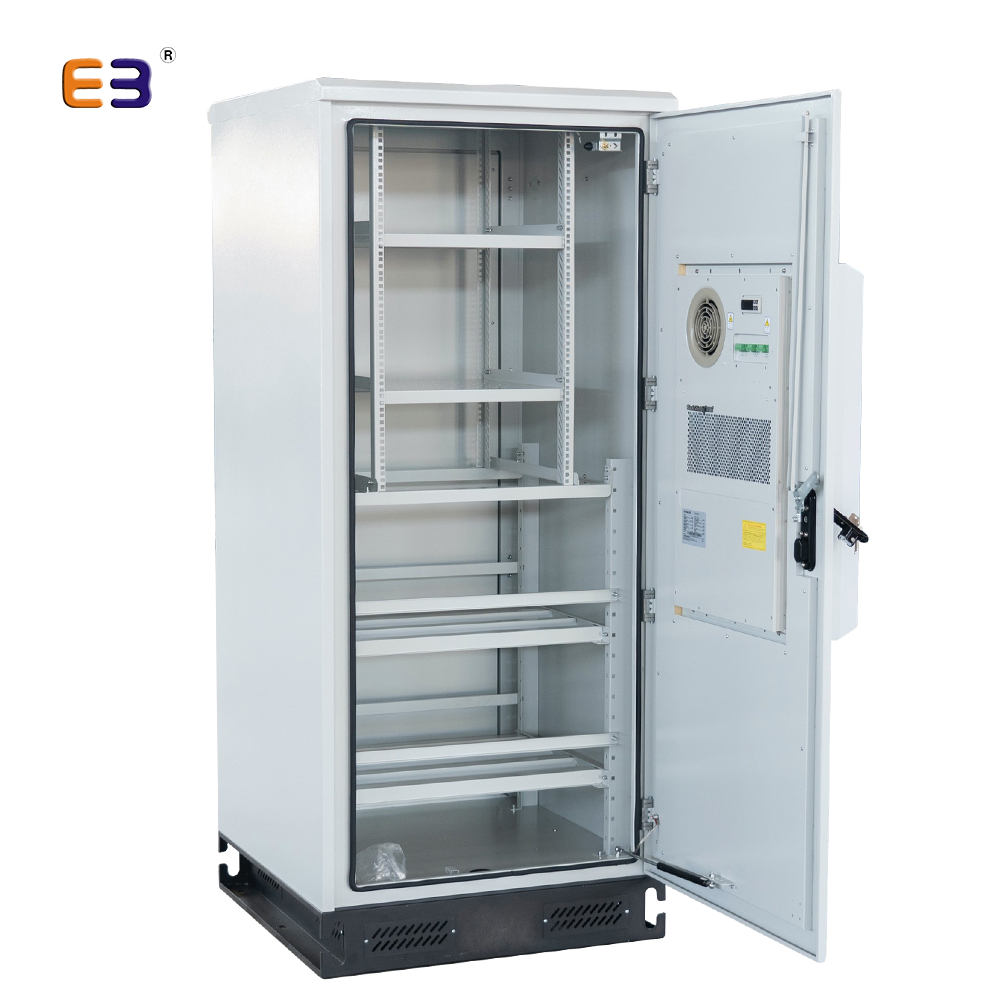

- w/ removable inner door are formed from sheet steel, depth adjustable
- Removable inner panel is formed from 14 or 16 gauge galvanized sheet
- Grounding and panel mounting hardware provided.

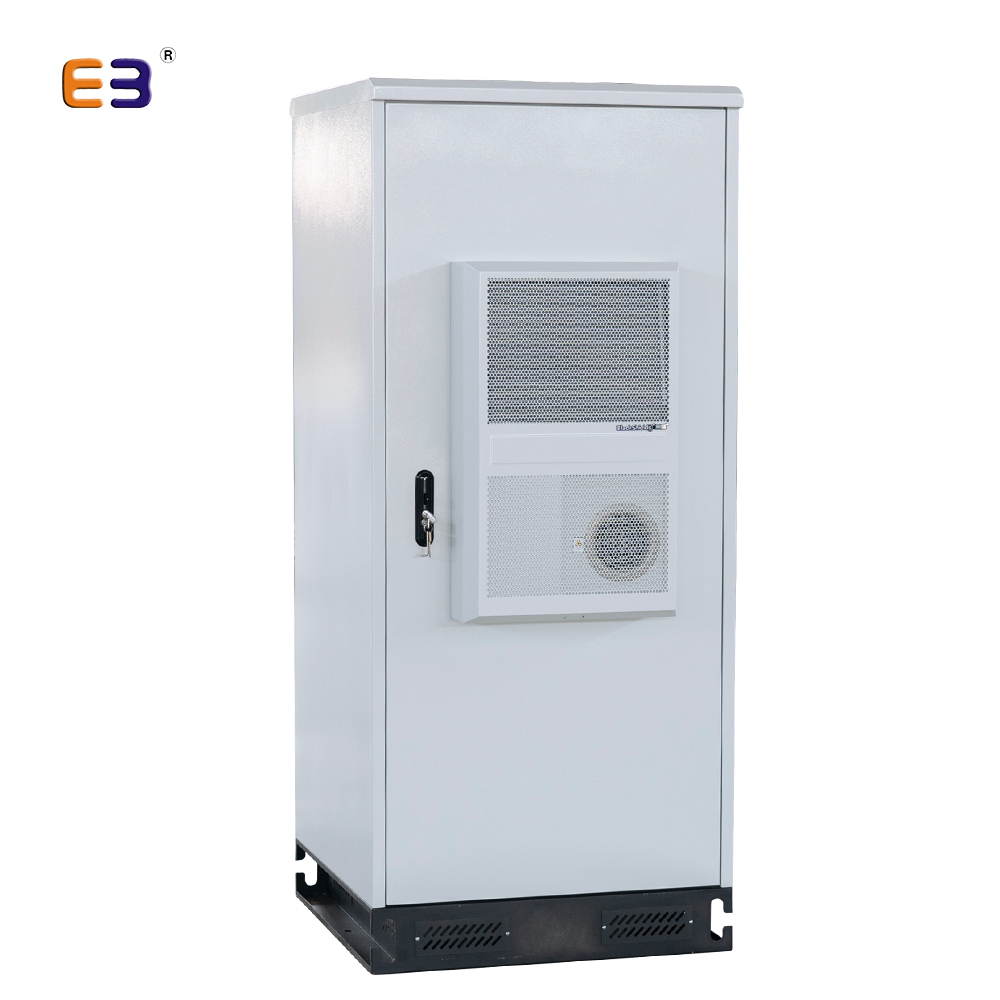

- Lockable front door installed with air-conditioner / Exchanger
- Strong double wall type framework
- 19" galvanized/powder coated mounting profile for device installation
- Plinth design , bottom panel cable entry, can be perfectly fix to floor

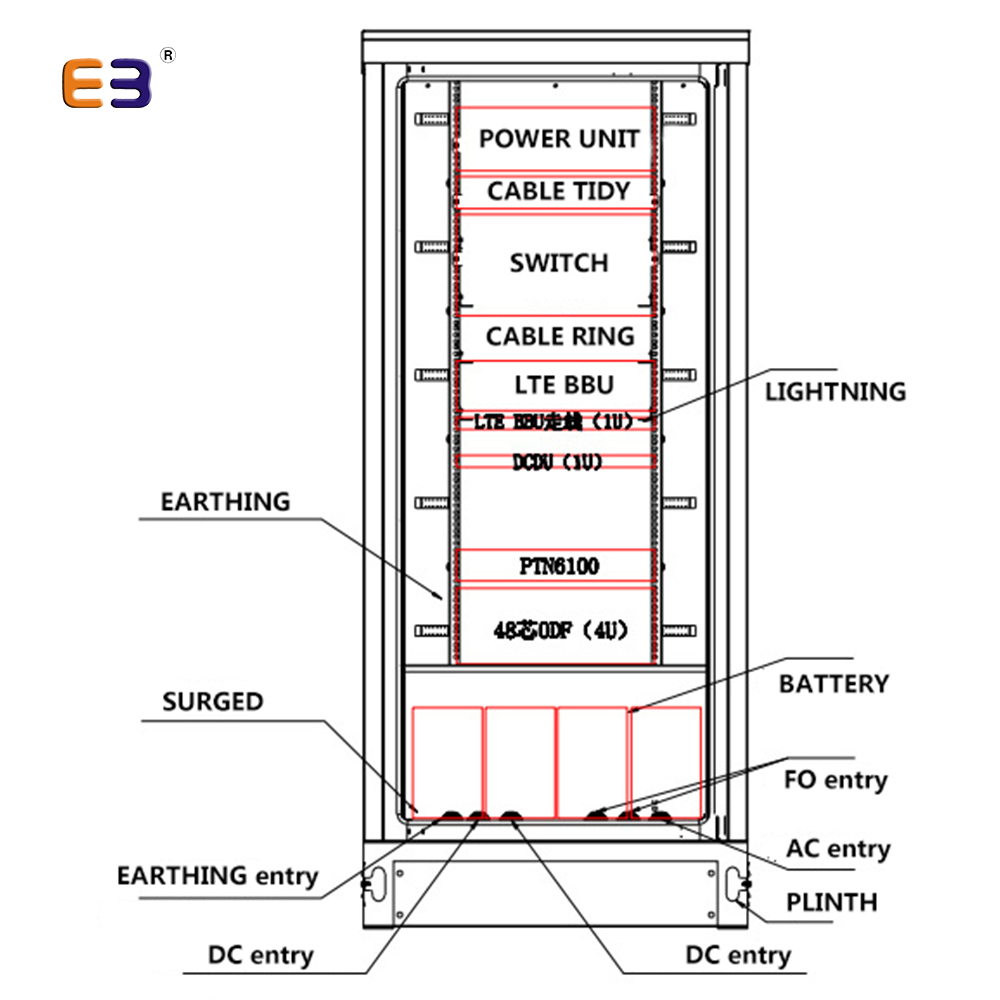

- Inner body can be splitted into different rooms - upon function
- Several lockable wiring holes on bottom, size of the large hole at the bottom adjustable
- Varies specification upon customers' special requirements
- peripheral is optional [ lighting system,smoke alarm,temperature sensor etc..]
MAKE TO ORDER service. below size is suggested for choose.
Width: 800 mm or customized
Depth: 700 mm or customized
Height: 12U, 17U, 22U, 27U, 32U, 37U
Standard and Material:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:SPCC cold rolled steel or Zinc-plated plate or stainless steel
Thickness:Mounting profile:2.0mm,others: 1.20~1.50 mm
IP degree: IP-55 or IP-65
Body color:RAL7035
Environment conditions:
Temperature: -40°C ~+ 60°C
Relative Humidity: ≤95% (at 40°C)
Atmospheric pressure : 70kPa ~ 106kPa
Technical Specifications:
The protection grade reaches IP55.
Working with wavelength of 850nm, 1310nm and 1550nm.
Pressurization between the frame high voltage protection earth device and the frame: ≥3000V (DC) / 1 minute without any breakdown or flashover.
Insulation resistance between the frame high voltage protection earth device and the frame: ≥20,000M Ω/ 500V (DC).
Each surface of the cabinet can bear a vertical pressure over 980N.
The outermost part of the door can bear a vertical pressure over 200N when the door is open.
The fixing position of cable can bear an axial tensile force 1000N, as well as three times of recyclable torsion of ±90°.
Mechanical durability: No damage for all connectors and adaptors after 500 mating times.
WebiTelecomms Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm GE steel | Powder coating | |
2 | Front Door | 1 | 1 | 1.5mm GE steel | Powder coating | double wall type |
3 | Side Door | 2 | 2 | 1.5mm GE steel | Powder coating | unremovable |
4 | Back Door | 1 | 1 | 1.5mm GE steel | Powder coating | double wall type |
5 | Lock | 2 | 2 | Zinc alloy steel | - | Handle Lock |
6 | Roof | 1 | 1 | 1.5mm GE steel | Powder coating | |
7 | Cabinet fix tray | 1 | 1 | 1.5mm GE steel | Powder coating | optional |
8 | Fan unit | 1 | 1 | - | Powder coating | |
9 | A/C conditioner | 1 | 1 | 500-2000W AC | - | OPTIONAL |
10 | Bottom panel | 1 | 1 | 1.5mm GE steel | Powder coating | |
11 | Earthing bolts | 1 | 1 | Copper | - | |
15 | Roof | 1 | 1 | 1.5mm GE steel | Powder coating | Can be Blue |
16 | 19inch rails | 4 | 4 | 2.0mm GE steel | Powder coating | |
17 | Door alarm | 1 | 1 | - | - | Standard |
Materials | Galvanized Sheet , stainless steel(201/304/316) |
Thickness | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm and etc are all available to be designed for the material used |
Processing | Laser cutting, CNC punching, CNC bending, welding, stamping, etc |
Surface treatment | Painting, Plasma electrostatic painting, hot galvanized, powder coating, polishing, brushing, cataphoresis, etc |
Certification | CE, ROHS, SGS, ISO, REACH |
Deliver time | 30 days after deposit received |
Files available | Solid works, Auto CAD, PDF |
Brand | WebiTelecomms |
IP | IP55,65&66 |
Water-proof | 0.2Mpa,10mm/min,30min,Endure water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min) No leakage inside |
Main customers | Domestic , Middle East , North European, Africa |
Application fields | Used for installing storage battery and 19inch, 21inch, 23inch and etc equipment. |
Type | AC cooling Fan | Heat-exchanger | Air-conditioner | TEC |
Structure | The structure can be designed to satisfied the customers' requirements |
Insulation Resistance | >1000MV/500VDC |
Withstand Voltage | >3000VDC/min and no breakdown fly arc |
Package | Package with hard paper box, Plywood box, wooden box, Fumigation wooden box sealed free from insects, Neutral packing,Bubble wrap inside package, PE,EPE carton, pallet and etc.And all of our package forms are upon customer's requests |
Contract Manufacturing | OEM Service, Design Service, Buyer Label Offered |
Rev. Stop temp. of air-con, fan/heat-ex | All the temp. could be designed to satisfied the customers' requirements |
Installation Method | Complete module installation(Overhead laying, piper laying, direct burying) |
• This product is fully in accordance with CE & RoHS.
