WB-4U650A
Model: | WB-4U650A |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Dimensions: | 650*430*177MM |
Materials: | Zinc plated steel |
thickness: | 1.2mm |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
---|---|---|---|
Unit Price: | 1.0~100.0 USD | Production Capacity: | 4000pcs/month |
Trade Term: | FOB | Packing: | cartons |
Payment Terms: | L/C, WU, T/T | Delivery Date: | 10 Days |
MOQ: | 50 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air |

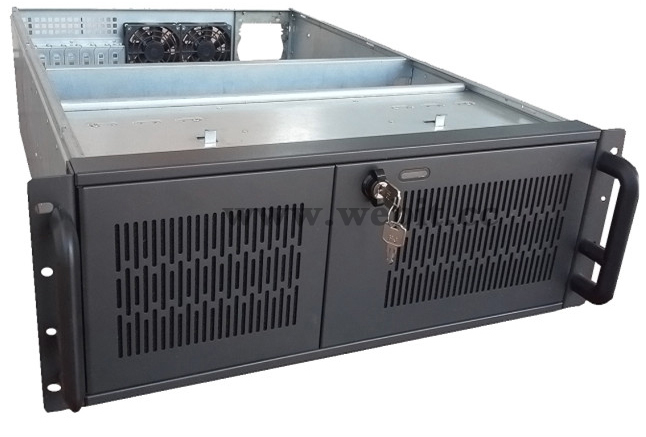

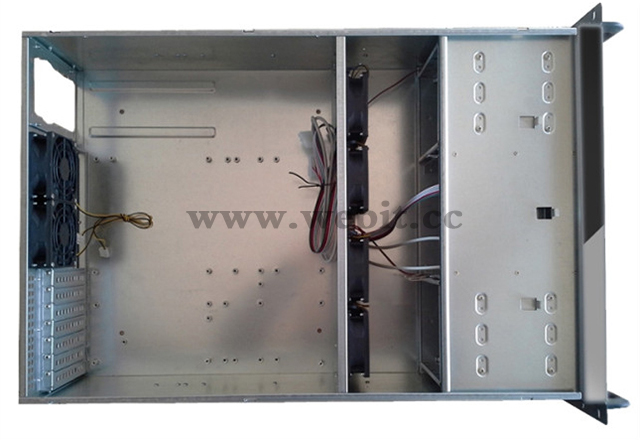

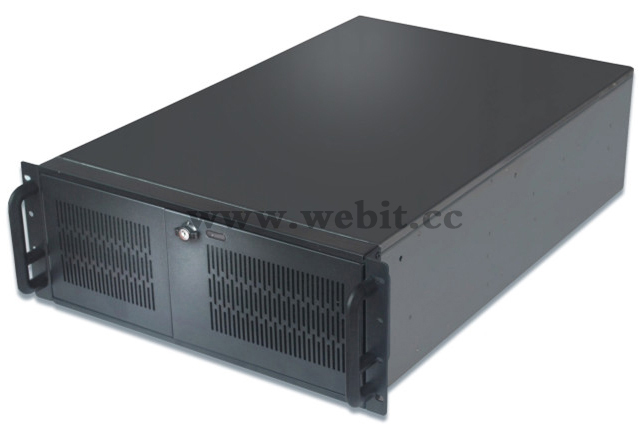

650 depth 4U computer case
Features
Compact size to save space, Depth=450mm
8 × HDD(3.5") slots, 2 × HDD(2.5") slots, 3× CM-ROM slots
6 × 8cm AC fans + 2 × 12cm AC fan
fit for common power
2 x USB2.0 in front
Perfectly fit for 900mm depth rack
Specification
Dimension (WxHxD) | 19" 450*650*178MM |
Material Construction | Zinc plated steel, Thickness:1.2 mm |
Expansion | 8 slots rear side ATX |
M/B Size | 12"x9.6" |
Control & Indicator | 1x Power switch +1x Reset switch 1 x LED (power) +1 x LED (HDD), 1 x LED (KB-LK) 2 x 2.0 USB |
Cooling Fans | 6× 8cm AC cooling Fans + 2× 12cm AC cooling fan |
Drive Bay | 8 x 3.5" (internal) + 2 x 2.5" (internal options) 1 x 5.25" |
Power Supply | Standard PS-2 ATX or PS-2 size Mini-Redundant Power supply 200w~550w |
Sliding rail | 18"2 ball bearing sliding rail (option) |
Color | Black or Beige |
Operation Temperature | Up to 50C° (122°F) |
Operation Humidity (Non-condensing) | Up to 90% |
Packing Measurement CBF / CBM | 4.31 / 0.116 |
Packing N.W / G.W | 15KGS /16KGS |
Packages
