WB-PP-312-6AFCP-24F
Model: | WB-PP-312-6AFCP-24F |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Certificate: | CE ,ISO, ROHS |
Main export Area: | Dubai, Europe, Australia, USA |
Pro Name:: | CAT6A Patch panel |
Ports: | 24 ports |
Shielded: | FTP |
IDC: | 110/Krone/ Dual IDC for choose |
Windows Mark label: | yes |
Number Mark: | Label marking |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Payment Terms: | L/C, T/T | Production Capacity: | >5000 pcs |
MOQ: | 100 pc | Packing: | box |
Means of Transport: | Land, Ocean, Air | Delivery Date: | 25 DAYS |
Cat.6A Electronic Shielded Patch Panel
Products Describe:
19" standard size for mounting into server racks and network cabinets
This patch panel is designed for 22-26 AWG solid conductors
1U Height (24 ports) with screws covered
Electronic patch panel which special design for 6A Keystone interface module
Easy to take down the front cover from front side and maintain the sensing system.
The E-panel is with dust cover and with dis-mountable rear cable support.
With LED indicator light can indicate the status of port and link.
It can mount 4 sets module which support 6 pcs 6A data module with keystone interface to realize the intelligent management.
Material :
Housing: ABS 94V-0
IDC: PC UL94V-0
PCB: FR-4 1.60 mm (0.06") thick, 2 layers .
Contacts: 0.35 mm (0.014") phosphor bronze with 1.27 micron (50 microinches) gold plating on contact area
Metal housing: 1.50 mm thick metal.
Construction characteristics:
Color marking of conductors according to T568B and T568A
Numeral marking of ports on the front side of the panel
Space for additional marking
Color and numeral marking of IDC modules on the rear side of the panel
IDC Dual contacts provide minimal crosstalk
110 type punch down tool is used for cable termination
Electrical characteristics :
According to UL 1863
Current rating: 1.5 A max
Voltage rating: 150 V
Contact Resistance: 20 mOhm
Insulation Resistance: 500 MOhm
Dielectric withstand voltage: 1000 V AC RMS, 60Hz/1min
Operation Temperature: -40 ~+70 degree centigrade

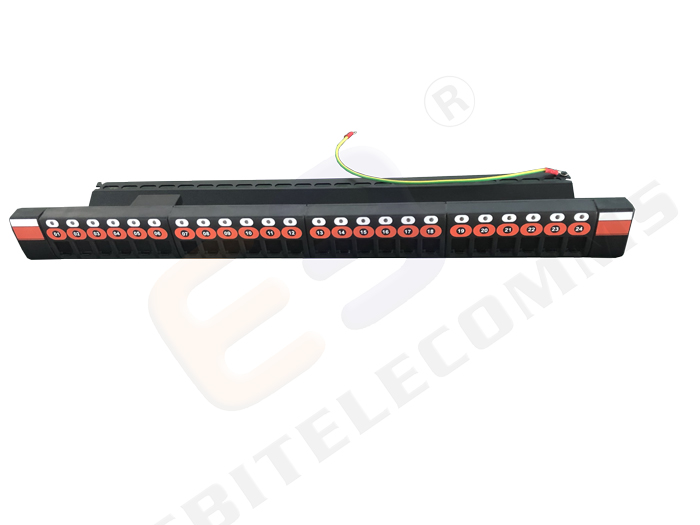

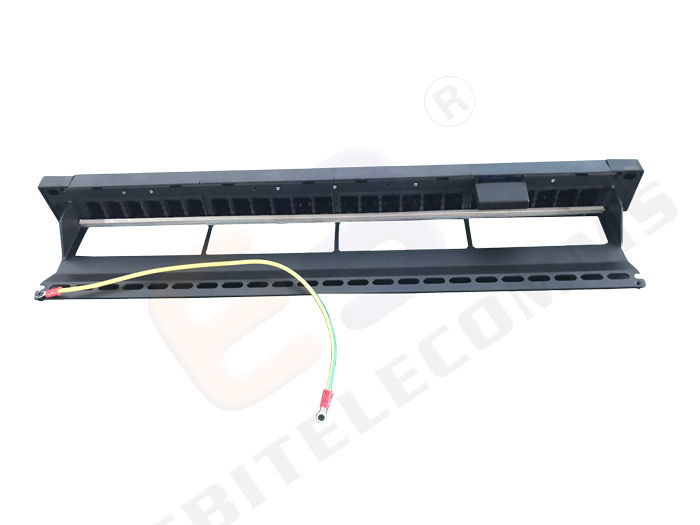

Products Picture:

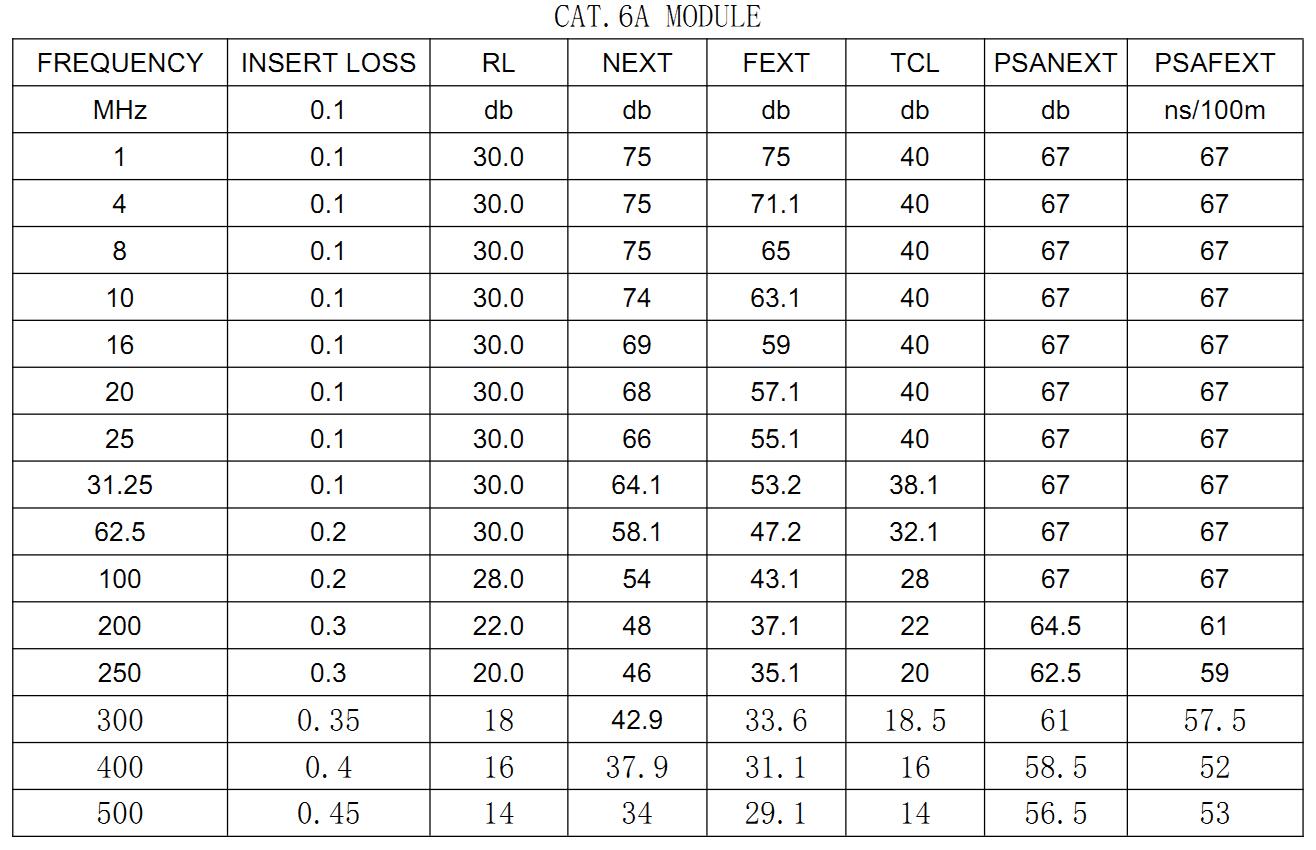

Data reference
Packaging:
1 pcs/ bubble bag or PE Bag |
1 pcs/box |
10 boxes/carton |
Carton Size: 53 X 38 X 28.5cm |
G.W.:23 kg/carton |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most
webitelecomms products is usually
5pcs, different items will be different. the MOQ will be indicated
in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
