WB-PP-43001-LG

Model:

WB-PP-43001-LG

Place of Origin:

Zhejiang,China (Mainland)

Brand Name:

Webitelecomms

Certificate:

CE ,ISO, ROHS

Main export Area:

Dubai, Europe, Australia, USA

Pro Name::

CAT6 Patch panel

Ports:

24 ports

Shielded:

UTP

IDC:

110/Krone/ Dual IDC for choose

Windows Mark label:

yes

Number Mark:

-


Product Description

Payment & Shipping Terms

Supply Capacity

Payment Terms:

L/C, T/T

Production Capacity:

>5000 pcs

MOQ:

200 pc

Packing:

box

Means of Transport:

Land, Ocean, Air

Delivery Date:

15 DAYS



UTP CAT6 24 ports colored jacks patch panel


Products Describe:

19" standard size for mounting into server racks and network cabinets

This patch panel is designed for 22-26 AWG solid conductors

1U Height (24 ports) with screws covered

Horizontal termination, tools free jacks

Colored jacks can be adjustable as per customer needs.

Back ABS wiring organiser.


Material :

Housing: ABS 94V-0

IDC: PC UL94V-0

PCB: FR-4 1.60 mm (0.06") thick, 2 layers .

Contacts: 0.35 mm (0.014") phosphor bronze with 1.27 micron (50 microinches) gold plating on contact area

Metal housing: 1.50 mm thick metal.


Construction characteristics:

Color marking of conductors according to T568B and T568A

Numeral marking of ports on the front side of the panel

Space for additional marking

Color and numeral marking of IDC modules on the rear side of the panel

IDC Dual contacts provide minimal crosstalk

110 type punch down tool is used for cable termination


Electrical characteristics :

According to UL 1863

Current rating: 1.5 A max

Voltage rating: 150 V

Contact Resistance: 20 mOhm

Insulation Resistance: 500 MOhm

Dielectric withstand voltage: 1000 V AC RMS, 60Hz/1min



Operation Temperature: -40 ~+70 degree centigrade

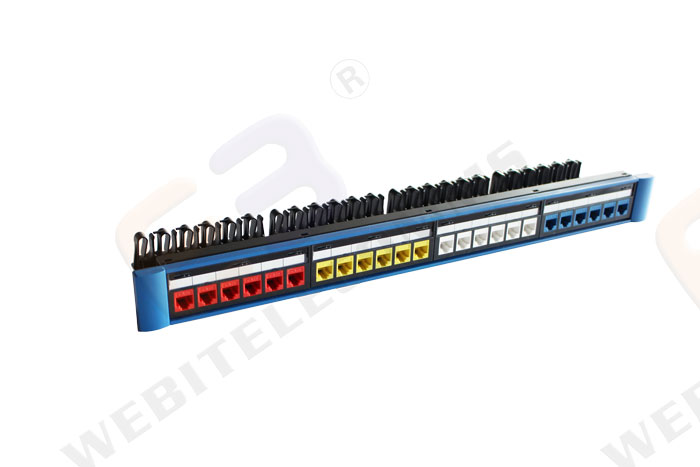

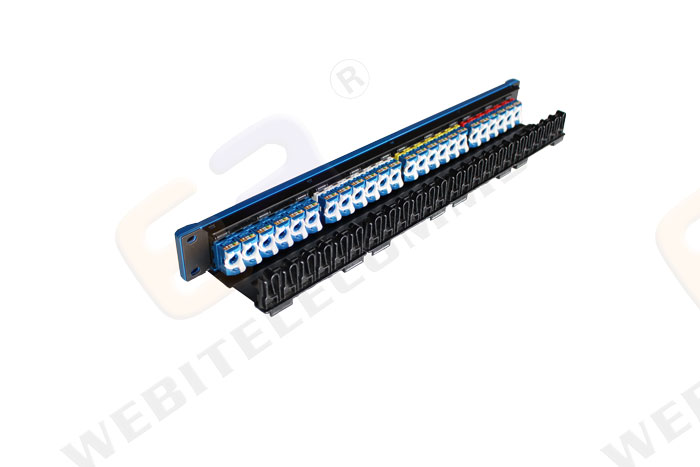

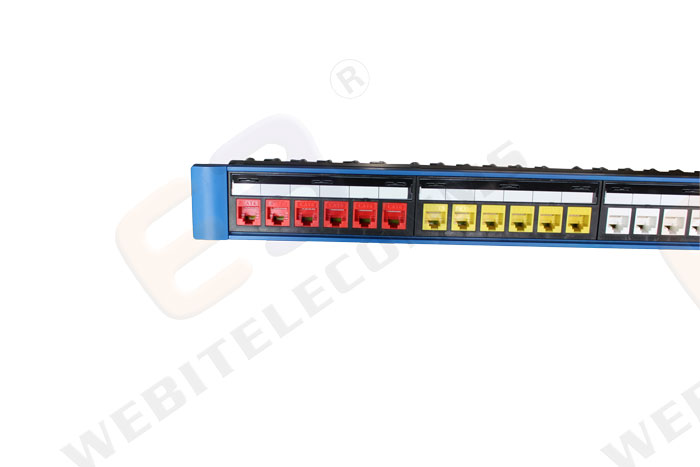

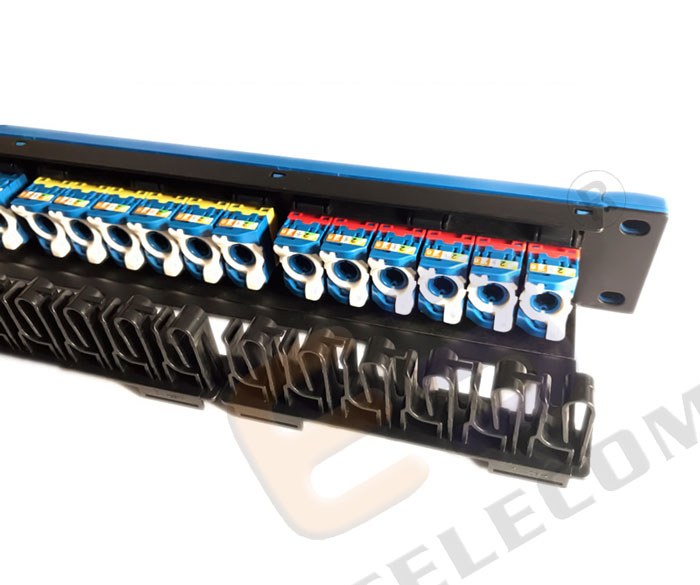

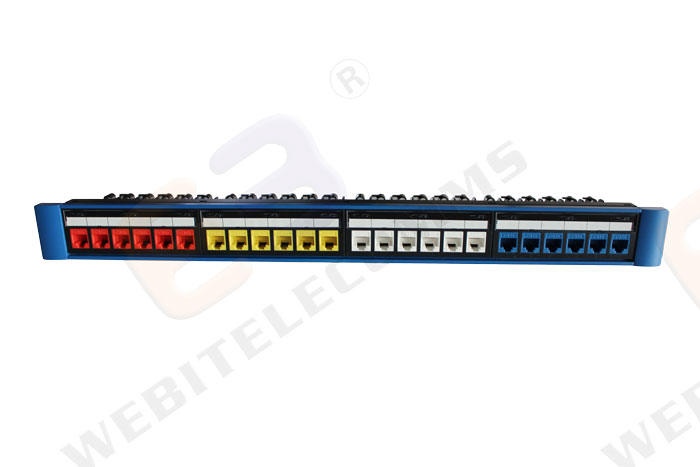

Products Picture:









Packaging:


1 pcs/ bubble bag or PE Bag

1 pcs/box

10 boxes/carton

Carton Size: 53 X 38 X 28.5cm

G.W.:25 kg/carton




=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most webitelecomms products is usually 5pcs, different items will be different. the MOQ will be indicated in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
