Model: | WB-PP-5224-C6A |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Certificate: | CE ,ISO, ROHS |
Export Area: | Europe, U.S, Mid East. |
Pro Name:: | CAT6A Patch panel |
Ports: | 24 ports |
Shielded: | FTP |
IDC: | 110/Krone/ Dual IDC for choose |
Windows Mark label: | yes |
Number Mark: | yes |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Payment Terms: | L/C, T/T | Production Capacity: | >5000 pcs |
MOQ: | 200 pc | Packing: | box |
Means of Transport: | Land, Ocean, Air | Delivery Date: | 15 DAYS |
FTP CAT6A 24 ports network patch panel
Products Describe:
19" standard size for mounting into server racks and cabinet
This patch panel is designed for 22-26 AWG solid conductors
Height: 1U (12 or 24 ports)
Material :
Housing: ABS 94V-0
IDC: PC UL94V-0
PCB: FR-4 1.60 mm (0.06") thick, 2 layers .
Contacts: 0.35 mm (0.014") phosphor bronze with 1.27 micron (50 microinches) gold plating on contact area
Metal housing: 1.50 mm thick metal.
Construction characteristics:
Color marking of conductors according to T568B and T568A
Numeral marking of ports on the front side of the panel
Space for additional marking
Color and numeral marking of IDC modules on the rear side of the panel
IDC Dual contacts provide minimal crosstalk
110 type punch down tool is used for cable termination
Electrical characteristics :
According to UL 1863
Current rating: 1.5 A max
Voltage rating: 150 V
Contact Resistance: 20 mOhm
Insulation Resistance: 500 MOhm
Dielectric withstand voltage: 1000 V AC RMS, 60Hz/1min
Operation Temperature: -40 ~+70 degree centigrade

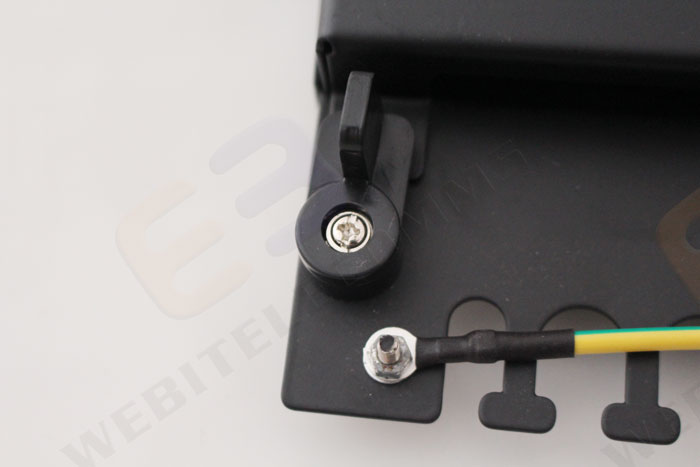

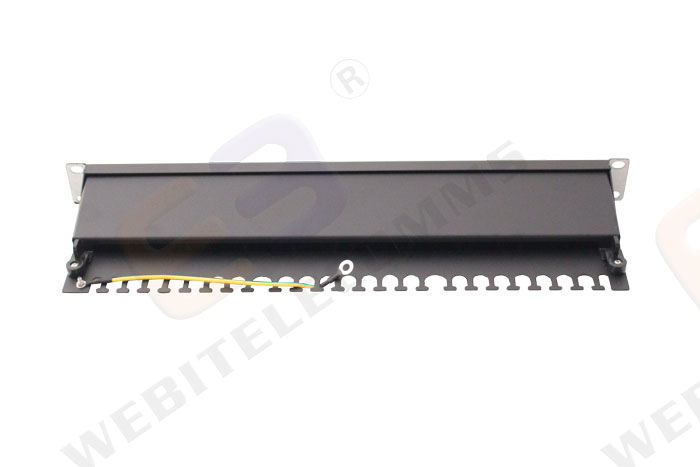

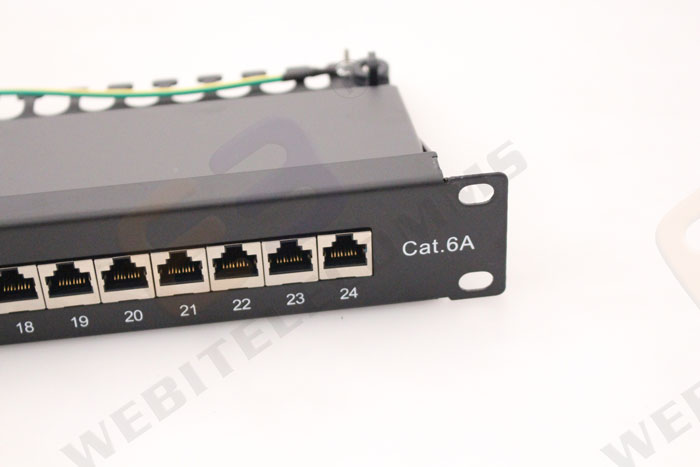

Products Picture:
Packaging:
1 pcs/ bubble bag or PE Bag |
1 pcs/box |
10 boxes/carton |
Carton Size: 54 X 28 X 28.5cm |
G.W.:25 kg/carton |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
